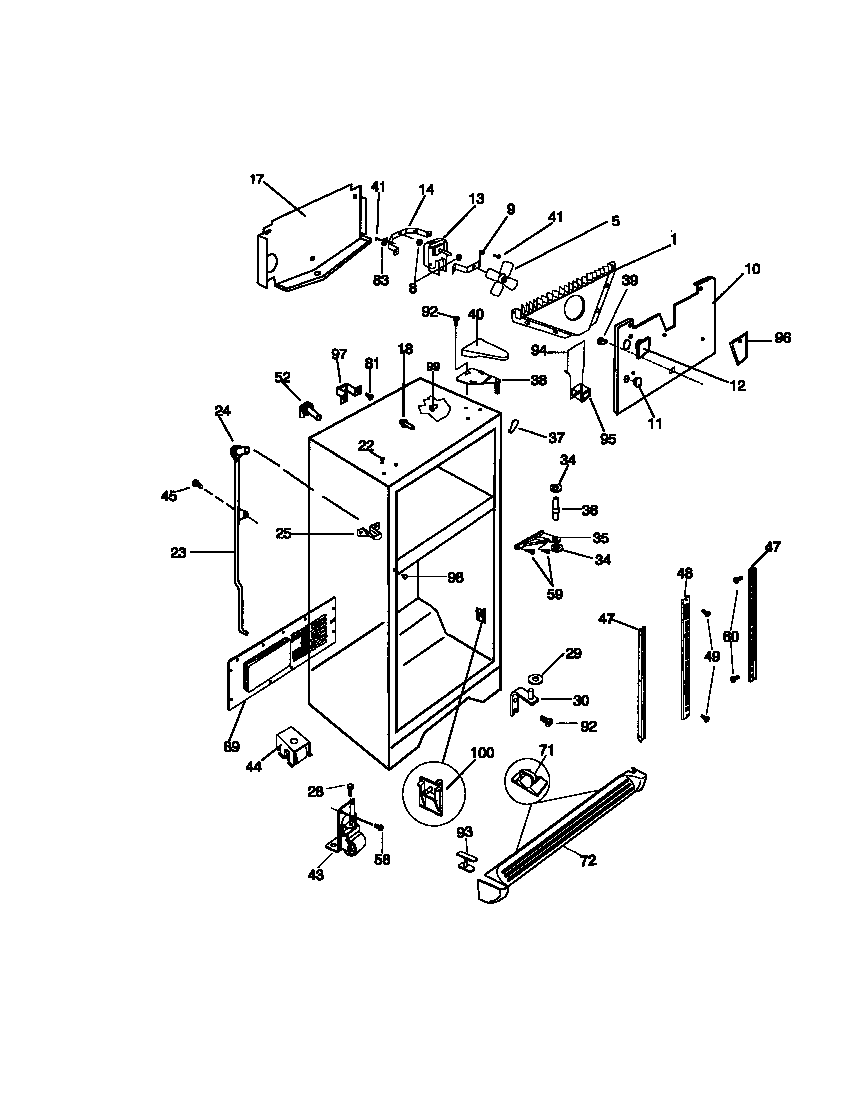

FRT24PRCD0 03 – CABINET

FRT24PRCD0 03 – CABINET

Written by

in

FRT24PRCD0 03 – CABINET

Products

PositionProduct
*60402PLUG, BUTTON, CABINET LINER (NI)
*60403TOUCH, UP PAINT, ALMOND (NI)
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303294249
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
13B215474201 Frigidaire Refrigerator Washer
13A5300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
17WCI 5303292440
18SUPPORT – EVAP COVER, (2)
22WCI 215134511
23WCI 215266301
24WCI 5303207353
25AWCI 5303292412
25BWCI 5303001361
28WCI 5303289062
29WCI 215003200
30BTAPPING PLATE, LH (NOT ILLUSTRATED)
30CTAPPING PLATE, RH (NOT ILLUSTRATED)
30AWCI 218150800
34WCI 215095400
35WCI 215002611
36WCI 215095900
37TRIM-CABINET CORNER, ALMOND
38WCI 218158000
39WCI 08006983
40WCI 5303288946
415308000039 Frigidaire Refrigerator Screw
43AWCI 5303289059
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
48WCI 5303292395
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
52BPLUG-WTR INLET TUBE
52ATUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
71218515401 Frigidaire Refrigerator Clip
72WCI 218359607
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 215176300
92241710601 Frigidaire Refrigerator Screw
93WCI 218362602
94BSEAL-AIR DUCT COVER
94AWCI 5303292669
95WCI 215931300
96WCI 215775900
97WCI 5303289299
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
99BGROMMET-SHELF MTG,.69“ LONG
99AGROMMET-SHELF MTG,1.25“ LONG
100SUPPORT-PAN COVER
