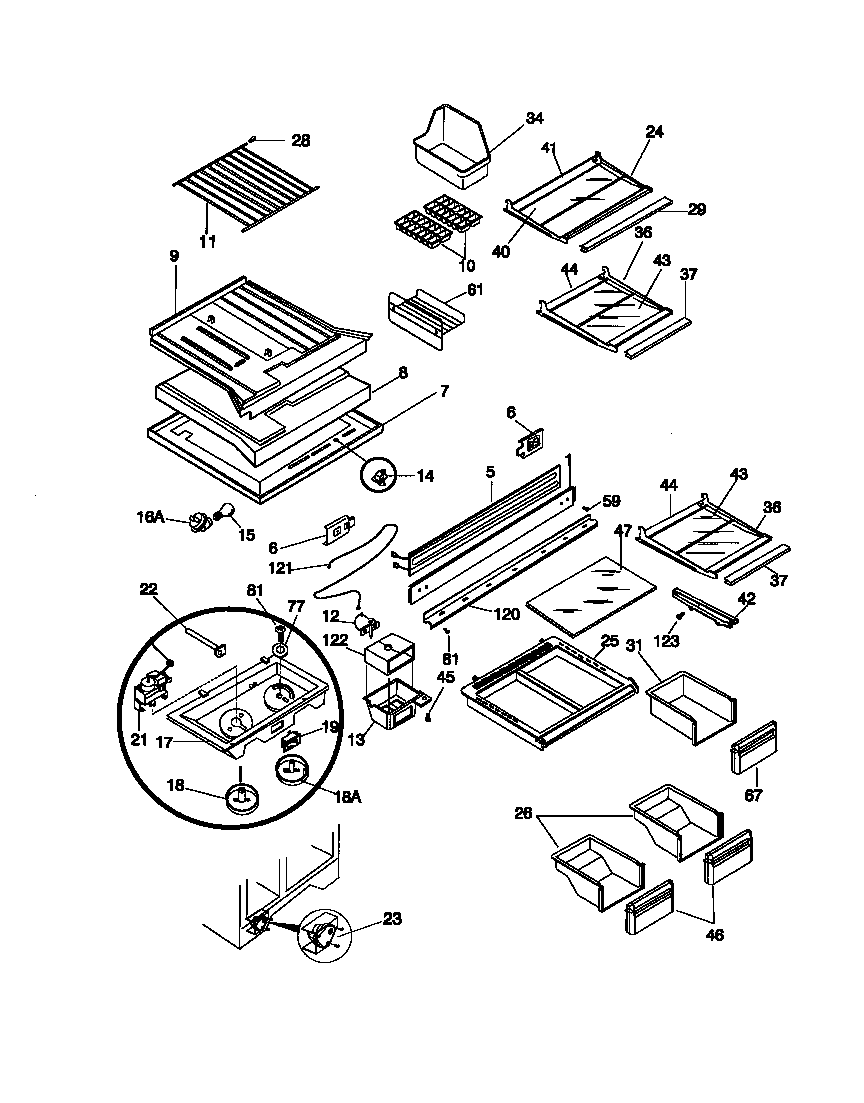

FRT24PRCD0 04 – SHELVES, CONTROLS

FRT24PRCD0 04 – SHELVES, CONTROLS

Written by

in

FRT24PRCD0 04 – SHELVES, CONTROLS

Products

PositionProduct
*60405WCI 215848000
1WCI 215002202
5WCI 215099600
6WCI 218279800
7WCI 215028104
7WCI 5303001380
8WCI 215038601
9WCI 215033800
10215667501 Frigidaire Refrigerator Ice Tray Primary
11ASPACER-FRZR SHELF
11WCI 5303304568
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
12CWASHER-AIR DEFLECTR
12BSPACER-AIR DEFLECTR
12AWCI 215132300
13BNUT, ANCHOR (NI)
13AWCI 215420300
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17AWCI 215932904
17BNUT-ANCHOR
18WCI 5303308309
18WCI 5303308310
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303292452
21WCI 5303001260
22WCI 215932100
23DSHIELD-DEFROST TIMR,BTM
23BCOVER-DEFROST TIMER, TOP
23C5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919146
25WCI 215216637
25WCI 5303310102
26WCI 5303292432
28END CAP-SHELF, PROTECTOR
29WCI 215919422
31WCI 5303292434
345303212918 Frigidaire Refrigerator Cont
36WCI 215919145
37WCI 215919429
40WCI 218498101
41WCI 215919807
42BHANGER-PAN/TRAY, RH
42AWCI 215002301
43WCI 218498102
44WCI 215919814
455304455651 Frigidaire Refrigerator Screw
46FRONT-CRISPER PAN, (2)
47WCI 218498103
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 5303310093
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
120WCI 218019202
121AWCI 215364001
121BNUT,PUSH-ON ,DAMPER CABLE
122WCI 215132501
123215005101 Frigidaire Refrigerator Screw
