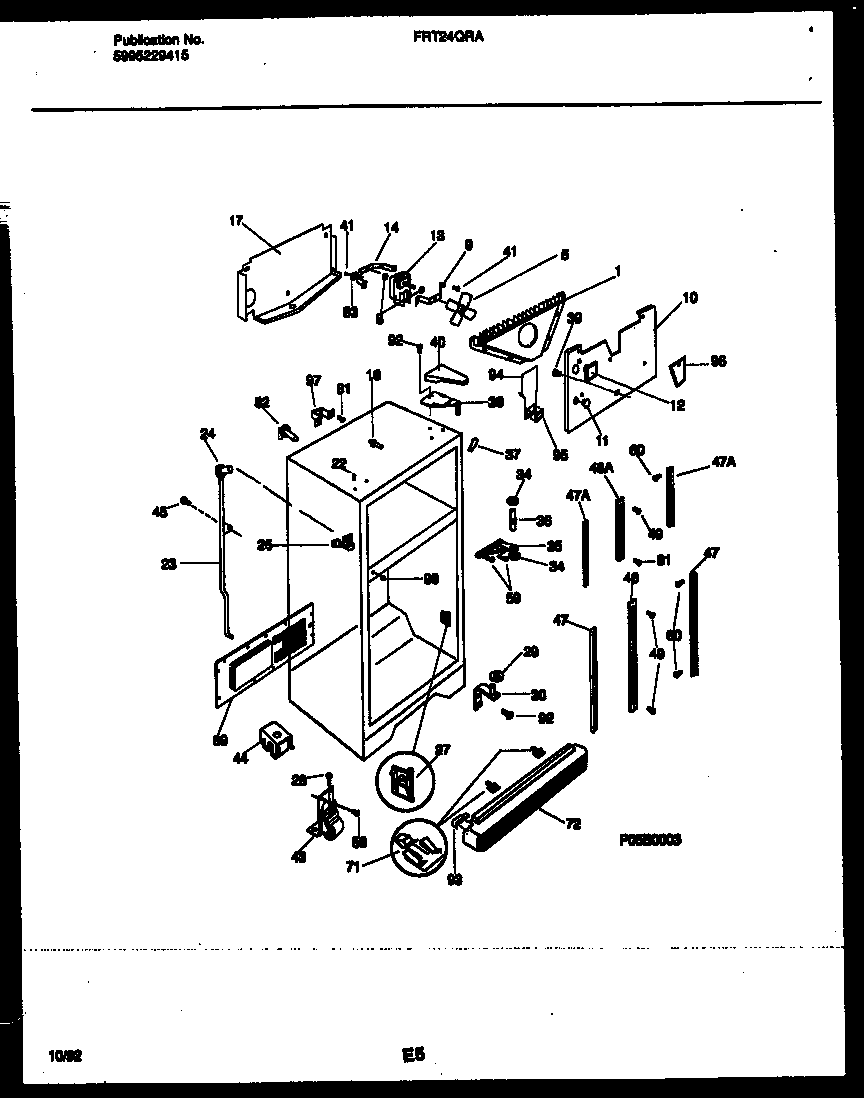

FRT24QRAZ1 04 – CABINET PARTS

FRT24QRAZ1 04 – CABINET PARTS

Written by

in

FRT24QRAZ1 04 – CABINET PARTS

Products

PositionProduct
1WCI 5303292399
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303292439
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
135300158289 Frigidaire Evaporator Fan Motor
13215474201 Frigidaire Refrigerator Washer
14240438003 Frigidaire Refrigerator Bracket & Bushing
17WCI 5303292440
18SUPPORT-COIL COVER
22215774901 Frigidaire Refrigerator Button Plug
23WCI 215266300
24WCI 5303207353
25WCI 5303292412
25WCI 5303001361
27SUPPORT-PAN COVER
28WCI 5303289062
29WCI 215003200
30TAPPING PLATE, RH (NOT ILLUSTRATED)
30TAPPING PLATE, LH (NOT ILLUSTRATED)
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34WCI 215095400
35WCI 215002601
36WCI 215095900
37TRIM-CABINET CORNER, WHITE
38WCI 5303292368
39WCI 08006983
40WCI 5303288945
415308000039 Frigidaire Refrigerator Screw
43WCI 5303289059
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47WCI 5303292394
47AWCI 215209100
48AWCI 215209200
48WCI 5303292395
49WCI 5308016568
52PLUG-WTR INLET TUBE
52WCI 5303289294
59WCI 215097000
605304455852 Frigidaire Refrigerator Screw
71WCI 215003300
72WCI 5303289507
815304455650 Frigidaire Refrigerator Screw
83WCI 215212000
89218843801 Frigidaire Refrigerator Screw
89WCI 215176300
92241710601 Frigidaire Refrigerator Screw
93WCI 215327101
94WCI 5303292669
95WCI 215338900
96WCI 5303292668
97WCI 5303289299
98215099701 Frigidaire Refrigerator Button Plug
