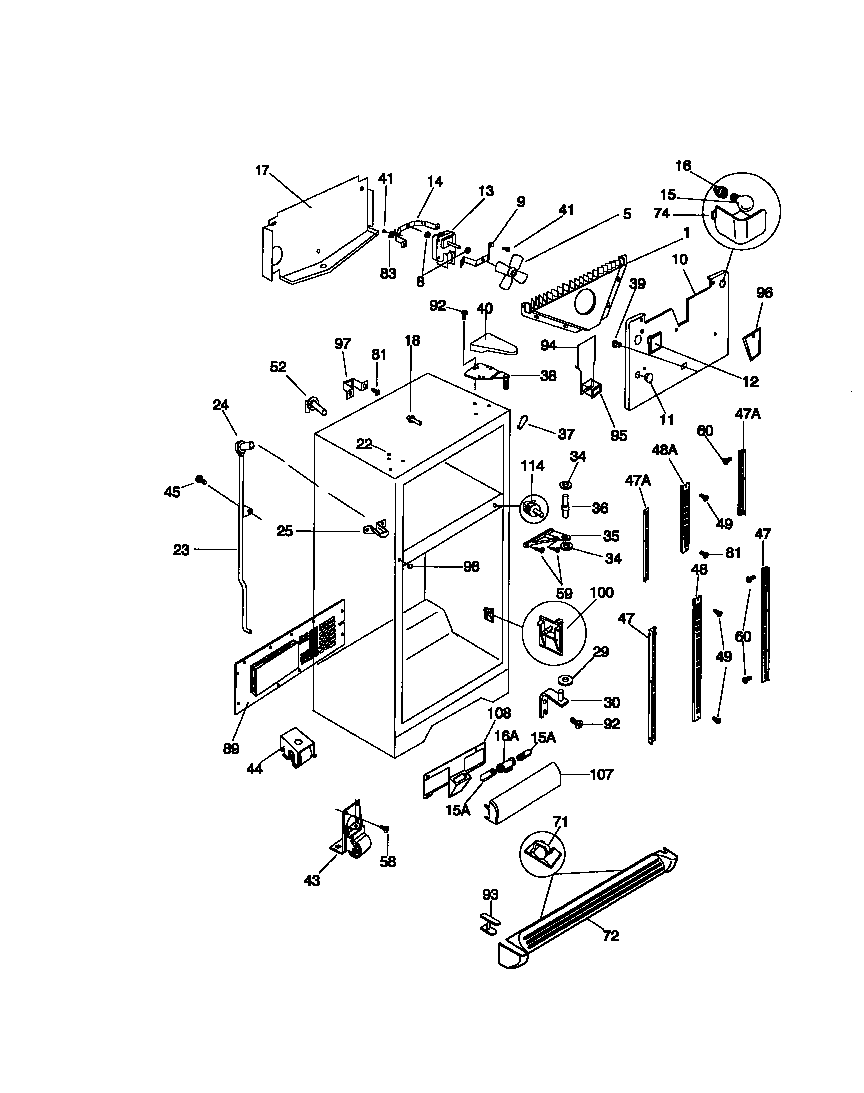

FRT24RGCB1 03 – CABINET

FRT24RGCB1 03 – CABINET

Written by

in

FRT24RGCB1 03 – CABINET

Products

PositionProduct
*342015303321321 Frigidaire Refrigerator Black Touch-Up Paint
*34204PLUG, BUTTON, CABINET LINER (NI)
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303300185
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
13A215474201 Frigidaire Refrigerator Washer
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
15AWCI 218188900
15WCI 215812200
16AWCI 5303299157
16SOCKET-LIGHT/LAMP
17WCI 5303292440
18SUPPORT – EVAP COVER, (2)
22215774918 Frigidaire Refrigerator Button Plug
23WCI 215266301
24WCI 5303207353
25AWCI 5303001361
25WCI 5303292412
29WCI 215003200
30BTAPPING PLATE, RH (NOT ILLUSTRATED)
30WCI 218150800
30ATAPPING PLATE, LH (NOT ILLUSTRATED)
34WCI 215095400
35WCI 215002618
36WCI 215095900
37WCI 5303272428
38WCI 218158000
39WCI 08006983
40WCI 218374403
415308000039 Frigidaire Refrigerator Screw
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43WCI 218615300
43AWCI 5303289062
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
47AWCI 215209100
48WCI 218487200
48AWCI 215209200
49218362501 Frigidaire Refrigerator Screw
52APLUG-WTR INLET TUBE
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
71218515401 Frigidaire Refrigerator Clip
72WCI 218359611
74WCI 215423500
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 215176300
92241710601 Frigidaire Refrigerator Screw
93WCI 218362603
94WCI 5303292669
94ASEAL-AIR DUCT COVER
95WCI 215931300
96WCI 215775900
97WCI 5303289299
98PLUG-BUTTON,BLACK
100SUPPORT-PAN COVER
107WCI 218188800
108WCI 218476800
114WCI 5303299156
