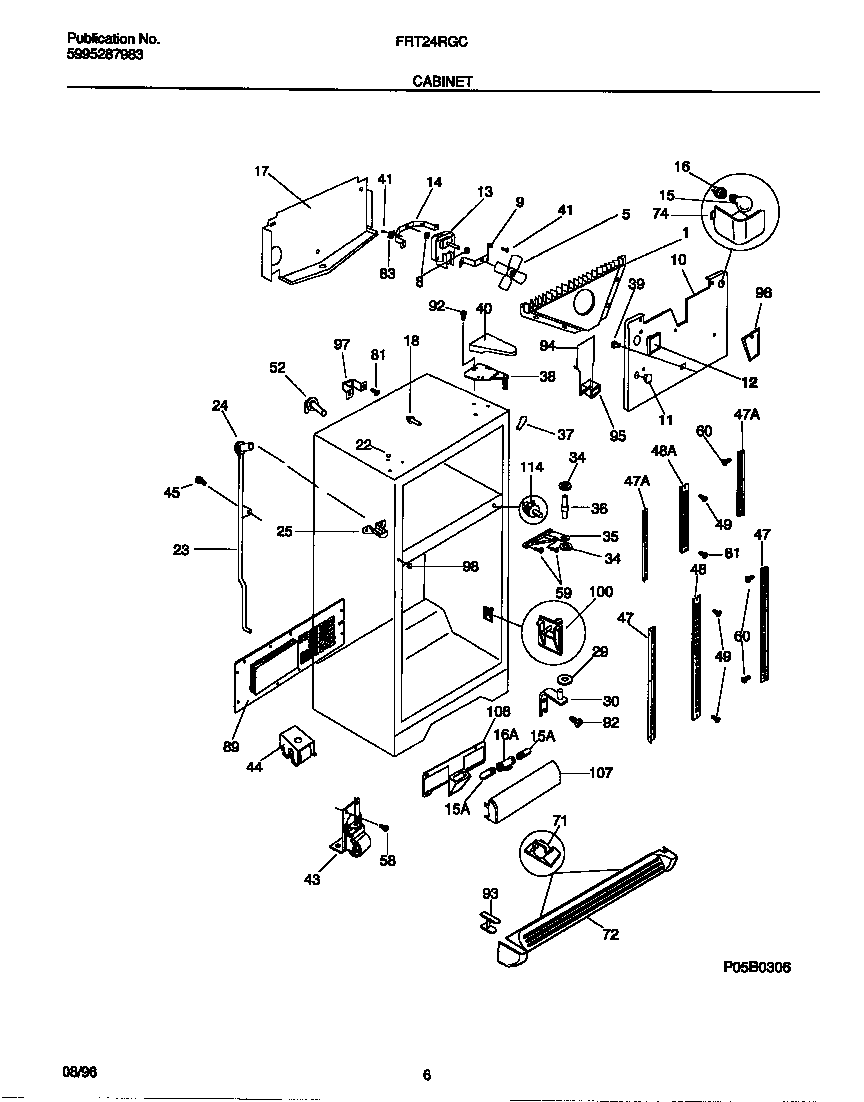

FRT24RGCB3 03 – CABINET

FRT24RGCB3 03 – CABINET

Written by

in

FRT24RGCB3 03 – CABINET

Products

PositionProduct
*812825303321321 Frigidaire Refrigerator Black Touch-Up Paint
*81281PLUG, BUTTON, CABINET LINER (NI)
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303300185
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
13B215474201 Frigidaire Refrigerator Washer
13A5300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 215812200
15WCI 218708700
16WCI 5303299157
16SOCKET-LIGHT/LAMP
17WCI 5303292440
18SUPPORT – EVAP COVER, (2)
22215774918 Frigidaire Refrigerator Button Plug
23WCI 215266301
24WCI 5303207353
25AWCI 5303292412
25BWCI 5303001361
29WCI 215003200
30BWCI 218730700
30CWCI 218730800
30AWCI 218150800
34WCI 215095400
35WCI 215002618
36WCI 215095900
37WCI 5303272428
38WCI 218215216
39WCI 08006983
40WCI 218374406
415308000039 Frigidaire Refrigerator Screw
43CSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43BWCI 5303289062
43AWCI 218615300
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
47WCI 215209100
48WCI 218487200
48WCI 215209200
49218362501 Frigidaire Refrigerator Screw
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
71218515401 Frigidaire Refrigerator Clip
72WCI 218359611
74WCI 215423500
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 215176300
92241710601 Frigidaire Refrigerator Screw
93WCI 218362603
94AWCI 5303319993
94BSEAL-AIR DUCT COVER
95WCI 218663100
96WCI 215775900
97WCI 5303289299
98PLUG-BUTTON,BLACK
100SUPPORT-PAN COVER
107WCI 218188800
108WCI 218710800
114WCI 5303299156
