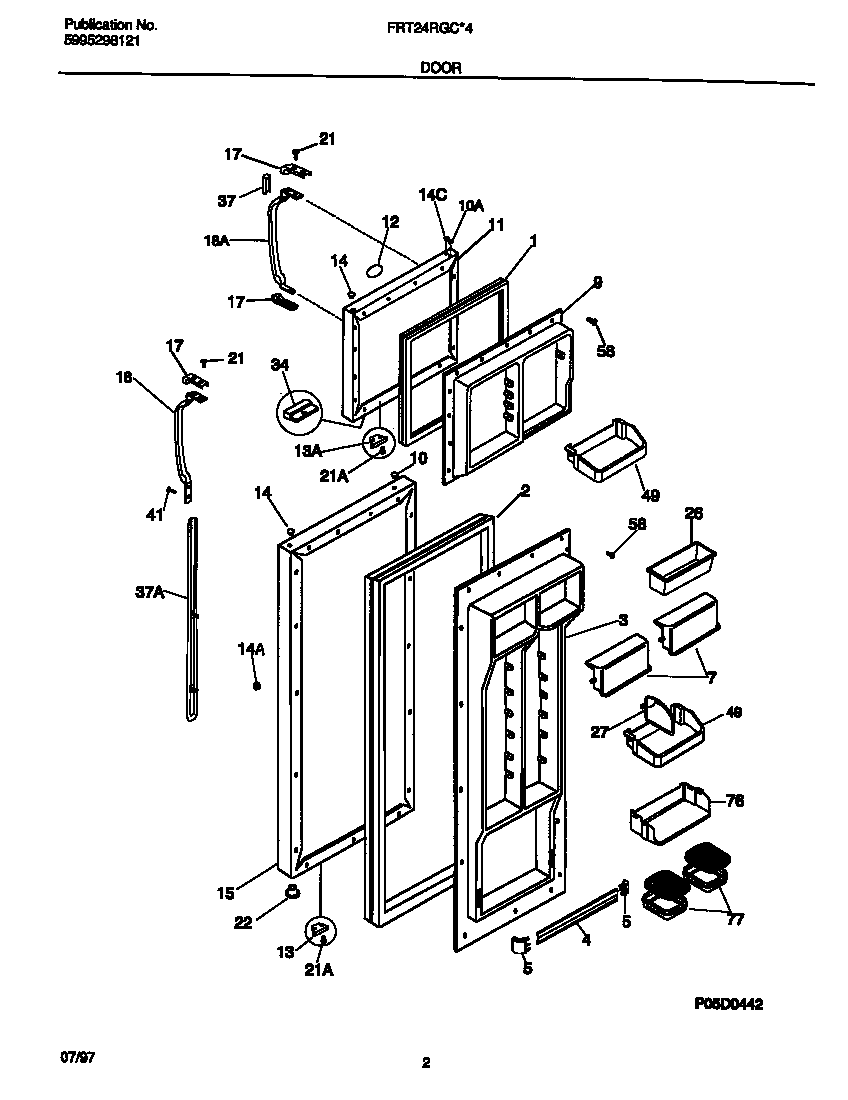

FRT24RGCB4 02 – DOOR

FRT24RGCB4 02 – DOOR

Written by

in

FRT24RGCB4 02 – DOOR

Products

PositionProduct
*31160INSULATION
1WCI 215608924
2WCI 218730619
3WCI 215816801
4215516220 Frigidaire Refrigerator Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
7DOOR-DAIRY
9WCI 215004301
10WCI 218696503
10WCI 5303299154
11WCI 5303318885
12WCI 218364006
12WCI 215008606
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 215030018
13WCI 5303289522
14240494003 Frigidaire Refrigerator Plug-Button
14WCI 218696603
15WCI 215210218
17WCI 218696405
18WCI 215981320
18WCI 215983220
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
34WCI 218783202
37WCI 218549832
37AWCI 215782300
37WCI 215867081
37BWCI 215940700
37CWCI 218676003
41218843801 Frigidaire Refrigerator Screw
49WCI 218592307
58Screw,No.10 pan hd ,8-18 x .5
76WCI 218423700
77WCI 218423501
