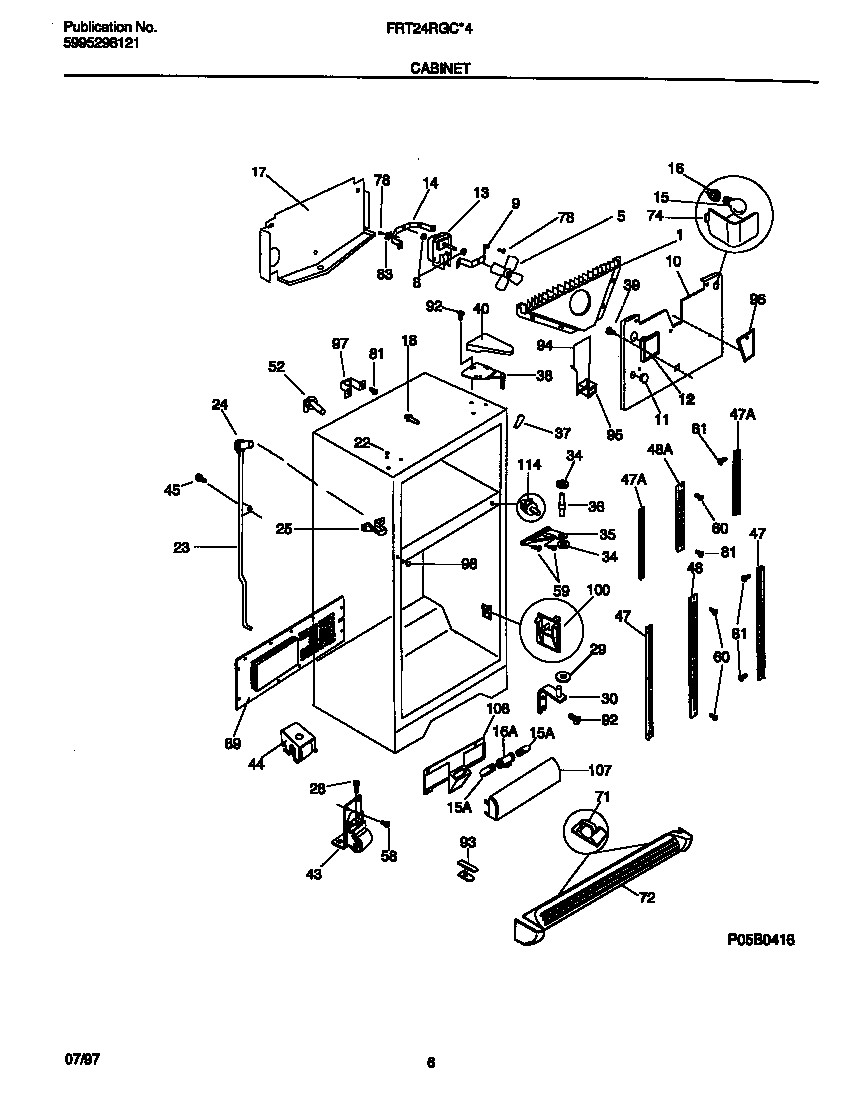

FRT24RGCB4 03 – CABINET

FRT24RGCB4 03 – CABINET

Written by

in

FRT24RGCB4 03 – CABINET

Products

PositionProduct
*311635303321321 Frigidaire Refrigerator Black Touch-Up Paint
*31161WCI 5303001361
*31162PLUG, BUTTON, CABINET LINER (NI)
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303300185
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
13A5300158289 Frigidaire Evaporator Fan Motor
13B215474201 Frigidaire Refrigerator Washer
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 215812200
15WCI 218708700
16WCI 5303299157
16SOCKET-LIGHT/LAMP
17WCI 5303292440
18SUPPORT – EVAP COVER, (2)
22215774918 Frigidaire Refrigerator Button Plug
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
28WCI 5303289062
29BWCI 215314300
29AWCI 215003200
30BWCI 218730700
30ABRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30CWCI 218730800
34WCI 218737000
35WCI 215002618
36WCI 215095900
37WCI 5303321083
38WCI 218215216
39WCI 08006983
40WCI 218374406
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43AWCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 215209100
47WCI 218233300
48WCI 218487200
48WCI 215209200
52ATUBE-WATER,ICE MOLD FILL ,ELBOW
52BPLUG-WTR INLET TUBE
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
71218515401 Frigidaire Refrigerator Clip
72WCI 218359611
74WCI 215423500
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 215176300
92241710601 Frigidaire Refrigerator Screw
93WCI 218362603
94AWCI 5303319993
94BSEAL-AIR DUCT COVER
95WCI 218663100
96WCI 215775900
97WCI 5303289299
98PLUG-BUTTON,BLACK
100SUPPORT-PAN COVER
107WCI 218188800
108WCI 218710800
114WCI 5303299156
