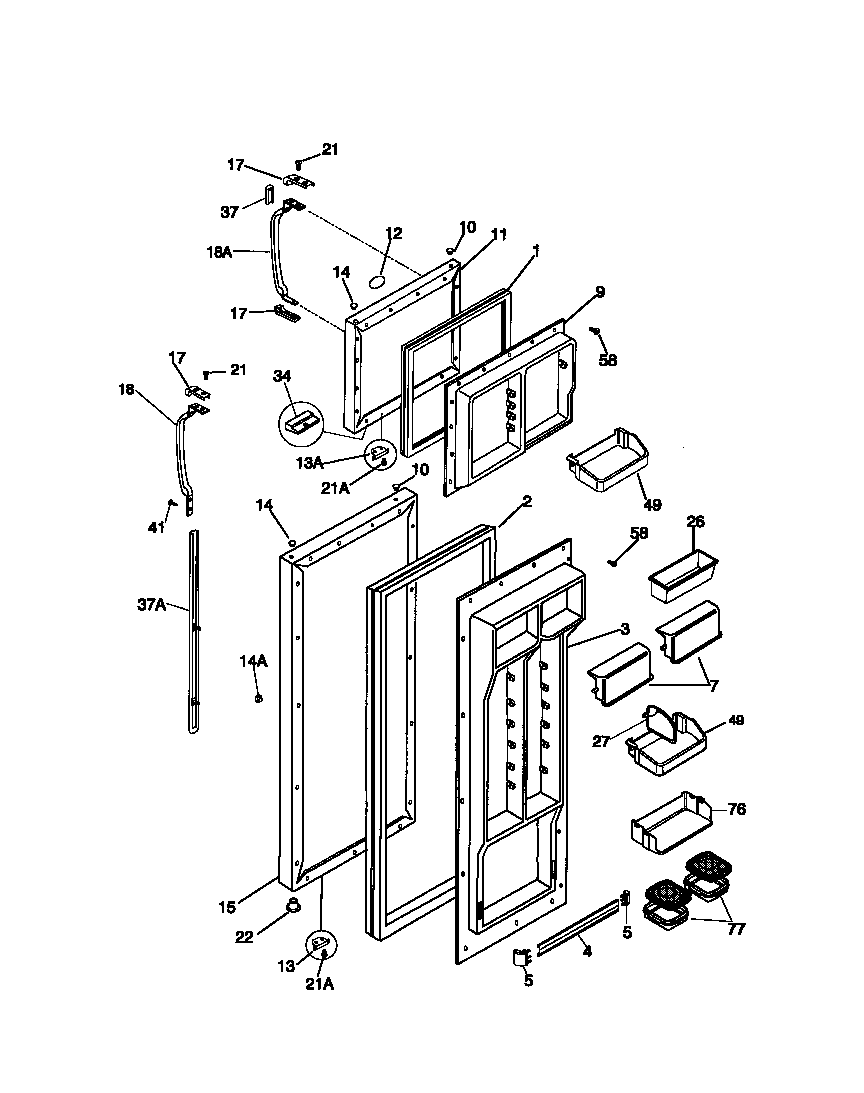

FRT24RGCD1 02 – DOOR

FRT24RGCD1 02 – DOOR

Written by

in

FRT24RGCD1 02 – DOOR

Products

PositionProduct
*34200INSULATION
1WCI 215776704
2GASKET-REFR DOOR, ALMOND, MAGNETIC
3WCI 215816801
4215516220 Frigidaire Refrigerator Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
7DOOR-DAIRY
9WCI 215004301
10WCI 5303292414
11WCI 215747811
12ALABEL-NAMEPLATE,ALMOND
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 218364005
13AWCI 215030011
13WCI 5303289522
14WCI 215352111
14AWCI 215352211
15WCI 215210211
17WCI 218025604
18WCI 215983219
18AWCI 215981319
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21WCI 215201400
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
34WCI 215423600
37WCI 218549830
37AWCI 215867050
37BWCI 215940700
415308000039 Frigidaire Refrigerator Screw
49WCI 218592307
585304455651 Frigidaire Refrigerator Screw
76WCI 218423700
77WCI 218423501
