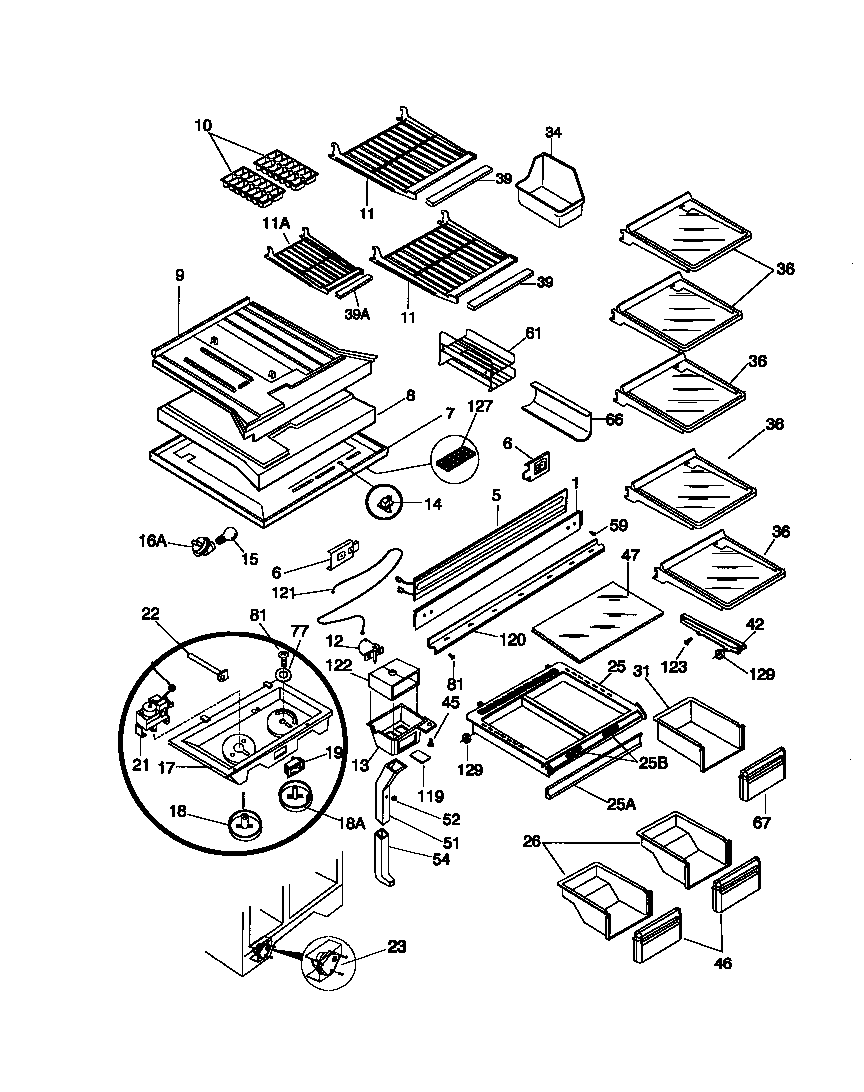

FRT24RGCD1 04 – SHELVES/CONTROLS

FRT24RGCD1 04 – SHELVES/CONTROLS

Written by

in

FRT24RGCD1 04 – SHELVES/CONTROLS

Products

PositionProduct
*34205WCI 215339100
*34207WCI 215359900
*34208WCI 215848000
*34206WCI 215339900
1WCI 5303300295
5WCI 215527200
6WCI 218279800
7WCI 215028104
7AWCI 5303001380
8WCI 215038601
9WCI 215033800
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303292429
11AWCI 5303292431
12ASPACER-AIR DEFLECTR
12BWASHER-AIR DEFLECTR
12WCI 215132300
13WCI 215420300
13ANUT, ANCHOR (NI)
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT-ANCHOR
17WCI 215932904
18AWCI 5303310732
18WCI 5303310731
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303303674
21AWCI 5303001260
22WCI 215932100
23CSHIELD-DEFROST TIMR,BTM
235303917634 Frigidaire Refrigerator Defrost Timer 8Hr 21Min
23B5304455649 Frigidaire Refrigerator Screw
23ACOVER-DEFROST TIMER, TOP
25AWCI 5303308329
25B5303307715 Frigidaire Refrigerator Humidity Control
25WCI 215216632
26WCI 5303292432
31WCI 5303304565
345303212918 Frigidaire Refrigerator Cont
36WCI 215406114
39WCI 215217542
39AWCI 215217582
42AHANGER-PAN/TRAY, RH
42WCI 215002301
455304455651 Frigidaire Refrigerator Screw
46FRONT-CRISPER PAN, (2)
47WCI 218390537
51WCI 215132809
51BWCI 215133300
51AWCI 215133200
52WCI 215132901
52AWCI 215133000
54WCI 215133100
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
59BWCI 215069501
59AWCI 218188500
61AGASKET/SPACER, ICE TRAY SHELF (NOT ILLUSTRATED)
61WCI 218620901
66WCI 5303307872
67WCI 218278601
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 218019202
121ANUT,PUSH-ON ,DAMPER CABLE
121WCI 215364001
122WCI 218561202
122AWCI 218561204
123215005101 Frigidaire Refrigerator Screw
129AWCI 5303299153
129WCI 5303299152
