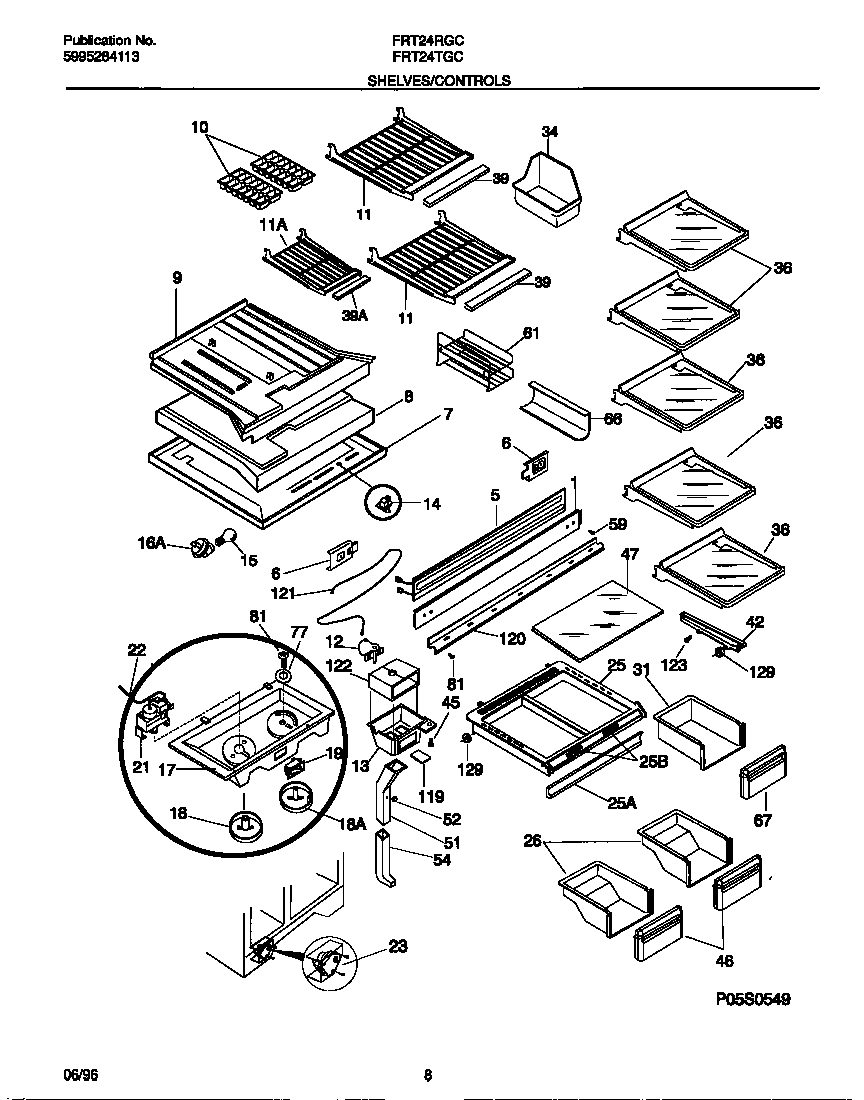

FRT24RGCD2 04 – SHELVES/CONTROLS

FRT24RGCD2 04 – SHELVES/CONTROLS

Written by

in

FRT24RGCD2 04 – SHELVES/CONTROLS

Products

PositionProduct
*27608WCI 218660800
*27606WCI 215359900
*27605WCI 215339100
*27609WCI 215339900
*27607WCI 215848000
1WCI 5303300295
5WCI 215527200
6WCI 218279800
7BWCI 5303001380
7AWCI 218646601
8WCI 215038601
9WCI 215033800
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303292429
11WCI 5303292431
12BWASHER-AIR DEFLECTR
12AWCI 218634902
12CWCI 218634800
13AWCI 218629900
13BNUT, ANCHOR (NI)
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17AWCI 215932905
17BNUT-ANCHOR
18WCI 5303310731
18WCI 5303310732
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303319419
21BWCI 5303001260
22WCI 218660701
23B5304455649 Frigidaire Refrigerator Screw
23A5303917634 Frigidaire Refrigerator Defrost Timer 8Hr 21Min
23DSHIELD-DEFROST TIMR,BTM
23CCOVER-DEFROST TIMER, TOP
25WCI 215216632
25WCI 5303308329
255303307715 Frigidaire Refrigerator Humidity Control
26WCI 5303292432
31WCI 5303304565
345303212918 Frigidaire Refrigerator Cont
36WCI 215406114
39WCI 215217542
39WCI 215217582
42AWCI 215002301
42BHANGER-PAN/TRAY, RH
455304455651 Frigidaire Refrigerator Screw
46FRONT-CRISPER PAN, (2)
47WCI 218390537
51AWCI 215132809
51CWCI 215133300
51BWCI 215133200
52AWCI 215132901
52BWCI 215133000
54WCI 215133100
59A240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
59WCI 215069501
59BWCI 218188500
61AWCI 218620901
61BGASKET/SPACER, ICE TRAY SHELF (NOT ILLUSTRATED)
66WCI 5303307872
67WCI 218278601
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 218019202
121AWCI 215364001
121BNUT,PUSH-ON ,DAMPER CABLE
122BWCI 218561204
122AWCI 218561202
123215005101 Frigidaire Refrigerator Screw
129BWCI 5303299153
129AWCI 5303299152
