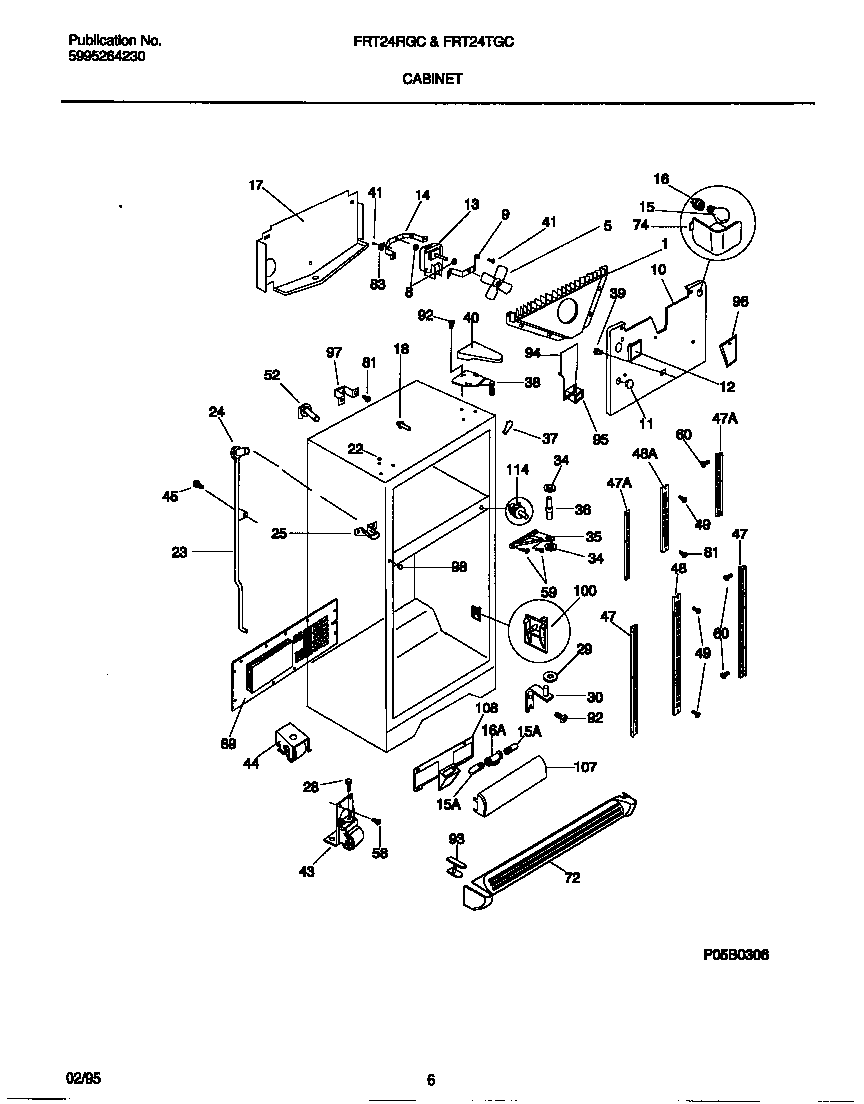

FRT24RGCW0 03 – CABINET

Products

Position	Product
1	WCI 215937600
5	WCI 5303292398
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 5303300185
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303292393
13A	5300158289 Frigidaire Evaporator Fan Motor
13B	215474201 Frigidaire Refrigerator Washer
14	240438003 Frigidaire Refrigerator Bracket & Bushing
15	WCI 215812200
15	WCI 218188900
16	SOCKET-LIGHT/LAMP
16	WCI 5303299157
17	WCI 5303292440
18	SUPPORT – EVAP COVER, (2)
22	215774901 Frigidaire Refrigerator Button Plug
23	WCI 215266301
24	WCI 5303207353
25B	WCI 5303001361
25A	WCI 5303292412
28	WCI 5303289062
29	WCI 215003200
30A	WCI 218150800
30B	TAPPING PLATE, LH (NOT ILLUSTRATED)
30C	TAPPING PLATE, RH (NOT ILLUSTRATED)
34	WCI 215095400
35	WCI 215002601
36	WCI 215095900
37	TRIM-CABINET CORNER, WHITE
38	WCI 218158000
39	WCI 08006983
40	WCI 218374401
41	5308000039 Frigidaire Refrigerator Screw
43A	WCI 5303289059
43B	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44	WCI 215163900
