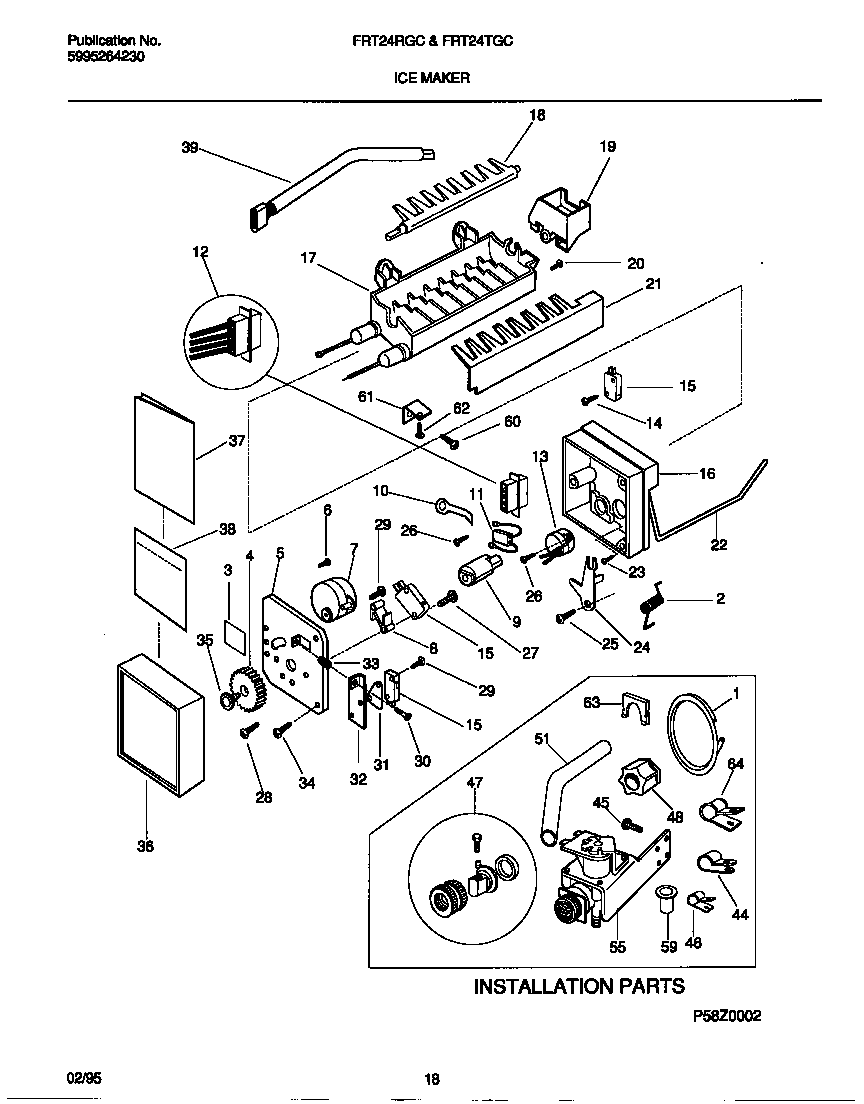

FRT24TGCD0 06 – ICE MAKER

Products

Position	Product
1	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
2	WCI 3206348
3	Label,ID plate
4	5304469403 Frigidaire Gear
5	WCI 3206303
6	218359202 Frigidaire Refrigerator Screw
7	5303918277 Frigidaire Refrigerator Ice Maker Assembly
8	SPACER-HOLD SWITCH
9	WCI 3206313
10	WCI 3206315
11	3206319 Frigidaire Refrigerator Thermal Cut-Off Assembly P1
12B	PLUG, ``ONLY``
12A	HARNESS-WIRING, INTERNAL IM, WITH PLUG
13	Thermostat Assy,ice maker
14	SCREW,4-24 X 0.750 ,(6)
15	5304456667 Frigidaire Refrigerator Micro Switch
16	WCI 3206326
17	241798231 Frigidaire Refrigerator Ice Maker Assembly
18	EJECTOR-ICE
19	WCI 3206330
20	WCI 3206331
21	ICE STRIPPER
22	SHUT-OFF ARM
23	SCREW - SUP / MOLD BODY, 8-18 X 1, (4)
24	5304456675 Frigidaire Refrigerator Lever Arm
25	SCREW,8-18 X 0.562 ,LEVER ARM/SPRT
26	SCREW-THERMO/SPRT, 4-24 X 3/8, (4)
27	SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,
28	Screw-timing stop`4-40 x 0.375
29	SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4)
30	SCREW-TIMING ADJ,8-32 X 1.000
31	WCI 3206342
32	WCI 3206343
33	WCI 3206344
34	SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3)
35	SCREW - GEAR / CAM, 6-20 X 0.437
36	COVER-ICE MAKER
37	WCI 5303207442
38	WCI 5303207445
39	WCI 5303289065
44	5308000133 Frigidaire Refrigerator Clamp
45	5304455651 Frigidaire Refrigerator Screw
46	5303001193 Frigidaire Refrigerator Clamp
47	WCI 5308000205
48	NUT, 7/16 X 20, NYLON
