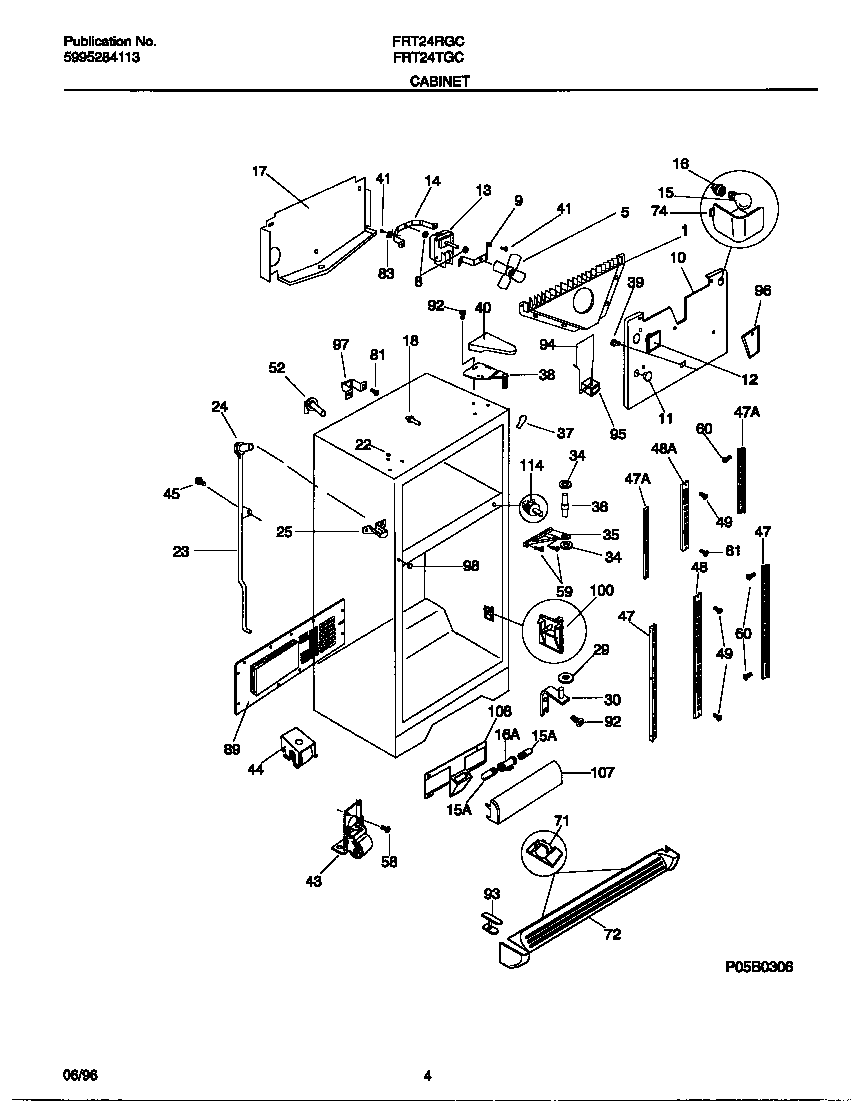

FRT24TGCD2 03 – CABINET

FRT24TGCD2 03 – CABINET

Written by

in

FRT24TGCD2 03 – CABINET

Products

PositionProduct
*27602TOUCH, UP PAINT, ALMOND (NI)
*27604PLUG, BUTTON, CABINET LINER (NI)
1WCI 215937600
5WCI 5303292398
9WCI 5303292396
10WCI 5303300185
115303208309 Frigidaire Refrigerator Plug Hole
13B215474201 Frigidaire Refrigerator Washer
13A5300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 218708700
15WCI 215812200
16SOCKET-LIGHT/LAMP
16WCI 5303299157
17WCI 5303292440
18SUPPORT – EVAP COVER, (2)
22WCI 215774911
23WCI 215266301
24WCI 5303207353
25BWCI 5303001361
25AWCI 5303292412
29WCI 215003200
30AWCI 218150800
30DWCI 218730900
30BWCI 218730700
30CWCI 218730800
34WCI 215095400
35WCI 215002611
36WCI 215095900
37TRIM-CABINET CORNER, ALMOND
38WCI 218215211
39WCI 08006983
40WCI 218374405
415308000039 Frigidaire Refrigerator Screw
43CSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43BWCI 5303289062
43AWCI 218615300
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47WCI 215209100
47WCI 218233300
48WCI 215209200
48WCI 218487200
49218362501 Frigidaire Refrigerator Screw
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
71218515401 Frigidaire Refrigerator Clip
72WCI 218359607
74WCI 215423500
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 215176300
92241710601 Frigidaire Refrigerator Screw
93WCI 218362602
94BSEAL-AIR DUCT COVER
94AWCI 5303319993
95WCI 218663100
96WCI 215775900
97WCI 5303289299
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
107WCI 218188800
108WCI 218710800
1145303289051 Frigidaire Refrigerator Light Switch
