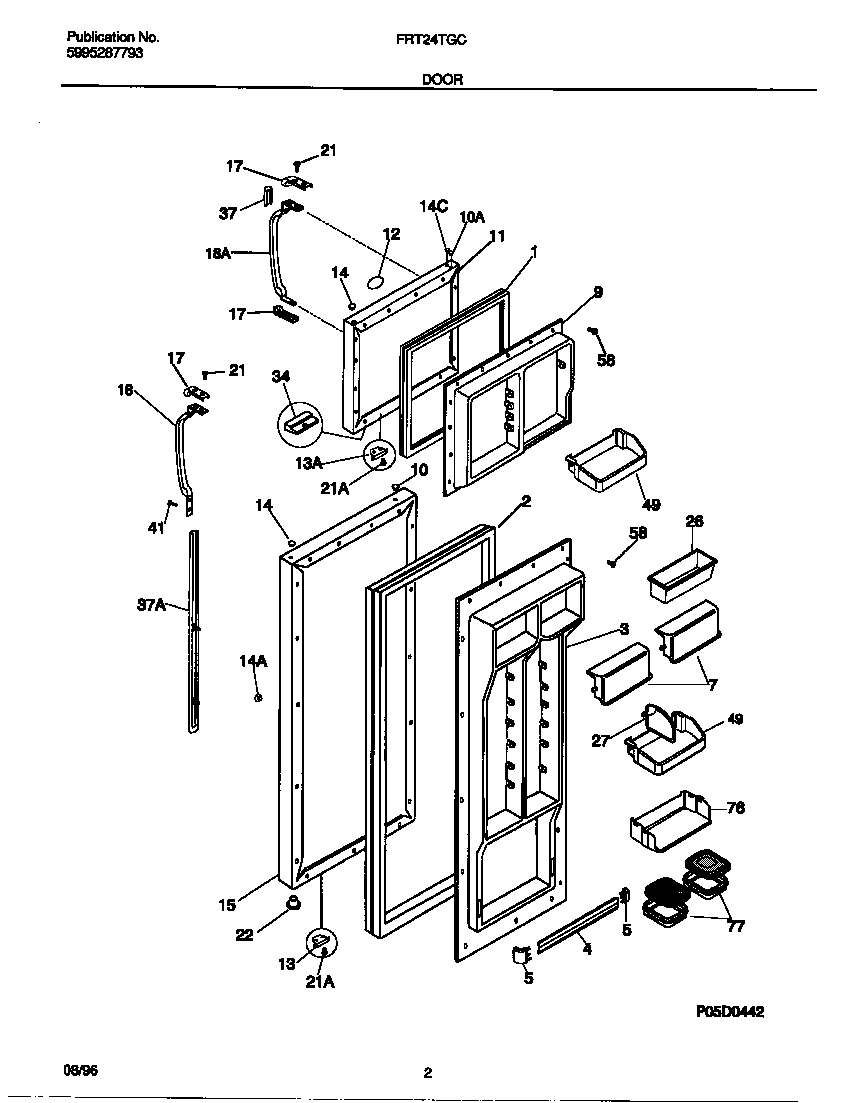

FRT24TGCD3 02 – DOOR

FRT24TGCD3 02 – DOOR

Written by

in

FRT24TGCD3 02 – DOOR

Products

PositionProduct
*53760INSULATION
1WCI 215608904
2WCI 5303292421
3WCI 215816801
4215516220 Frigidaire Refrigerator Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
7DOOR-DAIRY
9WCI 215004301
10WCI 218696502
10WCI 5303292414
11WCI 215747811
12WCI 218364005
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12LABEL-NAMEPLATE,ALMOND
13WCI 5303289522
13WCI 215030011
14WCI 215352111
14WCI 218696602
14WCI 215352211
15WCI 215210211
17WCI 218025604
17WCI 218696404
18WCI 215983219
18WCI 215981319
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
34WCI 215423601
37WCI 218549830
37WCI 215867080
37WCI 215940700
41218843801 Frigidaire Refrigerator Screw
49WCI 218592307
58216858001 Frigidaire Refrigerator Screw
76WCI 218423700
77WCI 218423501
