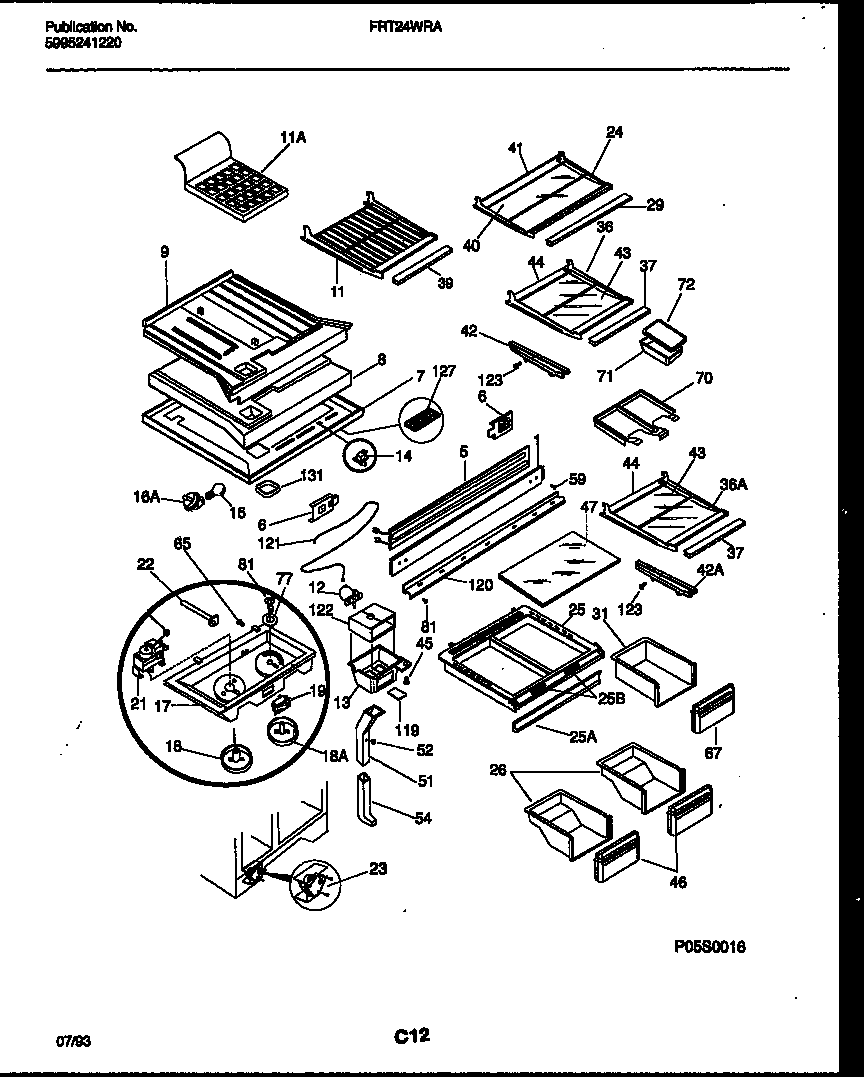

FRT24WRAW0 06 – SHELVES AND SUPPORTS

FRT24WRAW0 06 – SHELVES AND SUPPORTS

Written by

in

FRT24WRAW0 06 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303300295
5WCI 215527200
6WCI 215096700
7AWCI 5303001380
7WCI 215028102
8BWCI 215771700
8WCI 215038602
8A3205266 Frigidaire Refrigerator Edge Protector
9WCI 215019800
11WCI 5303292429
11AWCI 215309601
12ASPACER-AIR DEFLECTR
12WCI 215132300
12BWASHER-AIR DEFLECTR
13WCI 215132600
13ANUT, ANCHOR (NI)
14241547902 Frigidaire Refrigerator Light Switch
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17AWCI 215280700
17WCI 5303292409
18WCI 5303292410
18AWCI 5303292411
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303292452
21AWCI 5303001260
22HOUSING, CONTRL CAP TUBE
23B5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23ACOVER-DEFROST TIMER, TOP
23CSHIELD-DEFROST TIMR,BTM
24WCI 215069014
25AWCI 5303300010
25B5303307715 Frigidaire Refrigerator Humidity Control
25WCI 215216608
26WCI 5303292432
29AWCI 5303209274
29WCI 5303292427
31WCI 5303292434
36WCI 215069013
36AFRAME-MEAT KPR SHLF, CANTILEVER
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
37WCI 5303292424
39WCI 5303292430
40GLASS-SHELF, FULL SHELF
41WCI 5303292426
42HANGER-PAN/BASKET, LH
42AHANGER-PAN/BASKET, RH
42AWCI 215002301
42AHANGER-PAN/TRAY, RH
43GLASS-SHELF, HALF SHELF, (2)
44TRIM-MEAT KPR SHELF, SNAP-ON, REAR
455304455651 Frigidaire Refrigerator Screw
46WCI 5303291323
47WCI 5303292438
51WCI 215132801
51AWCI 215133200
51BWCI 215133300
52WCI 215132901
52AWCI 215133000
54WCI 215133100
59BWCI 215069501
59WCI 215097000
61AWCI 215004700
65WCI 5303274946
67WCI 5303292670
70WCI 5303275653
71DISH-CORNING GLASS
72WCI 5303275754
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 215097102
121ANUT,PUSH-ON ,DAMPER CABLE
121WCI 215364001
122WCI 215132502
123WCI 08014528
127WCI 215771600
80443LOCK-SHELF TRIM, REAR
