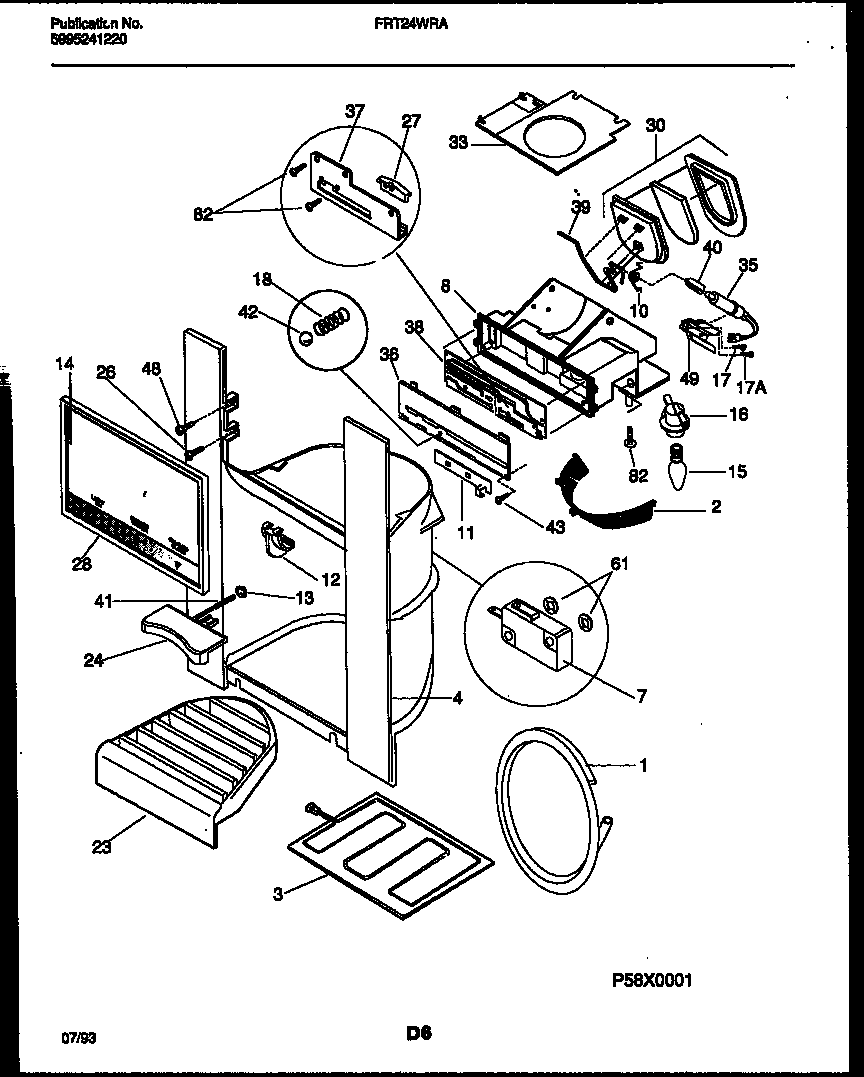

FRT24WRAW0 10 – ICE DOOR, DISPENSER AND WATER TANKS

FRT24WRAW0 10 – ICE DOOR, DISPENSER AND WATER TANKS

Written by

in

FRT24WRAW0 10 – ICE DOOR, DISPENSER AND WATER TANKS

Products

PositionProduct
1WCI 215294102
15308010366 Frigidaire Refrigerator P1-Water Inlet Tube
2WCI 215732101
3WCI 215484300
4WCI 5303298524
7WCI 215765600
8WCI 215763500
10WCI 215793600
11WCI 215253300
12WCI 215766501
13WCI 215748101
14WCI 215731700
15WCI 5304506475
16240548901 Frigidaire Refrigerator P-1 Socket
17WCI 215794400
17AWCI 215840700
18WCI 215760200
23WCI 5303297844
24WCI 215766301
26215503203 Frigidaire Refrigerator Door Handle Screw
27WCI 215254700
28WCI 5303297846
30DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33WCI 215280800
35WCI 215793900
36WCI 215254400
37WCI 215763400
38AWCI 215630800
38BWCI 215631000
38CWCI 215763900
38WCI 215894601
39WCI 215793700
40WCI 215794300
41WCI 215765400
42WCI 215756000
43WCI 215760300
48SCREW (4)
49WCI 215794000
61WCI 215766000
82WCI 215296300
80453WCI 215781700
80453WASHER-FLAT
80463SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
