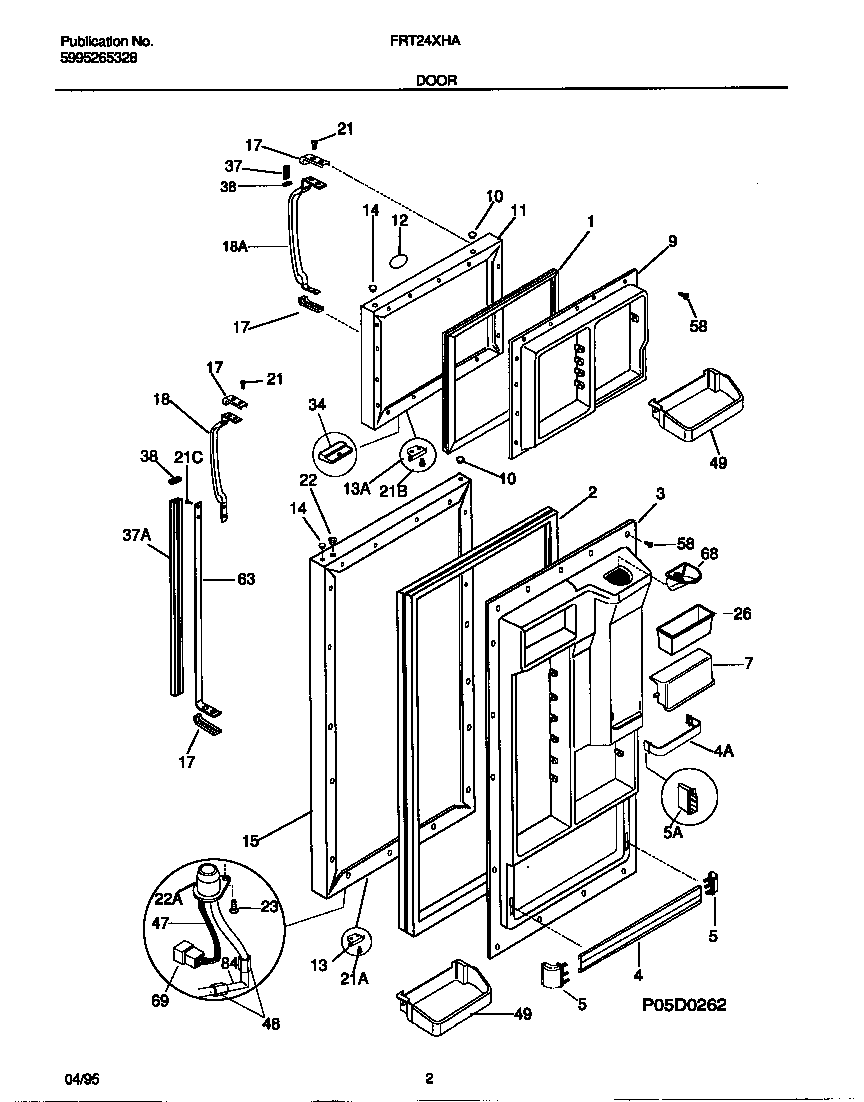

FRT24XHAW2 02 – DOOR

FRT24XHAW2 02 – DOOR

Written by

in

FRT24XHAW2 02 – DOOR

Products

PositionProduct
*62520INSULATION
1WCI 215776714
2WCI 215732418
3WCI 215365601
4WCI 215693900
4215516220 Frigidaire Refrigerator Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
5WCI 5303288950
7WCI 5303304566
9WCI 215365501
10WCI 5303292413
11WCI 215747801
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 215008601
13WCI 215030001
13WCI 5303289522
14WCI 215352101
15WCI 215622201
17WCI 218025601
18WCI 215981301
18WCI 215983201
21WCI 215218600
21WCI 215201400
21WCI 215218700
215308000039 Frigidaire Refrigerator Screw
22WCI 5303289320
22WCI 215615300
23WCI 5303001020
26CONTAINER-EGG
34WCI 215423600
37WCI 215117406
37WCI 215117407
38WCI 215117301
47WCI 215683000
48NUT, 7/16 X 20, NYLON
49BWCI 5303297839
49AWCI 215441605
585304455651 Frigidaire Refrigerator Screw
63WCI 215209500
68WCI 215327001
69CONNECTOR-DOOR HARN
84WCI 5308010289
