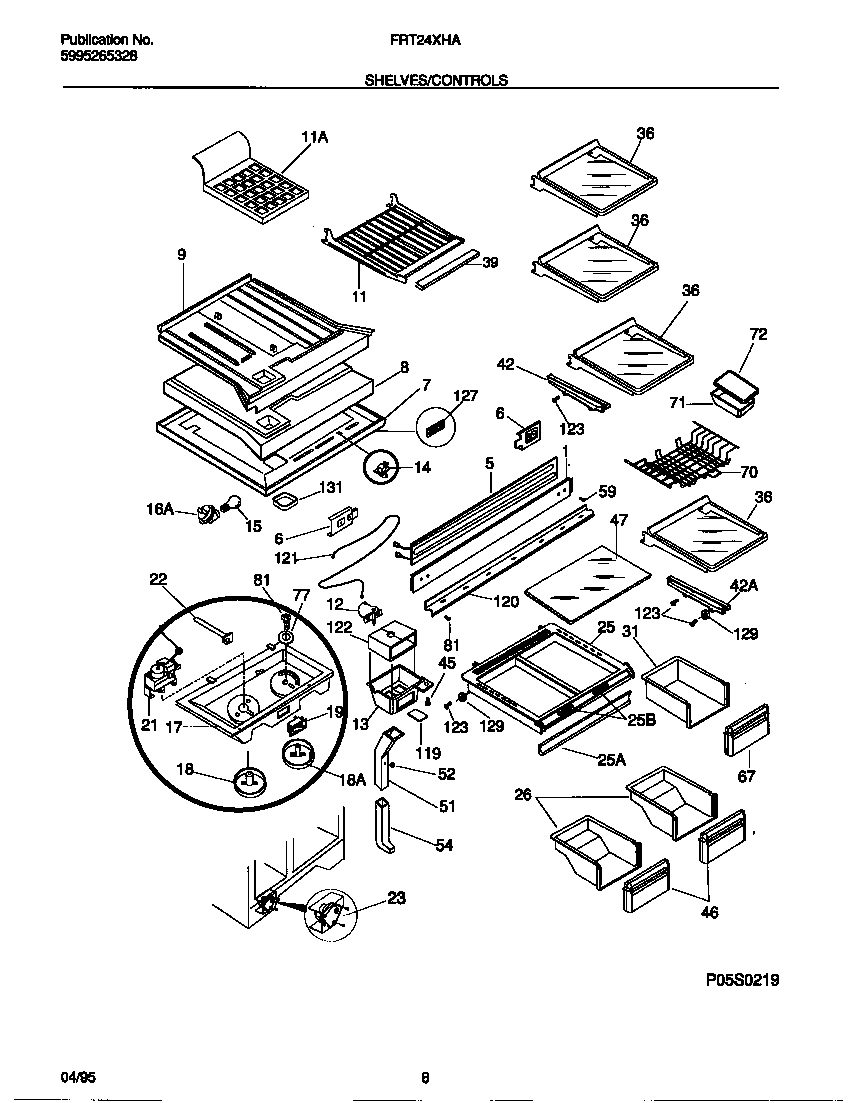

FRT24XHAW2 04 – SHELVES/CONTROLS

FRT24XHAW2 04 – SHELVES/CONTROLS

Written by

in

FRT24XHAW2 04 – SHELVES/CONTROLS

Products

PositionProduct
*62524WCI 215848000
*62523WCI 215339900
1WCI 5303300209
5WCI 215527200
6WCI 218279800
7BWCI 5303001380
7AWCI 215028105
8AWCI 215038602
8BWCI 215771700
9WCI 215019800
11WCI 5303292429
11WCI 215309601
12CWASHER-AIR DEFLECTR
12AWCI 215132300
12BSPACER-AIR DEFLECTR
13AWCI 215420300
13BNUT, ANCHOR (NI)
14241547902 Frigidaire Refrigerator Light Switch
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT-ANCHOR
17AWCI 215932903
18WCI 5303296667
18WCI 5303296668
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303305486
21BWCI 5303001260
22WCI 215932100
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23DSHIELD-DEFROST TIMR,BTM
23BCOVER-DEFROST TIMER, TOP
23C5304455649 Frigidaire Refrigerator Screw
25WCI 215216619
25WCI 5303300010
255303307715 Frigidaire Refrigerator Humidity Control
26WCI 5303292432
31WCI 5303304565
36WCI 215406101
39WCI 215217542
42BHANGER-PAN/TRAY, RH
42AHANGER-PAN/BASKET, LH
42AWCI 215002301
42BHANGER-PAN/BASKET, RH
455304455651 Frigidaire Refrigerator Screw
46WCI 5303288970
47WCI 5303294005
51CWCI 215133300
51AWCI 215132801
51BWCI 215133200
52BWCI 215133000
52AWCI 215132901
54WCI 215133100
59A240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
59BWCI 215069501
59CWCI 218188500
67WCI 5303292433
70WCI 215453001
71DISH-CORNING GLASS
72WCI 5303275754
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 218019202
121BNUT,PUSH-ON ,DAMPER CABLE
121AWCI 215364001
122WCI 215132502
123215005101 Frigidaire Refrigerator Screw
127WCI 215771600
129AWCI 5303299152
129BWCI 5303299153
131WCI 215379800
