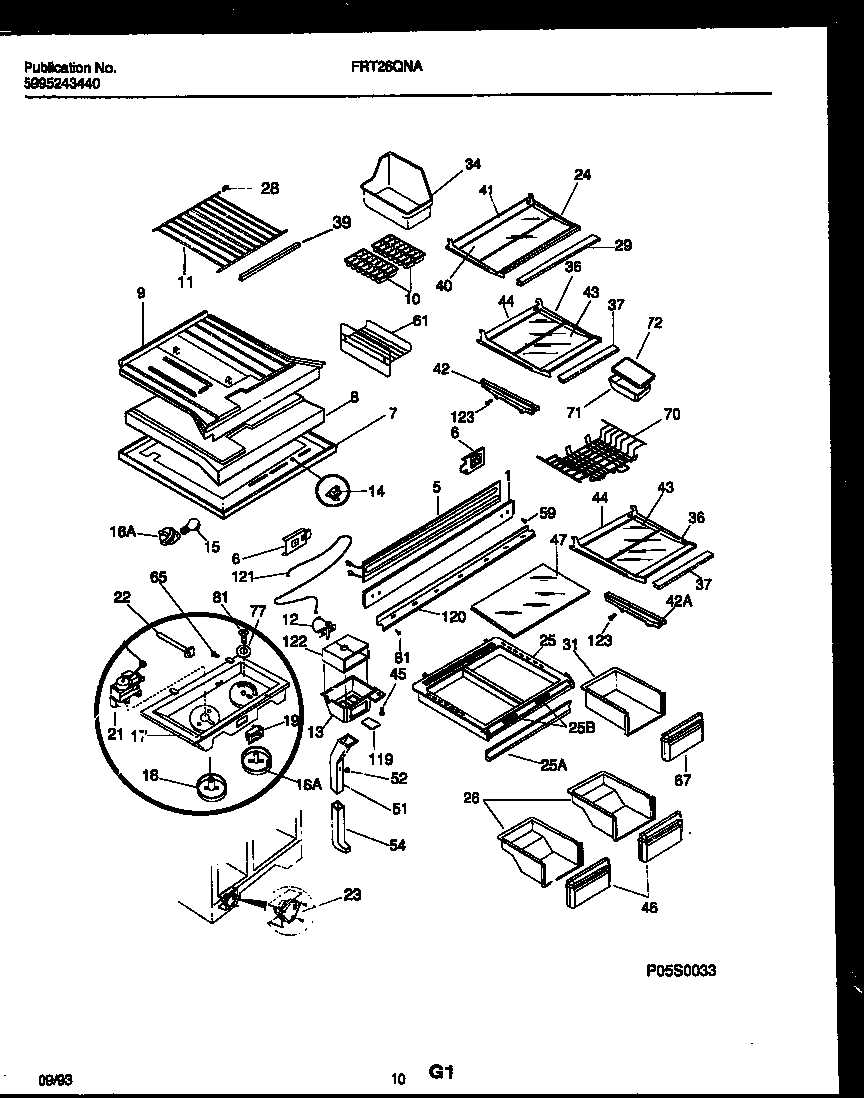

FRT26QNAW0 06 – SHELVES AND SUPPORTS

FRT26QNAW0 06 – SHELVES AND SUPPORTS

Written by

in

FRT26QNAW0 06 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 215002202
5WCI 215099600
6WCI 215096700
7AWCI 5303001380
7WCI 215066301
8WCI 215340401
8BWCI 215314300
8A3205266 Frigidaire Refrigerator Edge Protector
9WCI 215060000
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303294245
12BWASHER-AIR DEFLECTR
12ASPACER-AIR DEFLECTR
12WCI 215132300
13WCI 215420300
13ANUT, ANCHOR (NI)
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17AWCI 215280700
17WCI 5303292409
18WCI 5303292410
18AWCI 5303292411
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303292452
21AWCI 5303001260
22HOUSING, CONTRL CAP TUBE
23B5304455649 Frigidaire Refrigerator Screw
23CSHIELD-DEFROST TIMR,BTM
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23ACOVER-DEFROST TIMER, TOP
24WCI 215069053
25AWCI 5303300010
25WCI 215216613
25B5303307715 Frigidaire Refrigerator Humidity Control
26WCI 5303300008
28END CAP-SHELF, PROTECTOR
29WCI 5303292427
29AWCI 5303209274
31WCI 5303292434
345303212918 Frigidaire Refrigerator Cont
36WCI 215069054
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
37WCI 5303292424
39WCI 215217505
40WCI 5303300400
41WCI 5303292426
42AHANGER-PAN/TRAY, RH
42AWCI 215002301
42HANGER-PAN/BASKET, LH
42BHANGER-PAN/BASKET, RH
43WCI 5303300399
44TRIM-MEAT KPR SHELF, SNAP-ON, REAR
455304455651 Frigidaire Refrigerator Screw
46WCI 5303291323
47WCI 5303300009
51AWCI 215133200
51BWCI 215133300
51WCI 215132801
52AWCI 215133000
52WCI 215132901
54WCI 215133100
59WCI 215097000
61WCI 215781501
65WCI 5303274946
67WCI 5303292670
70WCI 215453001
71DISH-CORNING GLASS
72WCI 5303275754
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 215097102
121WCI 215364002
121ANUT,PUSH-ON ,DAMPER CABLE
122WCI 215132502
123WCI 08014528
86921WCI 215339900
86921WCI 215848000
86922LOCK-SHELF TRIM, REAR
