FRT26XGCB4 02 – DOOR

FRT26XGCB4 02 – DOOR

Written by

in

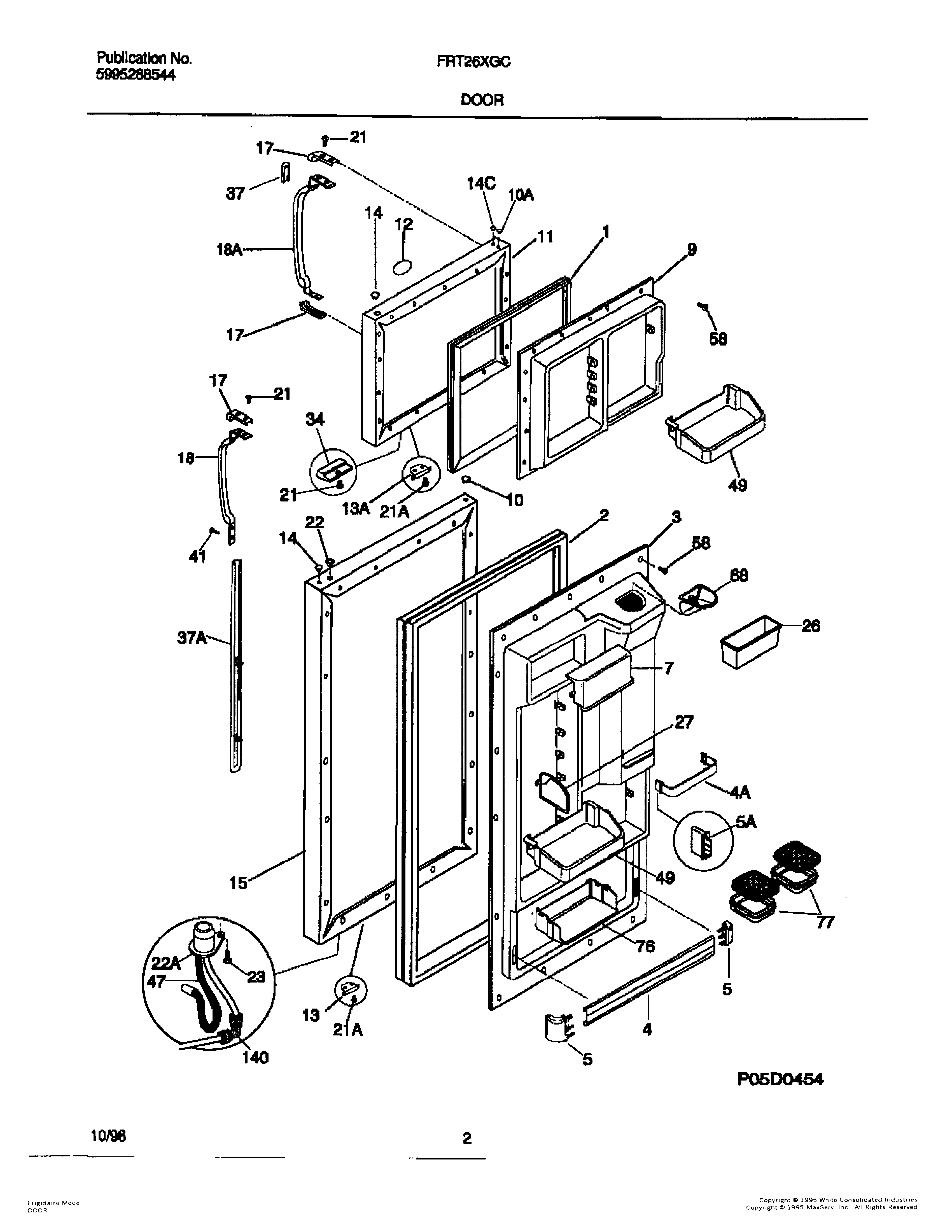

FRT26XGCB4 02 – DOOR

Products

PositionProduct
*06160INSULATION
1WCI 215608924
2WCI 5303300006
3WCI 215365601
4AWCI 215693901
4215516220 Frigidaire Refrigerator Door Rack
5AWCI 5303288950
5218758602 Frigidaire Refrigerator Door Rack Support
7DOOR-DAIRY
9WCI 215365501
10AWCI 5303299154
10WCI 218696503
11WCI 5303318885
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 215008606
12WCI 218364006
13AWCI 5303289522
13WCI 215030018
14CWCI 218696603
14240494003 Frigidaire Refrigerator Plug-Button
15WCI 5303917680
17WCI 218696405
18WCI 215981320
18AWCI 215983220
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
22WCI 215615300
22AWCI 5303289320
23WCI 5303001020
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
34WCI 215423602
37WCI 218549832
37AWCI 215867081
41218843801 Frigidaire Refrigerator Screw
47WCI 218741600
49WCI 218592307
49WCI 218592311
58Screw,No.10 pan hd ,8-18 x .5
68WCI 218498000
76WCI 218423700
77WCI 218423501
140WCI 218518700
