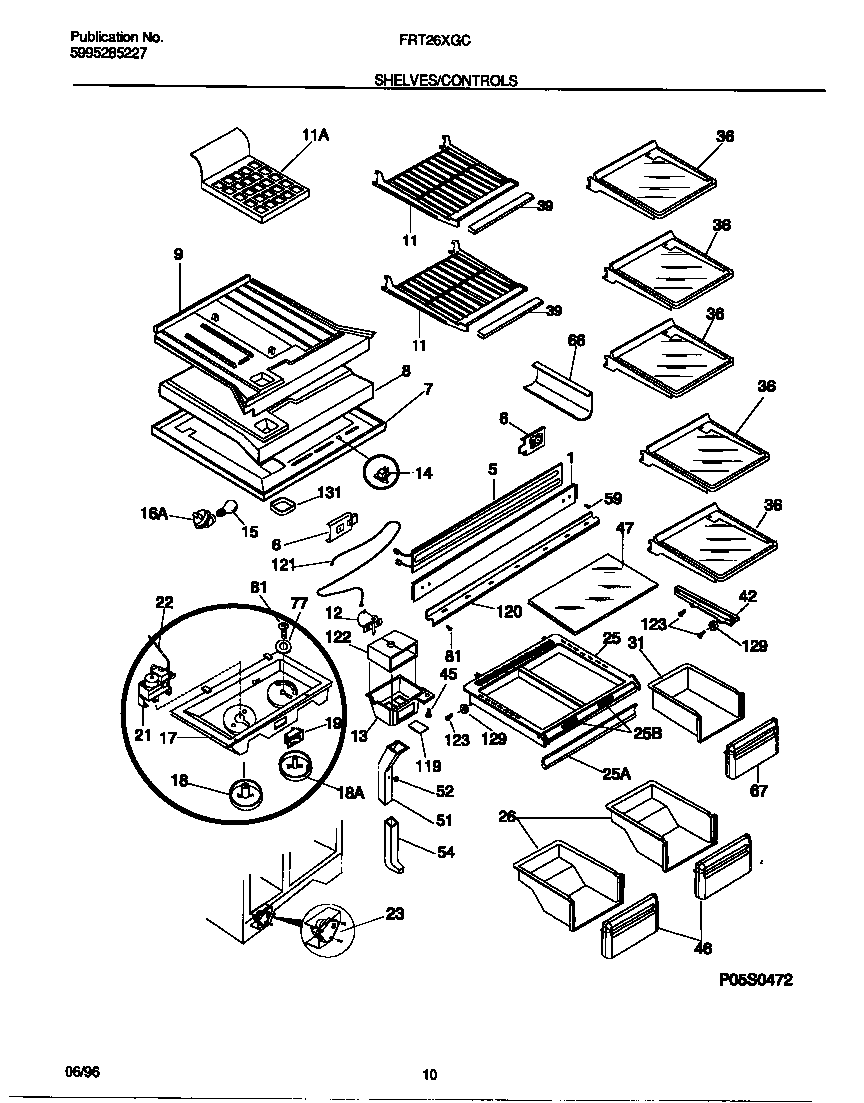

FRT26XGCD2 04 – SHELVES/CONTROLS

FRT26XGCD2 04 – SHELVES/CONTROLS

Written by

in

FRT26XGCD2 04 – SHELVES/CONTROLS

Products

PositionProduct
*52566WCI 215848000
*52565WCI 215359900
*52564WCI 215339100
*52567WCI 218660800
*52568WCI 215339900
1WCI 5303300209
5WCI 215527200
6WCI 218279800
7WCI 5303001380
7WCI 218646802
8WCI 215771700
8WCI 215340402
9WCI 215309700
11WCI 215309601
11ASHELF-FREEZER, CANTILEVER, WIDE, (2)
12WCI 218634902
12WASHER-AIR DEFLECTR
12WCI 218634800
13WCI 218629900
13NUT, ANCHOR (NI)
14241547902 Frigidaire Refrigerator Light Switch
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17NUT-ANCHOR
17WCI 215932905
18AWCI 5303310732
18WCI 5303310731
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303319419
21WCI 5303001260
22WCI 218660701
23COVER-DEFROST TIMER, TOP
23SHIELD-DEFROST TIMR,BTM
235303917634 Frigidaire Refrigerator Defrost Timer 8Hr 21Min
235304455649 Frigidaire Refrigerator Screw
25COVER-CRISPER PAN, WITH BEAM, ROLLERS, TRIM, AND HUMID C
255303307715 Frigidaire Refrigerator Humidity Control
25WCI 5303308329
26WCI 5303300008
31WCI 5303304565
36WCI 215406114
39WCI 215217542
42WCI 215002301
42HANGER-PAN/TRAY, RH
455304455651 Frigidaire Refrigerator Screw
46FRONT-CRISPER PAN, (2)
47WCI 218498104
51WCI 215133300
51WCI 215133200
51WCI 215132809
52WCI 215133000
52WCI 215132901
54WCI 215133100
59WCI 215069501
59WCI 218188500
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
66WCI 5303307872
67WCI 218278601
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 218019202
121WCI 215364002
121NUT,PUSH-ON ,DAMPER CABLE
122WCI 218561204
122WCI 218561202
123215005101 Frigidaire Refrigerator Screw
129WCI 5303299152
129WCI 5303299153
131WCI 215379800
