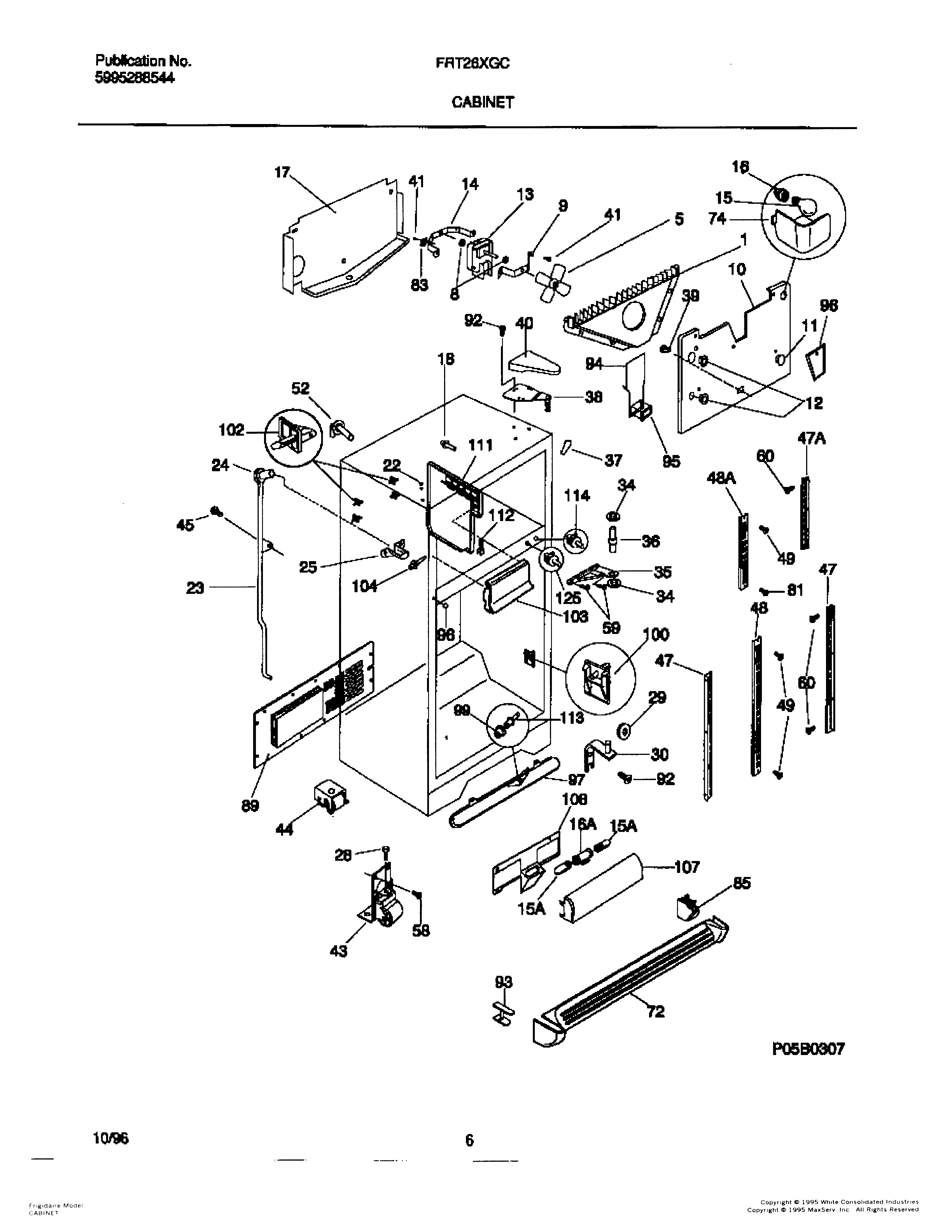

FRT26XGCD4 03 – CABINET

FRT26XGCD4 03 – CABINET

Written by

in

FRT26XGCD4 03 – CABINET

Products

PositionProduct
*06161218515401 Frigidaire Refrigerator Clip
*06163TOUCH, UP PAINT, ALMOND (NI)
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303300186
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
135300158289 Frigidaire Evaporator Fan Motor
13215474201 Frigidaire Refrigerator Washer
14240438003 Frigidaire Refrigerator Bracket & Bushing
15AWCI 218708700
15WCI 215812200
16ASOCKET-LIGHT/LAMP
16WCI 5303299157
17WCI 5303292440
18SUPPORT – EVAP COVER, (2)
22WCI 215774911
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
25WCI 5303001361
28WCI 5303289062
29WCI 215314300
29WCI 215003200
30WCI 218730800
30WCI 218730700
30WCI 218157800
34WCI 218737000
35WCI 215002611
36WCI 215095900
37WCI 5303321082
38WCI 218215223
39WCI 08006983
40WCI 218374405
415308000039 Frigidaire Refrigerator Screw
43WCI 218615300
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47AWCI 218233300
47WCI 215209100
48AWCI 218487200
48WCI 215209200
49218362501 Frigidaire Refrigerator Screw
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
72WCI 218359606
74WCI 215423500
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
85WCI 218359902
89WCI 215176300
92241710601 Frigidaire Refrigerator Screw
93WCI 218362602
94SEAL-AIR DUCT COVER
94WCI 5303319993
95WCI 218663100
96WCI 215775900
97WCI 215571900
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
99GROMMET-TANK
100SUPPORT-PAN COVER
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 218368301
104SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104SUPPORT-ICE ACCESS DR
107WCI 218188800
108WCI 218710800
111WCI 215309502
112WCI 215734400
113CONNECTOR – TUBE
1145303289051 Frigidaire Refrigerator Light Switch
125WCI 215334201
