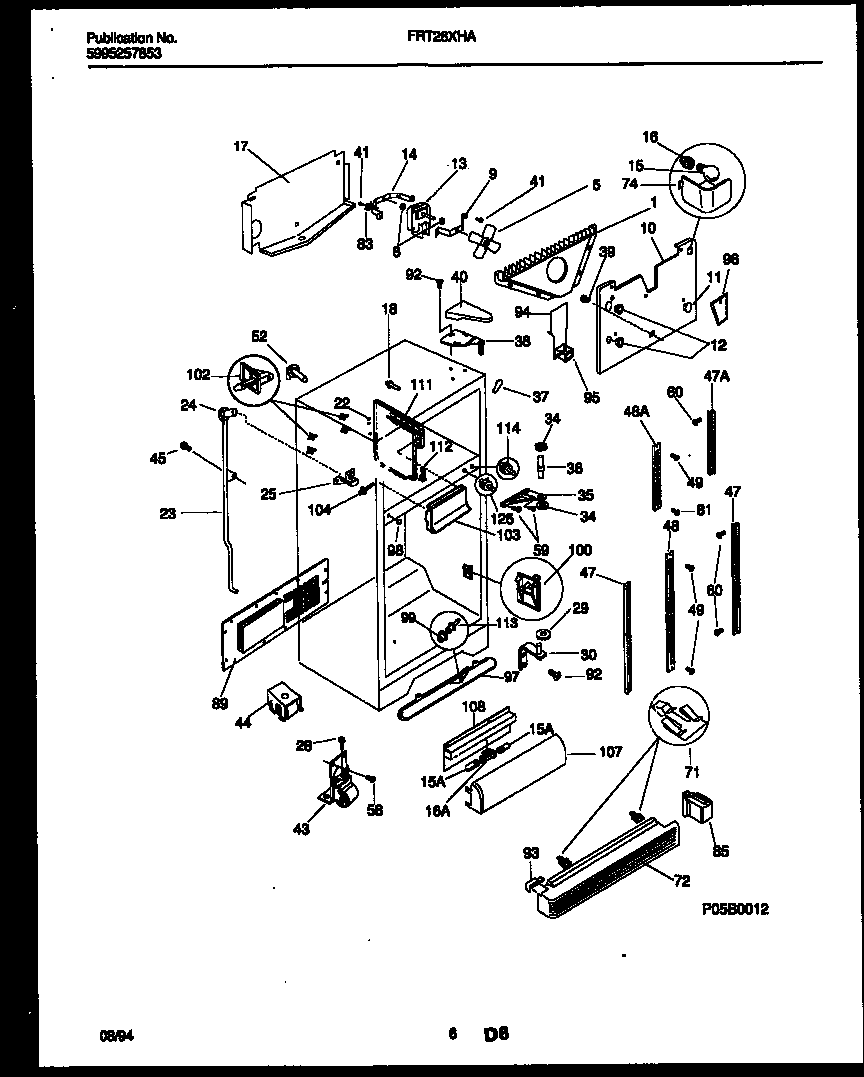

FRT26XHAD1 04 – CABINET PARTS

FRT26XHAD1 04 – CABINET PARTS

Written by

in

FRT26XHAD1 04 – CABINET PARTS

Products

PositionProduct
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303300186
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
13A215474201 Frigidaire Refrigerator Washer
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 215812200
15AWCI 218188900
16SOCKET-LIGHT/LAMP
16AWCI 5303299157
17WCI 5303292440
18SUPPORT – EVAP COVER, (2)
22WCI 215134511
23WCI 215266301
24WCI 5303207353
25AWCI 5303001361
25WCI 5303292412
28WCI 5303289062
29WCI 215744100
30ATAPPING PLATE, LH (NOT ILLUSTRATED)
30BTAPPING PLATE, RH (NOT ILLUSTRATED)
30WCI 218157800
34WCI 215095400
35WCI 215002611
36WCI 215095900
37TRIM-CABINET CORNER, ALMOND
38WCI 218158000
39WCI 08006983
40WCI 5303288946
415308000039 Frigidaire Refrigerator Screw
43ASCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43WCI 5303289059
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47AWCI 215209100
47WCI 5303292394
48AWCI 215209200
48WCI 215359600
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
52WCI 5303289294
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
71WCI 215003300
71ASCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72WCI 5303300002
74WCI 215423500
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
85WCI 215003903
89WCI 215176300
92241710601 Frigidaire Refrigerator Screw
93WCI 215327111
94ASEAL-AIR DUCT COVER
94WCI 5303292669
95WCI 215931300
96WCI 215775900
97WCI 215571900
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
99GROMMET-TANK
100SUPPORT-PAN COVER
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 215413100
104ASCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104SUPPORT-ICE ACCESS DR
107WCI 218188800
108WCI 215171800
111WCI 215309502
112WCI 215734400
113CONNECTOR – TUBE
1145303289051 Frigidaire Refrigerator Light Switch
125WCI 215334201
10902TOUCH, UP PAINT, ALMOND (NI)
