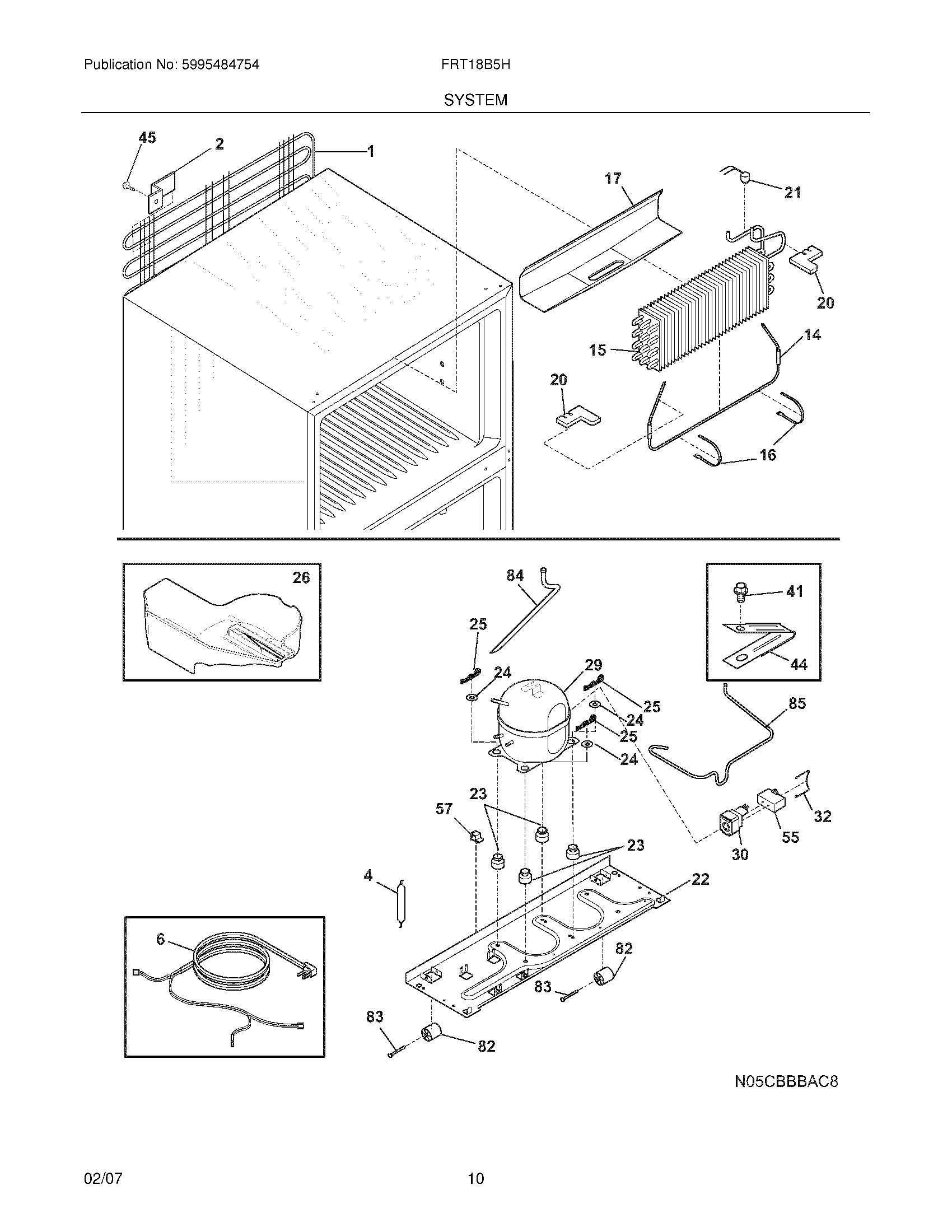

FRT8B5HB1 09 – SYSTEM

FRT8B5HB1 09 – SYSTEM

Written by

in

FRT8B5HB1 09 – SYSTEM

Products

PositionProduct
NI5303307896 Frigidaire Refrigerator Thermal Sealant Mastic
NI240388701 Frigidaire Refrigerator Wiring Harness
NISPACER-COND TUBE,BLACK
NI240396801 Frigidaire Refrigerator Tube Clamp
NI5304455650 Frigidaire Refrigerator Screw
NI240405201 Frigidaire Refrigerator Grommet
NI5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NIWCI 5304406721
NIWCI 5303918234
NIHARNESS-WIRING
NI218252201 Frigidaire Refrigerator Screw
1WCI 241674102
2WCI 241658801
45303305677 Frigidaire Replacement Filter Dryer Filters
6WCI 241678801
14240356221 Frigidaire Refrigerator Defrost Heater
155303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
20241551902 Frigidaire Refrigerator Insulation Block
215303918202 Frigidaire Refrigerator Defrost Thermostat
22241665504 Frigidaire Refrigerator Compressor Base
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26241920605 Frigidaire Refrigerator Defrost Pan
295304507765 Frigidaire Refrigerator Compressor Kit
305304491941 Frigidaire Refrigerator Starter Relay and Plug Kit
32218973501 Frigidaire Refrigerator Clamp
41240433204 Frigidaire Refrigerator Screw
445304456288 Frigidaire Refrigerator Clamp
45241500305 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
57240542601 Frigidaire Clip-WIRING Harness
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84240500801 Frigidaire Refrigerator P-1 Tube-Drain
85WCI 240346201
