FRTB7B4EMB2 05 – CABINET

FRTB7B4EMB2 05 – CABINET

Written by

in

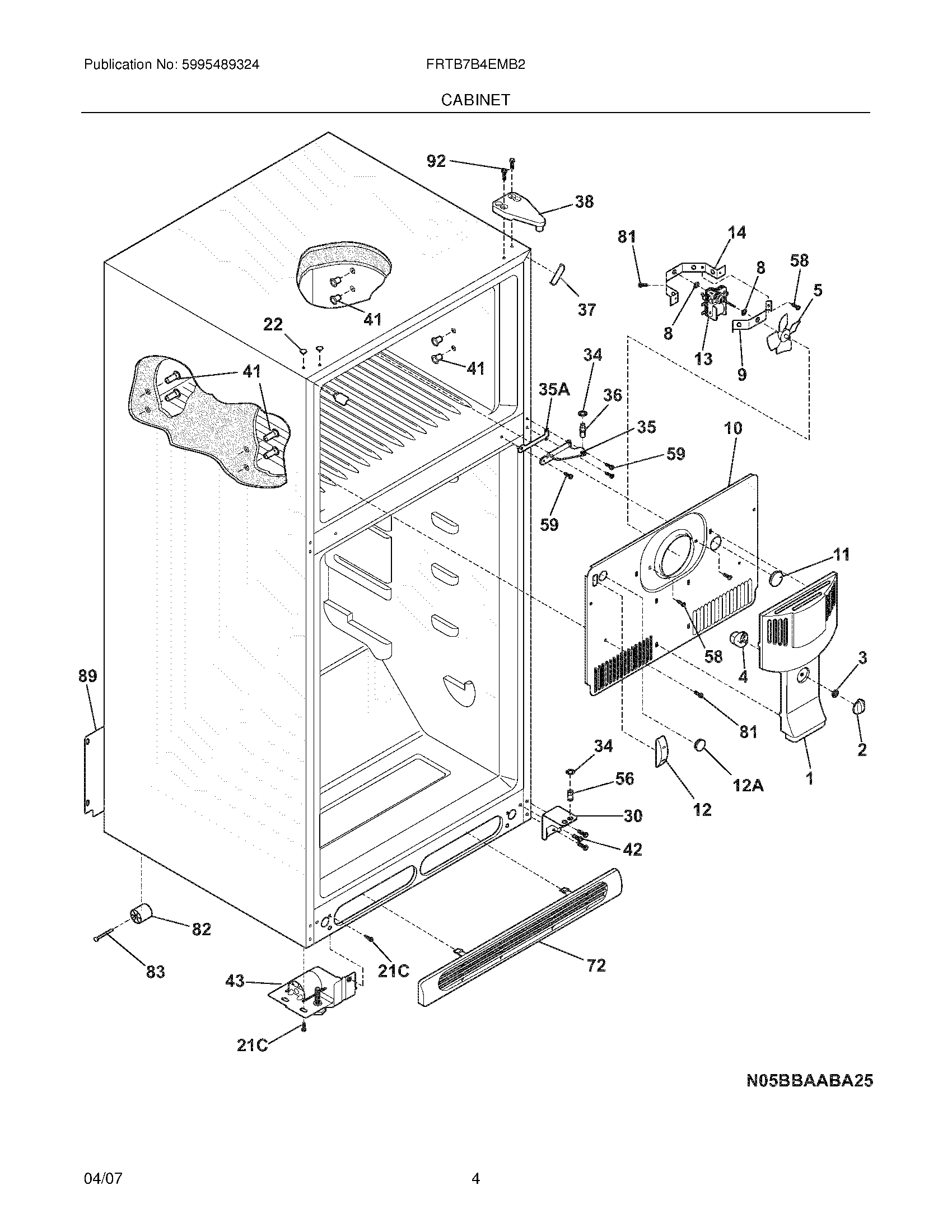

FRTB7B4EMB2 05 – CABINET

Products

Position	Product
NI	240354404 Frigidaire Refrigerator Upper Hinge Cover
NI	241889001 Frigidaire Refrigerator Roller Assembly
NI	240494001 Frigidaire Refrigerator Plug Button
NI	HARNESS-WIRING
NI	WCI 5304451343
NI	Clamp-motor wiring,nylon ,w/adhesive tape
NI	5304434189 Frigidaire Refrigerator Seal Kit
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	241500305 Frigidaire Refrigerator Screw
NI	218515401 Frigidaire Refrigerator Clip
1	241652301 Frigidaire 241259700 Evaporator Fan Cover
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
3	Nut,push-on
4	WCI 241523701
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 241652215
11	5303208309 Frigidaire Refrigerator Plug Hole
12A	WCI 240374401
12A	241586701 Frigidaire Refrigerator Plug
13	EVAP MOTOR KIT
14	240438003 Frigidaire Refrigerator Bracket & Bushing
21C	218252201 Frigidaire Refrigerator Screw
22	215774918 Frigidaire Refrigerator Button Plug
30	WCI 240357103
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	WCI 240357003
35A	240336803 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	5303918607 Frigidaire Refrigerator Corner Cabinet Trim
38	WCI 240356901
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	241889002 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	WCI 5304456287
59	240442707 Frigidaire Refrigerator Screw #10-32 X 3/4
72	240368303 Frigidaire Refrigerator Kick Plate Grille
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	241733906 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
