FRTD2021AS0 05 – SYSTEM

FRTD2021AS0 05 – SYSTEM

Written by

in

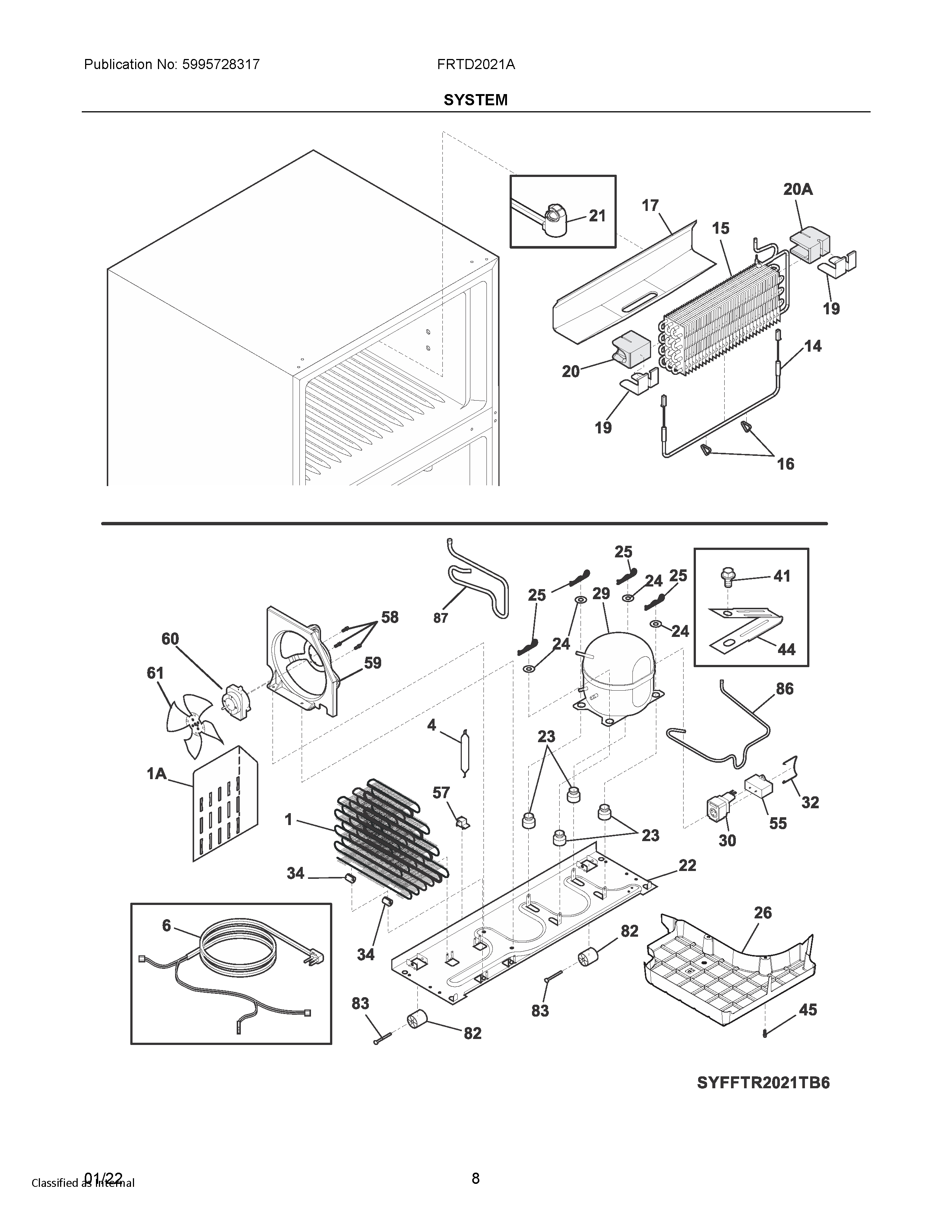

FRTD2021AS0 05 – SYSTEM

Products

PositionProduct
NI218252201 Frigidaire Refrigerator Screw
NIB218709101 Frigidaire Refrigerator Handle Mounting Screw
NIA240346701 Frigidaire Refrigerator Foam Seal Tape
NI218515401 Frigidaire Refrigerator Clip
NIB240359403 Frigidaire Refrigerator Fan Shroud Screw
1241785409 Frigidaire Refrigerator Condenser
45303305677 Frigidaire Replacement Filter Dryer Filters
65304532110 Frigidaire Refrigerator Harness
135304522303 Frigidaire Refrigerator Cover
145304532073 Frigidaire Refrigerator Heater Assembly
155304532111 Frigidaire Refrigerator Evaporator
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17A5304522267 Frigidaire Refrigerator Controller
17241801301 Frigidaire Refrigerator Drain Trough
195304532112 Frigidaire Bracket Assembly
19A5304532113 Frigidaire Bracket Assembly
20811978901 Frigidaire Refrigerator Grommet
20SUPPORT, EPS, RIGHT
20ASUPPORT, EPS, LEFT
24241812301 Frigidaire Refrigerator Compressor Mount Washer
24A5304530011 Frigidaire Refrigerator Capacitor
25242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26PAN-DEFROST
29COMPRESSOR
32297030500 Frigidaire Refrigerator Clip
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
41BHEATER, DEFROST
425308000039 Frigidaire Refrigerator Screw
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
44A5304456288 Frigidaire Refrigerator Clamp
455304455650 Frigidaire Refrigerator Screw
57240542601 Frigidaire Clip-WIRING Harness
58240569202 Frigidaire Refrigerator Screw
59241946106 Frigidaire Refrigerator Shroud-Cond Fan
61241639502 Frigidaire Refrigerator Condenser Fan Blade
64240396801 Frigidaire Refrigerator Tube Clamp
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
89215346903 Frigidaire Tube-Process
