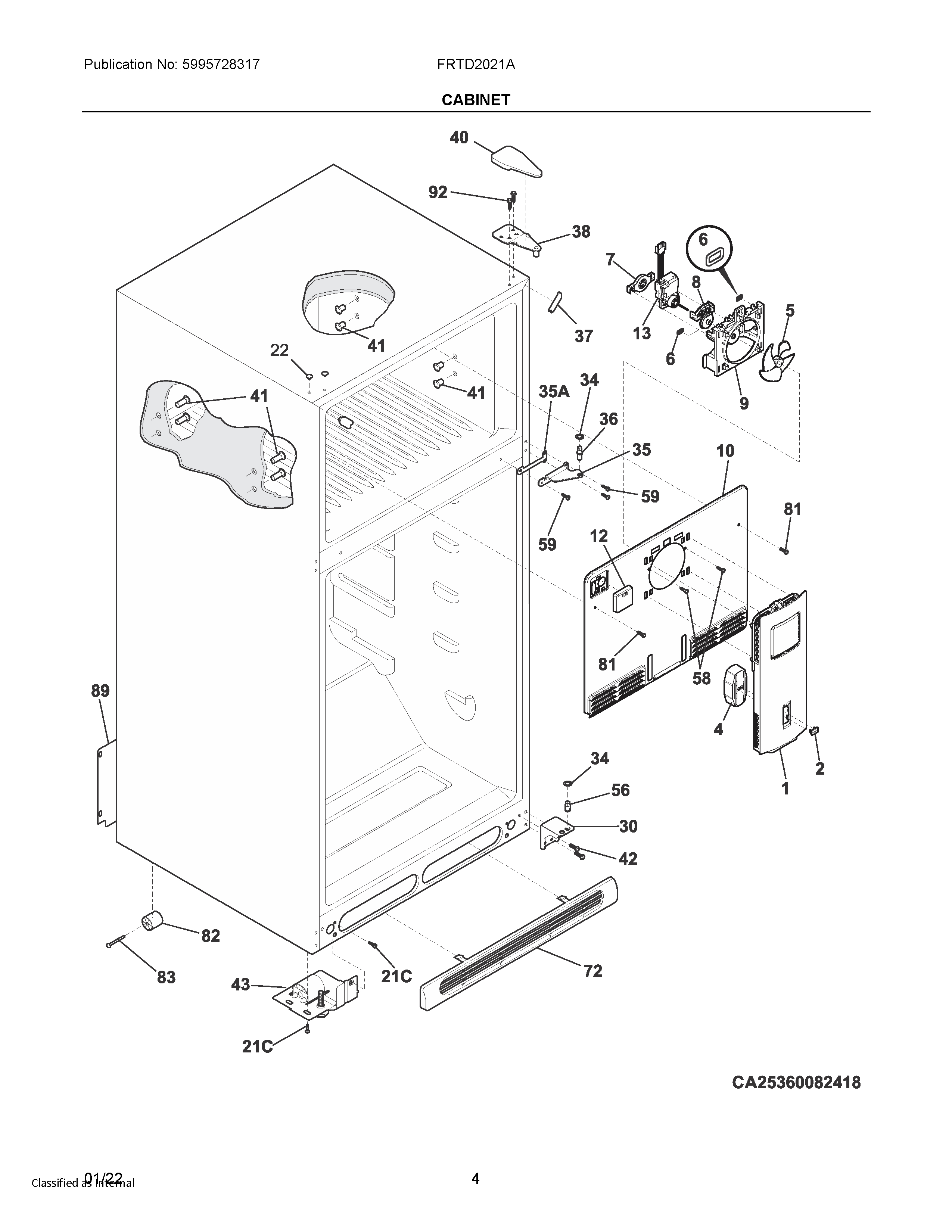

FRTD2021AW0 03 – CABINET

FRTD2021AW0 03 – CABINET

Written by

in

FRTD2021AW0 03 – CABINET

Products

Position	Product
NI	240494001 Frigidaire Refrigerator Plug Button
NIA	240568606 Frigidaire Refrigerator Coil Cover Seal
NIA	241586701 Frigidaire Refrigerator Plug
NI	218990901 Frigidaire Clip
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	241500303 Frigidaire Refrigerator Screw
NIA	218515401 Frigidaire Refrigerator Clip
NIA	241889001 Frigidaire Refrigerator Roller Assembly
NIB	5304453707 Frigidaire Oven Screw
1	242294707 Frigidaire Refrigerator Cover Assembly
2	242229401 Frigidaire Refrigerator Knob
4	242294704 Frigidaire Refrigerator Fan Cover & Damper
5	242219302 Frigidaire Refrigerator Evaporator Fan Blade
6	5304497413 Frigidaire Refrigerator Ring
7	242287501 Frigidaire Refrigerator Grommet
8	242237301 Frigidaire Grommet
9	242229301 Frigidaire Refrigerator Shroud Bracket
10	242239408 Frigidaire Cover
12	242249201 Frigidaire Refrigerator Cover
13	242077708 Frigidaire Refrigerator Motor
21C	218252201 Frigidaire Refrigerator Screw
22	215774901 Frigidaire Refrigerator Button Plug
28	5304499445 Frigidaire Refrigerator Roller Assembly
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	240313802 Frigidaire Refrigerator Center Hinge Bracket
35A	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	5304519616 Frigidaire Refrigerator Trim-Cabinet Corner
38	240313703 Frigidaire Refrigerator Hinge
40	240354401 Frigidaire Upper Hinge Cover
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	241889002 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	240569202 Frigidaire Refrigerator Screw
59	240442707 Frigidaire Refrigerator Screw #10-32 X 3/4
72	241839405 Frigidaire Refrigerator Kickplate/Grille
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
92	241710601 Frigidaire Refrigerator Screw
