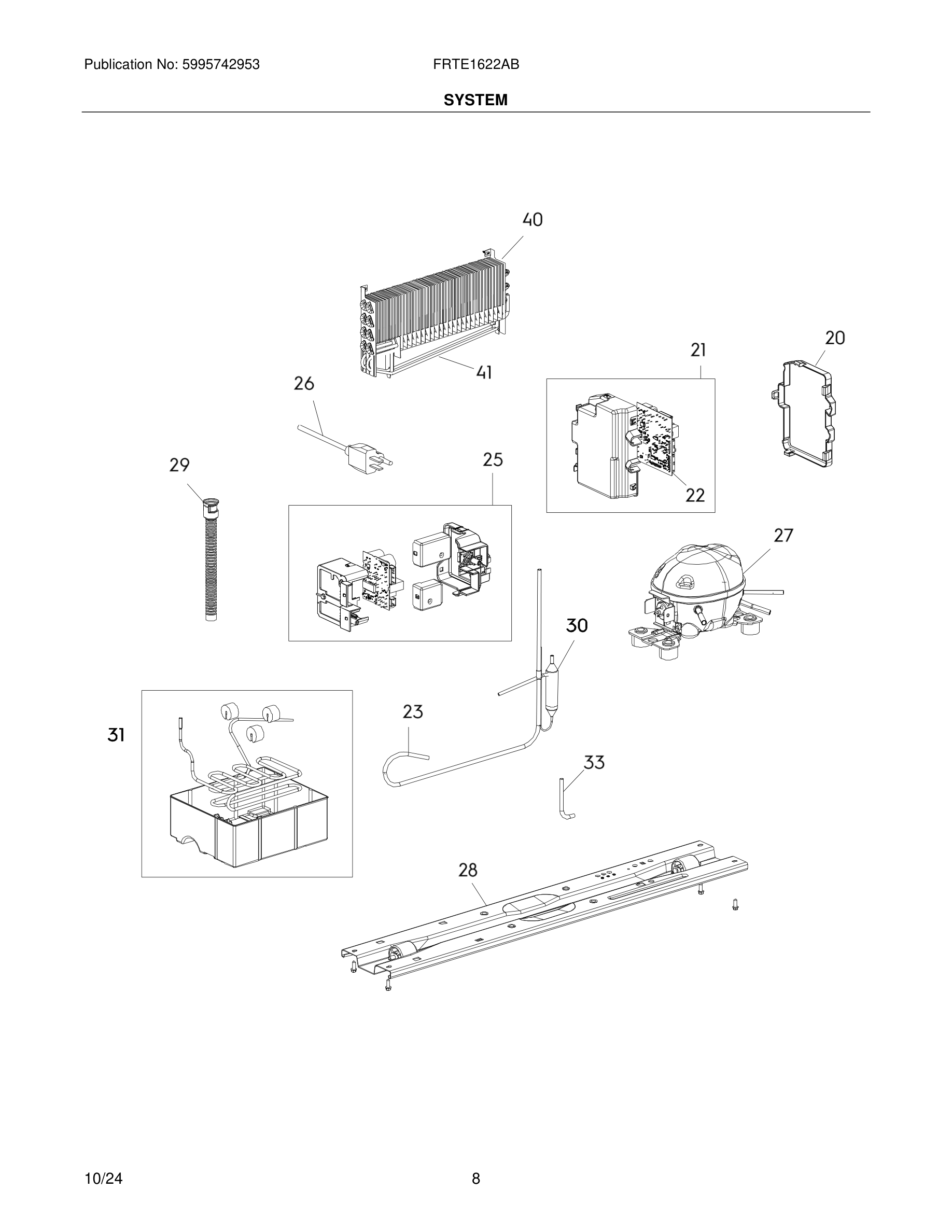

| 20 | Cover, main, control-panel |
| 21# | Main control panel, assembly |
| 22# | Main PC Board |
| 23# | Dryer, filter |
| 25# | Control-panel assembly |
| 26# | Power Cord |
| 27# | Compressor, assembly |
| 28 | Base Assembly, compressor, w/rollers |
| 29 | Tube, drain |
| 30# | Tube, suction |
| 31 | Trough, drain |
| 33# | Process Tube |
| 40# | Evaporator, assembly |
| 41# | Heater, defrost |
