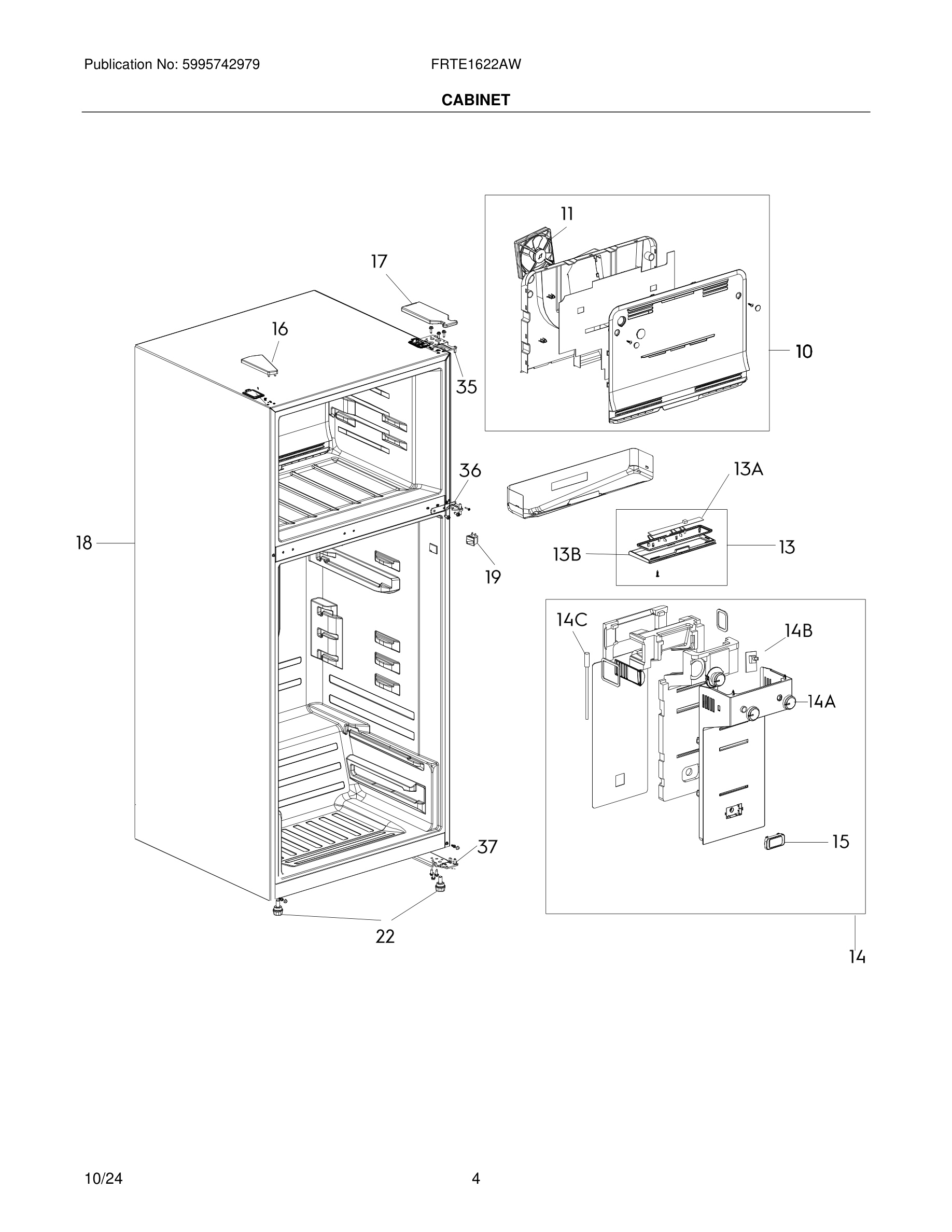

FRTE1622AW 05 – CABINET

Products

Position	Product
10#	Air duct, assembly
11#	Fan Motor Assembly, 11 #
13A#	Light Bulb, lamp
13#	Lamp Assembly
13B	Lamp Cover
14#	Air duct assembly, refrigerator
14A	Knob, control
14C#	Thermostat, temperature
14B#	Control-panel
15	Cover, air-duct
16	Cover, hinge, upper-left
17	Cover, hinge, upper-right
18	Screw, hinge
19#	5304498687 Frigidaire Refrigerator Light Lamp Switch
22	5304492659 Frigidaire Refrigerator Foot
35	Hinge, door, upper
36	Hinge, middle
37	Hinge Assembly, door, lower
