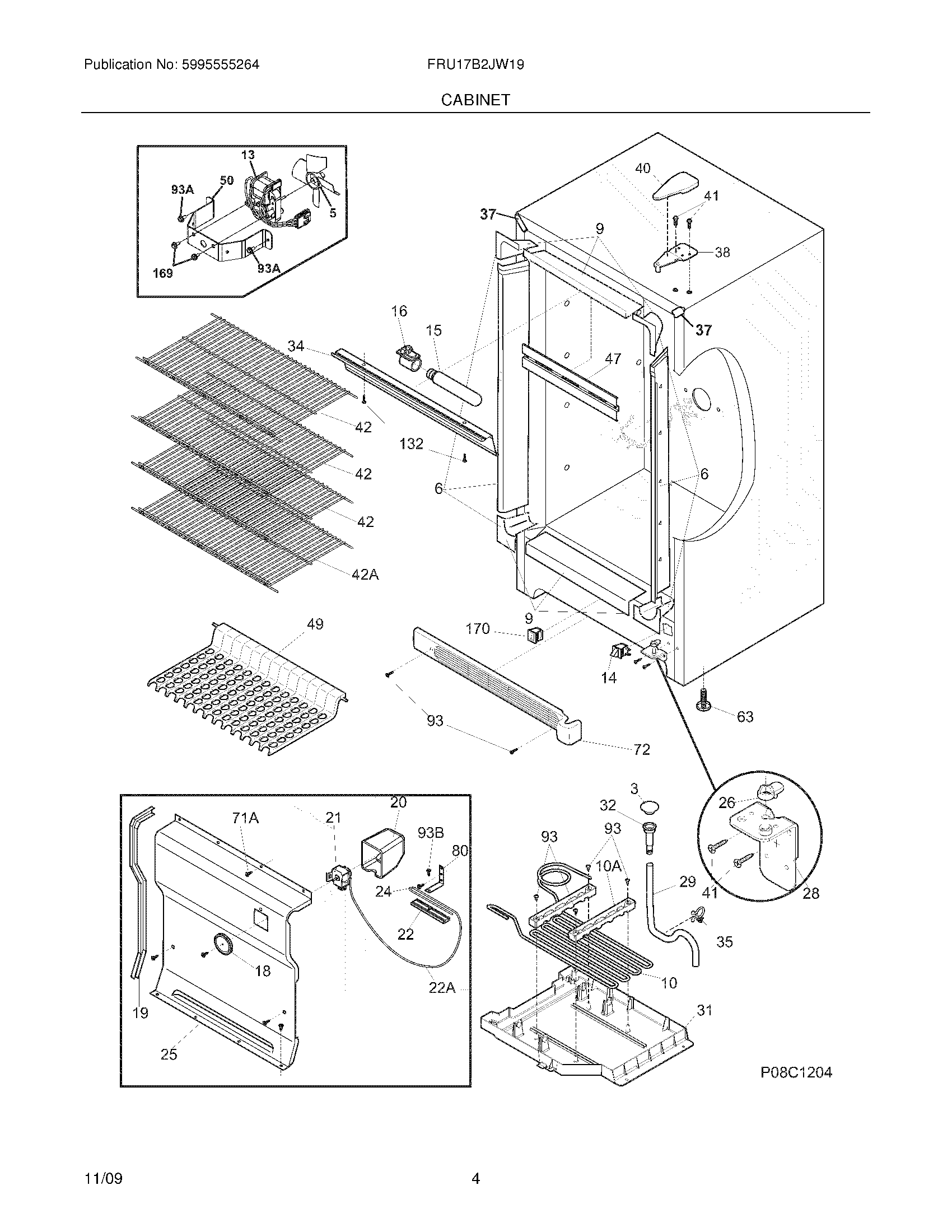

FRU17B2JW19 05 – CABINET

FRU17B2JW19 05 – CABINET

Written by

in

FRU17B2JW19 05 – CABINET

Products

Position	Product
NI	Bracket,RH leg levelor
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	WCI 216327800
NI	Bracket,LH leg levelor
NI	WCI 216697904
NI	297001704 Frigidaire Refrigerator Insulation
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 297200600
9	297200100 Frigidaire Refrigerator W/Corner Breaker Kit
10A	WCI 297177400
10	WCI 297175600
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139500 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	WCI 216204900
20	WCI 216230300
21	5304497345 Frigidaire Refrigerator Temperature Control
22A	TUBE
22	CLAMP, CAP TUBE, COLD CONTROL
24	Screw,type A ,10-24 x 3/8
25	WCI 297098850
26	WCI 216503300
28	297283900 Frigidaire Refrigerator Hinge-Bottom
29	5304512272 Frigidaire Hose Drain
31	297165800 Frigidaire Refrigerator Drain Pan
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 216816200
35	216273000 Frigidaire Refrigerator Strap
37	297273904 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	297164400 Frigidaire Refrigerator Hinge Cover
41	240578902 Frigidaire Screw Mounting Hinge
42A	WCI 297119501
42	WCI 216458400
47	216661601 Frigidaire Refrigerator Baffle Plate
49	216937701 Frigidaire Refrigerator Trivet
50	216394050 Frigidaire Refrigerator Bracket
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	WCI 297146800
72	297036907 Frigidaire Refrigerator Grille Kickplate
80	WCI 06594601
93B	216036601 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
93A	241853202 Frigidaire Refrigerator Screw
132	WCI 5304460601
169	216912401 Frigidaire Refrigerator Screw
170	297280400 Frigidaire Refrigerator Valve
