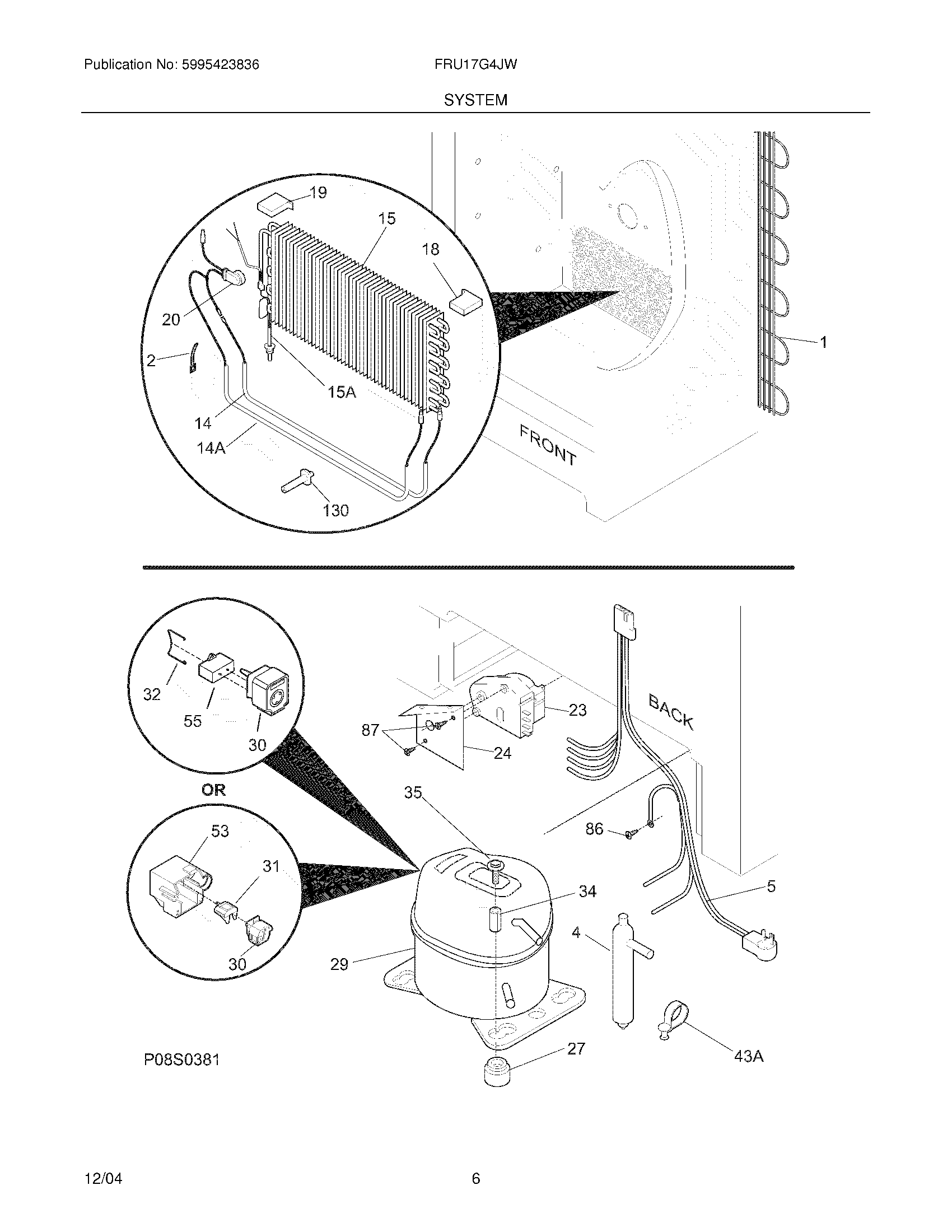

FRU17G4JW10 07 – SYSTEM

FRU17G4JW10 07 – SYSTEM

Written by

in

FRU17G4JW10 07 – SYSTEM

Products

PositionProduct
NIWCI 216502500
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
55304492766 Frigidaire Refrigerator Harness Kit
14AWCI 216730500
14216730700 Frigidaire Refrigerator Defrost Heater
15297414901 Frigidaire Refrigerator Evaporator
15A297217900 Frigidaire Refrigerator Suction Tube
18WCI 216727600
19WCI 216727700
20DEFROST THERMOSTAT
235304518034 Frigidaire Refrigerator Defrost Timer
24WCI 08016580
27216498900 Frigidaire Refrigerator Grommet
295304507767 Frigidaire Refrigerator Compressor Kit
30216954200 Frigidaire Refrigerator Start Relay Device
32216954300 Frigidaire Refrigerator Clip
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A297315800 Frigidaire Refrigerator Clip
55WCI 218909911
86216036601 Frigidaire Refrigerator Screw
87SCREW
130297244700 Frigidaire Refrigerator Support
