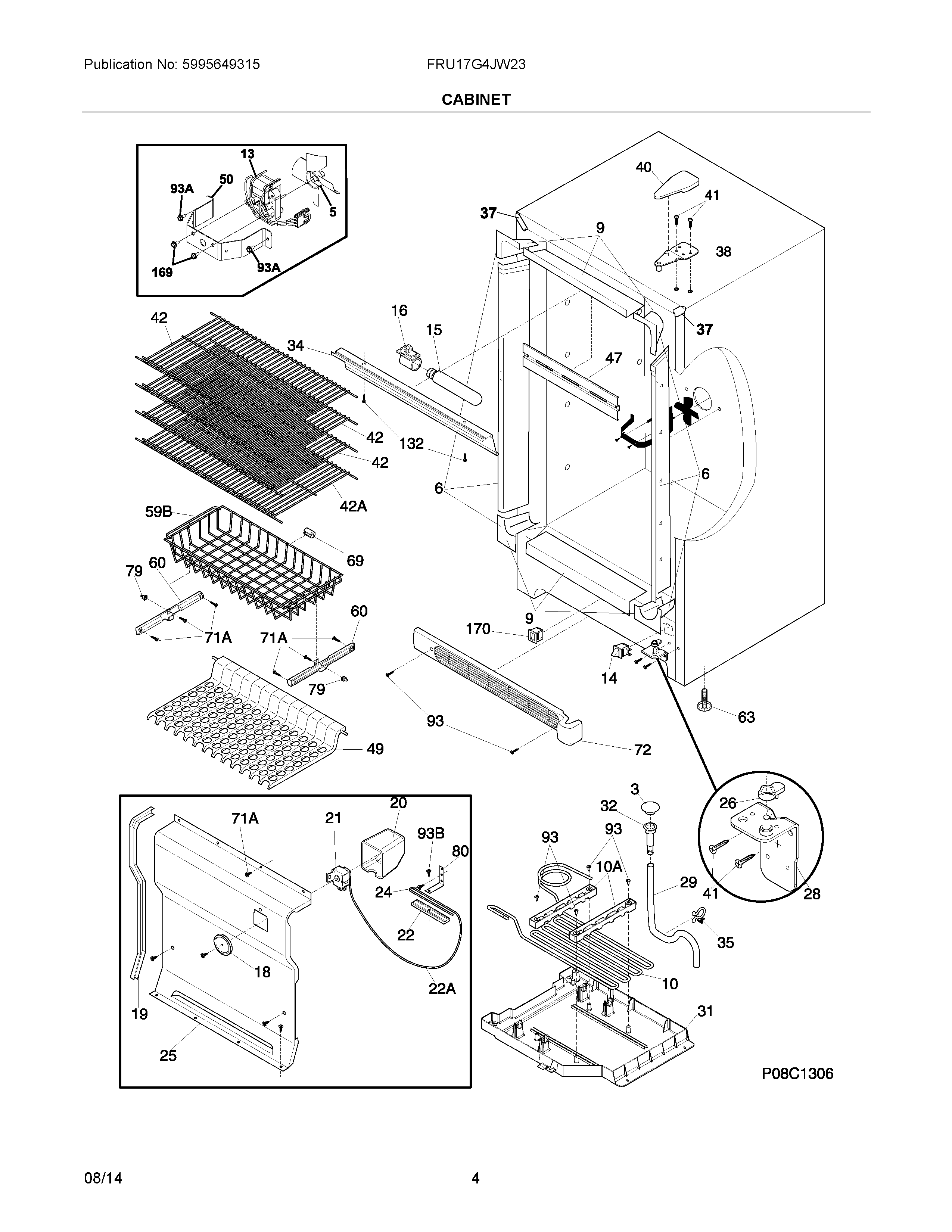

FRU17G4JW23 03 – CABINET

Products

Position	Product
NI	297001704 Frigidaire Refrigerator Insulation
NI	216502400 Frigidaire Refrigerator Grommet Unit
NIA	Bracket,LH leg levelor
NI	WCI 5303313703
NIB	Bracket,RH leg levelor
NI	WCI 216697904
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 297200600
9	297200100 Frigidaire Refrigerator W/Corner Breaker Kit
10	WCI 297334500
10A	WCI 297177400
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	297415203 Frigidaire Refrigerator Control
22	CLAMP, CAP TUBE, COLD CONTROL
22A	TUBE
24	Screw,type A ,10-24 x 3/8
25	WCI 297099250
26	WCI 216503300
28	297283900 Frigidaire Refrigerator Hinge-Bottom
29	5304512272 Frigidaire Hose Drain
31	297165800 Frigidaire Refrigerator Drain Pan
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 216816200
35	216273000 Frigidaire Refrigerator Strap
37	297273904 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	297164400 Frigidaire Refrigerator Hinge Cover
41	240578902 Frigidaire Screw Mounting Hinge
42	WCI 297166800
42A	WCI 297119501
47	216661601 Frigidaire Refrigerator Baffle Plate
49	216937701 Frigidaire Refrigerator Trivet
50	216394050 Frigidaire Refrigerator Bracket
59A	STOP-BASKET, (2)
59	WCI 297344000
59B	WCI 297343800
60	297013500 Frigidaire Refrigerator Slide
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	Screw,8-18AB x.470 QX
72	297036907 Frigidaire Refrigerator Grille Kickplate
80	WCI 06594601
93B	216036601 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
93A	241853202 Frigidaire Refrigerator Screw
132	WCI 5304460601
169	216912401 Frigidaire Refrigerator Screw
170	297280400 Frigidaire Refrigerator Valve
