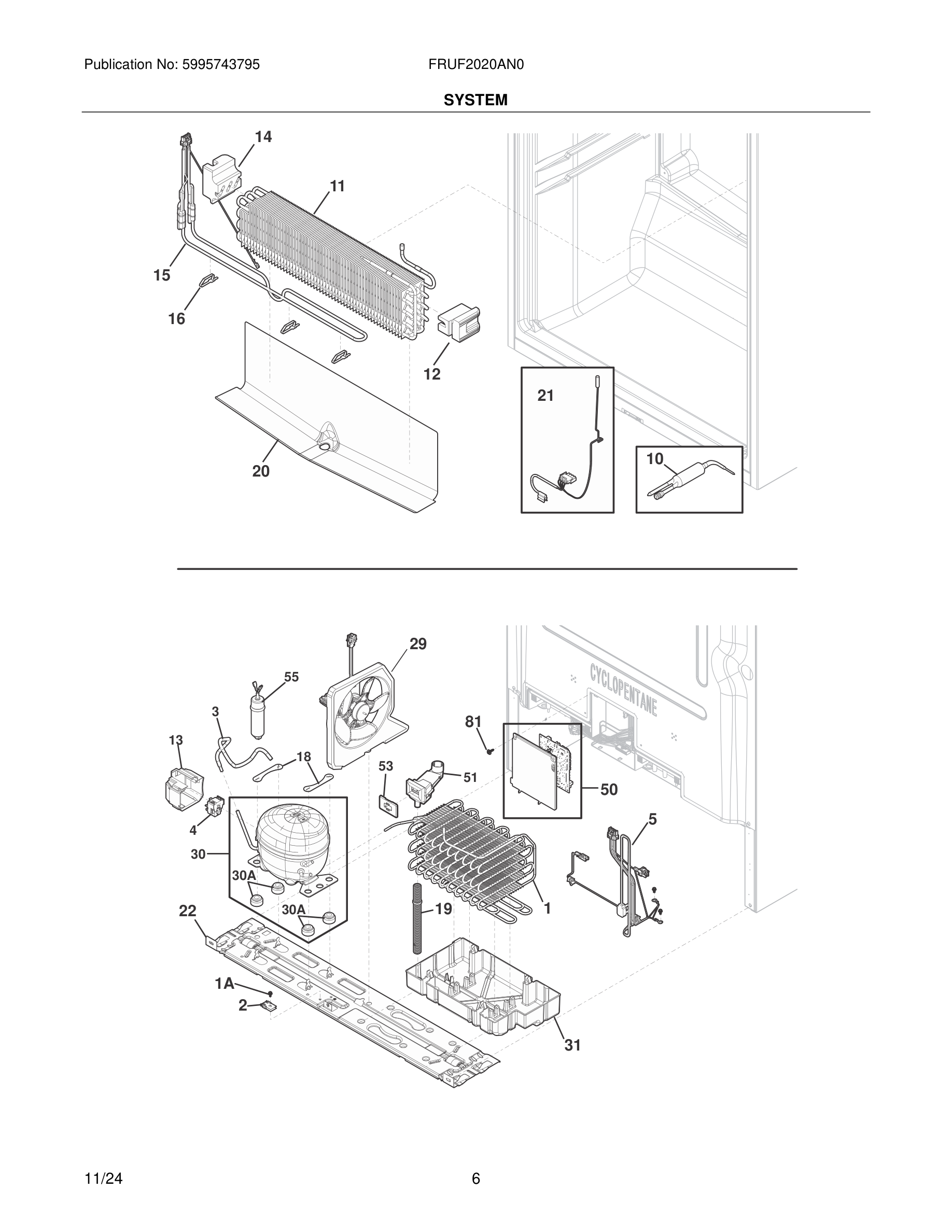

FRUF2020AN0 07 – SYSTEM

Products

Position	Product
*	241500305 Frigidaire Refrigerator Screw
*	5304523801 Frigidaire Screw Assembly
*	WCI 30534600
*	TAPE-ALUMINUM, 32
*	5304464772 Frigidaire Refrigerator Wire Tie
1A	240433204 Frigidaire Refrigerator Screw
1#	5304530007 Frigidaire Refrigerator Condenser
2	5304456288 Frigidaire Refrigerator Clamp
3#	5304519693 Frigidaire Tube
4#	Starter, compressor
5#	5304531478 Frigidaire Refrigerator Harness
10#	A19676501 Frigidaire Refrigerator Drier Filter
11	5304523830 Frigidaire Refrigerator Evaporator
12	5304523831 Frigidaire Support Refrigerator
13	5304522303 Frigidaire Refrigerator Cover
14	SUPPORT, EVAPORATOR, LH
15#	5304524953 Frigidaire Refrigerator Heater
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
18	5304524607 Frigidaire Clamp
19	5304525042 Frigidaire Refrigerator Drain Tube
20	5304523720 Frigidaire Refrigerator Trough
20*	5304522179 Frigidaire Tape
21#	5304523788 Frigidaire Defrost Thermostat
22	5304523693 Frigidaire Refrigerator Base Assembly
29#	5304535399 Frigidaire Condenser Fan Shroud Assembly
29*	240569202 Frigidaire Refrigerator Screw
30A	811978901 Frigidaire Refrigerator Grommet
30#	COMPRESSOR
31	5304519674 Frigidaire Refrigerator Pan
50#	Control Board, main, w/housing
51	5304530111 Frigidaire Refrigerator Drain Jumper
53	COVER, DRAIN JUMPER
55#	5304530011 Frigidaire Refrigerator Capacitor
81	5304519765 Frigidaire Refrigerator Screw
