FSC23BBDSB0 13 – SYSTEM

FSC23BBDSB0 13 – SYSTEM

Written by

in

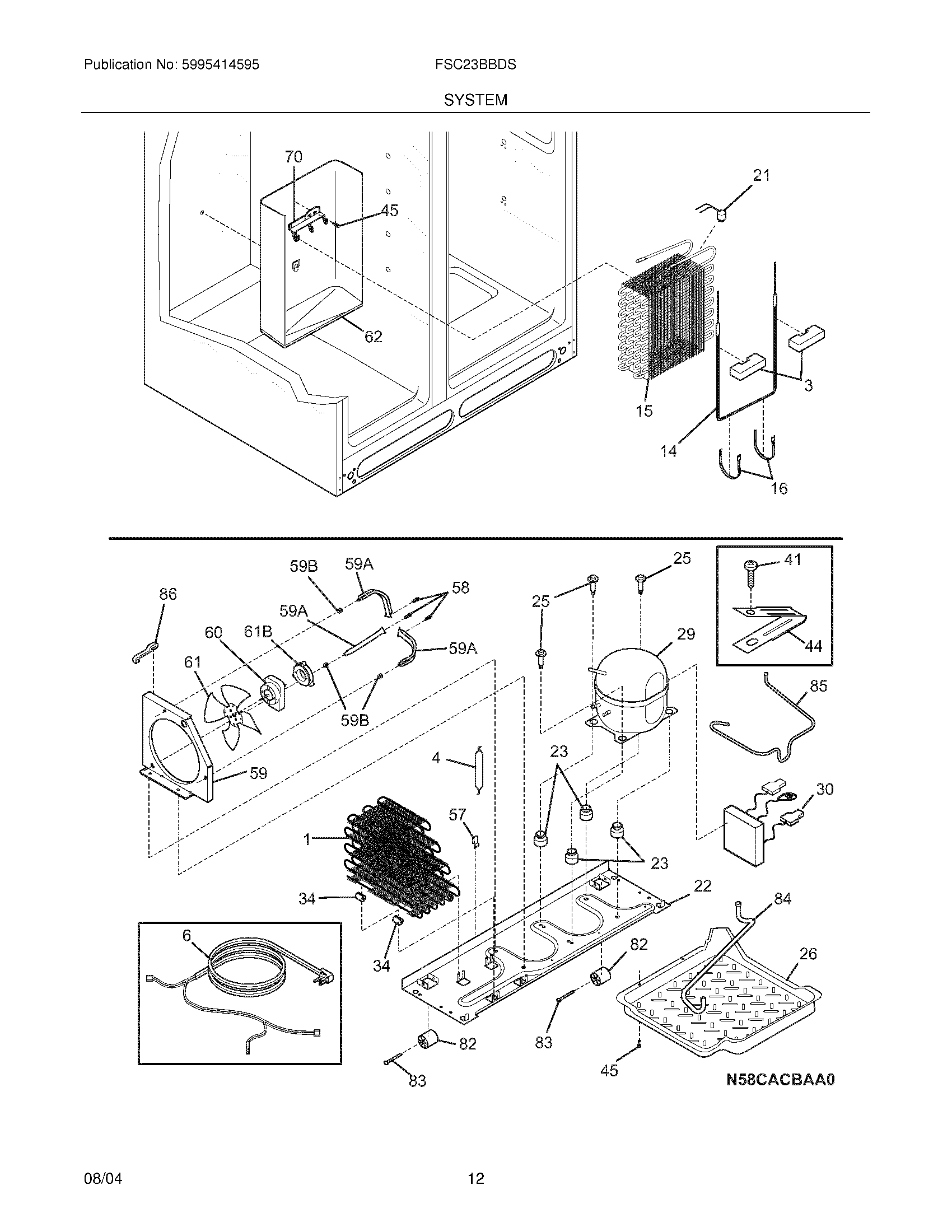

FSC23BBDSB0 13 – SYSTEM

Products

PositionProduct
NI218252201 Frigidaire Refrigerator Screw
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NIWCI 5303918222
NI241510802 Frigidaire Refrigerator Wiring Harness
NIWCI 241519901
NIWCI 240569501
NIWCI 241543801
NIWCI 5303918300
15304526057 Frigidaire Refrigerator Condenser
3218679614 Frigidaire Refrigerator Evaporator Coil Block
45303305677 Frigidaire Replacement Filter Dryer Filters
6241516904 Frigidaire Refrigerator Service Cord
14242044113 Frigidaire Refrigerator Defrost Heater Assembly
155303918284 Frigidaire Refrigerator Evaporator Kit P-1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
215303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22WCI 240330008
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25Screw-compressor mtg,hex washer head ,
26WCI 241509201
295304475104 Frigidaire Refrigerator Compressor Kit
30241577501 Frigidaire Refrigerator Inverter
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
57240542601 Frigidaire Clip-WIRING Harness
58240569202 Frigidaire Refrigerator Screw
59BWCI 240346601
59A240346501 Frigidaire Refrigerator Support Bracket
59WCI 240315501
605304448483 Frigidaire Refrigerator Condenser Fan Motor
61BWCI 240564001
61241639502 Frigidaire Refrigerator Condenser Fan Blade
625304481642 Frigidaire Refrigerator Trough
70218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84241957901 Frigidaire Refrigerator Tube-Drain
85241856901 Frigidaire Refrigerator Tube-Connector
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
