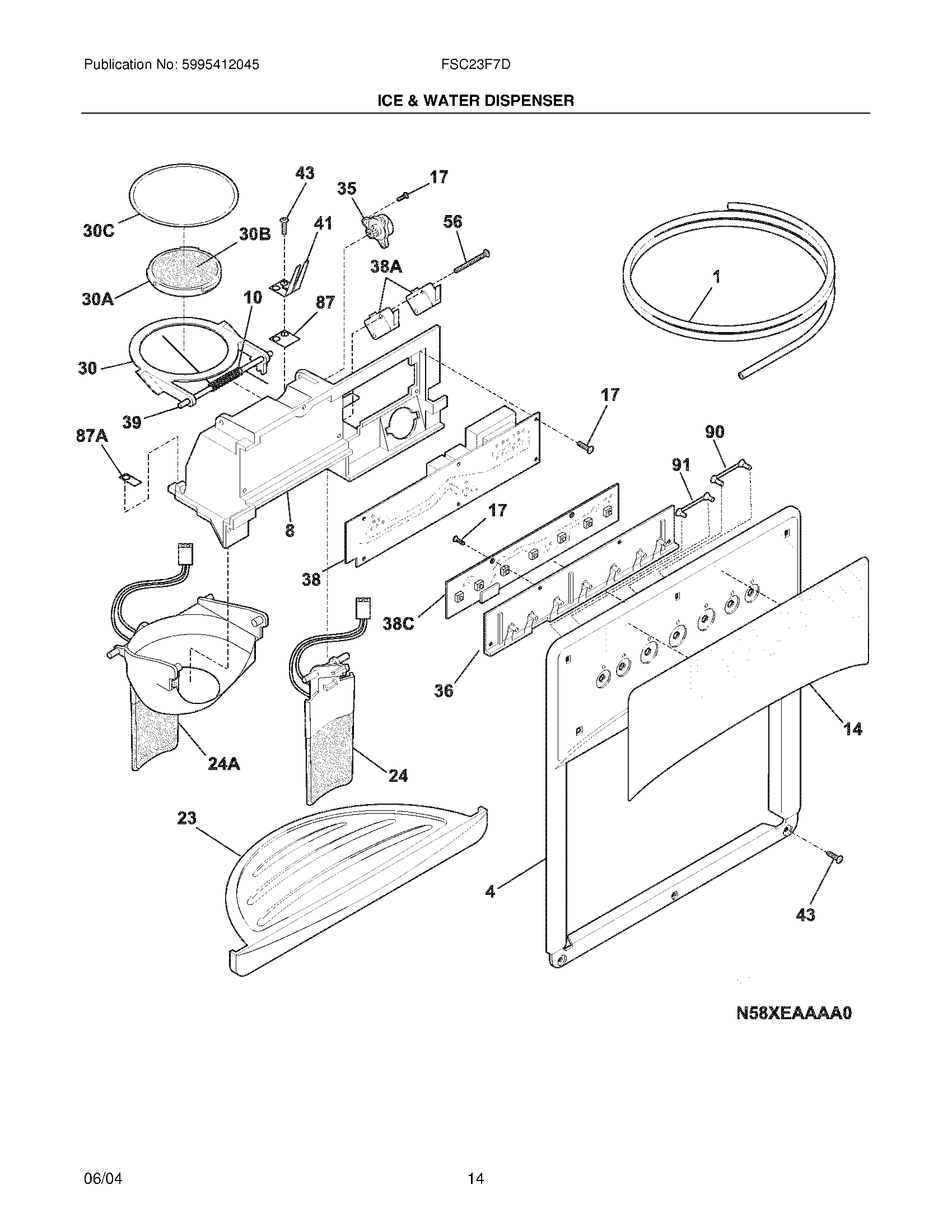

FSC23F7DB0 15 – ICE & WATER DISPENSER

Products

Position	Product
NI	218976903 Frigidaire Refrigerator Water Inlet Tube P-1
NI	WCI 218976911
NI	WCI 218976912
NI	WCI 5304426535
NI	5303918256 Frigidaire Refrigerator Heater Kit Dispenser
1	218976409 Frigidaire Refrigerator Water Tube
4	WCI 5304422012
8	WCI 5304433616
10	241688901 Frigidaire Refrigerator Torsion Spring
14	WCI 240323957
17	241679801 Frigidaire Screw
23	241649003 Frigidaire Refrigerator Drip Tray
24A	241682303 Frigidaire Refrigerator Actuator
24	241685703 Frigidaire Refrigerator Lighted Water Dispenser Actuator
30A	241688501 Frigidaire Refrigerator Door Center
30	241688401 Frigidaire Ice Door Bracket
30B	241688601 Frigidaire Refrigerator Door Insulation
30C	241688701 Frigidaire Refrigerator Door Seal
35	241689301 Frigidaire Refrigerator Rotary Damper
36	WCI 5304421824
38	WCI 5304433619
38C	WCI 5304430811
38C	241708306 Frigidaire Refrigerator Control Board
38A	241689106 Frigidaire Refrigerator Micro Switch
39	241688801 Frigidaire Refrigerator Pin-Hinge
41	241689001 Frigidaire Refrigerator Actuator Spring
43	WCI 215296300
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
87A	241688301 Frigidaire Refrigerator Bearing Plate
87	241688302 Frigidaire Refrigerator Bearing Plate
90	WCI 5304421831
91	WCI 5304421850
