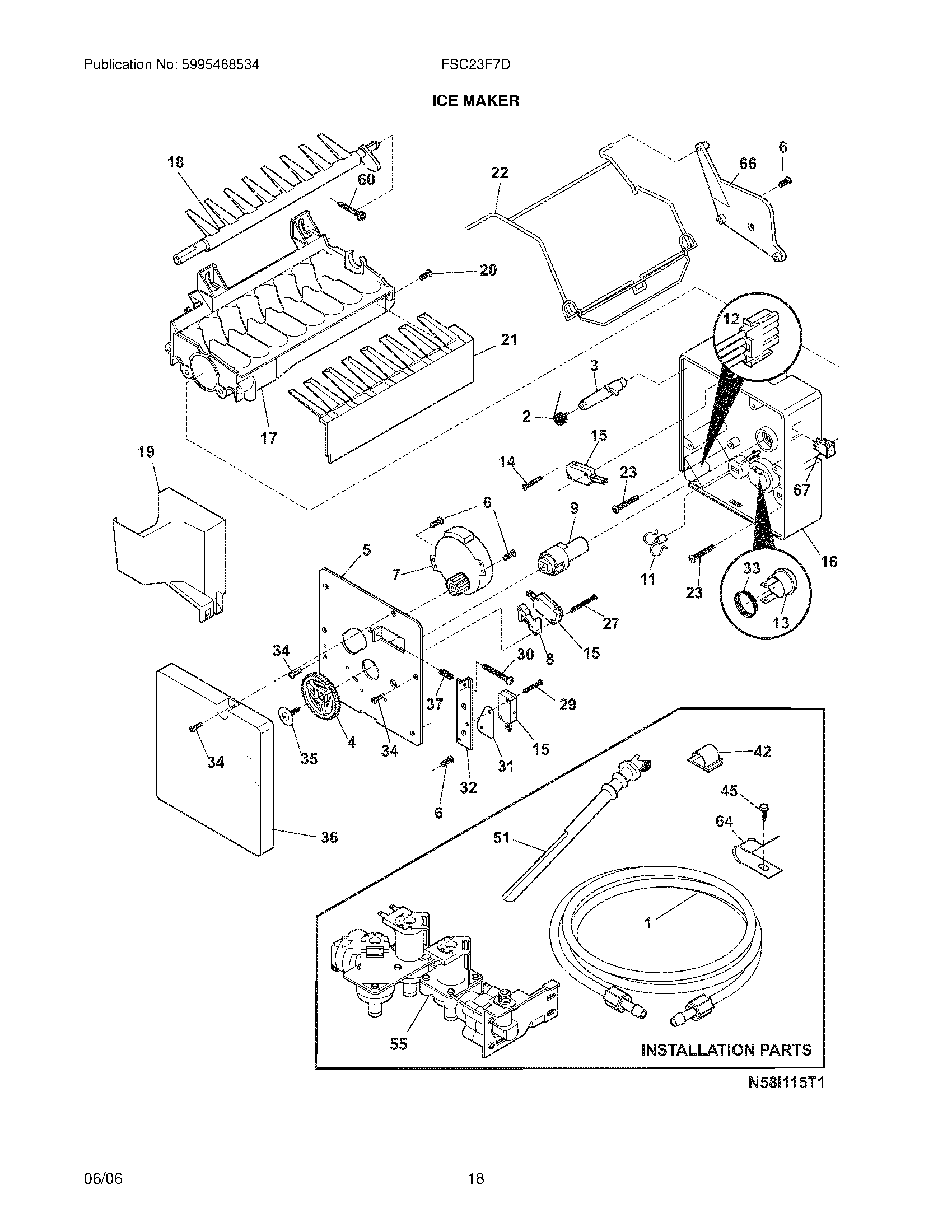

FSC23F7DB8 19 – ICE MAKER

FSC23F7DB8 19 – ICE MAKER

Written by

in

FSC23F7DB8 19 – ICE MAKER

Products

PositionProduct
NI218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NIWCI 218976917
NI5303918344 Frigidaire Refrigerator Kit Ice Maker
NI241583301 Frigidaire Refrigerator P-1 Deflector-Air
NI240561701 Frigidaire Refrigerator Seal
NI218709101 Frigidaire Refrigerator Handle Mounting Screw
NI240363602 Frigidaire Refrigerator Shoulder Screw
NIAdapter-water supply,nut & sleeve ,
NI240542901 Frigidaire Water Valve Cap
NI218976903 Frigidaire Refrigerator Water Inlet Tube P-1
NIWCI 5304455843
1218976409 Frigidaire Refrigerator Water Tube
2WCI 5304436616
3WCI 5304436610
45304469403 Frigidaire Gear
5WCI 5304436604
6218359202 Frigidaire Refrigerator Screw
75304469407 Frigidaire Refrigerator Ice Maker Motor
8SPACER-HOLD SWITCH
9WCI 3206313
11WCI 5304436618
12WCI 5304436614
13WCI 5304436613
14WCI 5304455676
155304456667 Frigidaire Refrigerator Micro Switch
16WCI 5304436609
18WCI 5304436607
19WCI 5304436606
205304455677 Frigidaire Screw
215304473031 Frigidaire Refrigerator Ice Stripper
22WCI 5304436602
23WCI 5304455678
27WCI 5304455681
29SCREW,4-24 X 0.750 ,(6)
30WCI 5304455682
31WCI 3206342
32WCI 5304455683
33WCI 5304436615
34WCI 5304455684
35WCI 5304455685
36WCI 5304436605
37WCI 5304408583
42218515403 Frigidaire Refrigerator Clip-Grille
455304455650 Frigidaire Refrigerator Screw
51241796406 Frigidaire Refrigerator Water Fill Tube
55242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
605304455852 Frigidaire Refrigerator Screw
645304455846 Frigidaire Refrigerator Clamp
66WCI 5304436611
675304465210 Frigidaire Refrigerator Switch Kit
