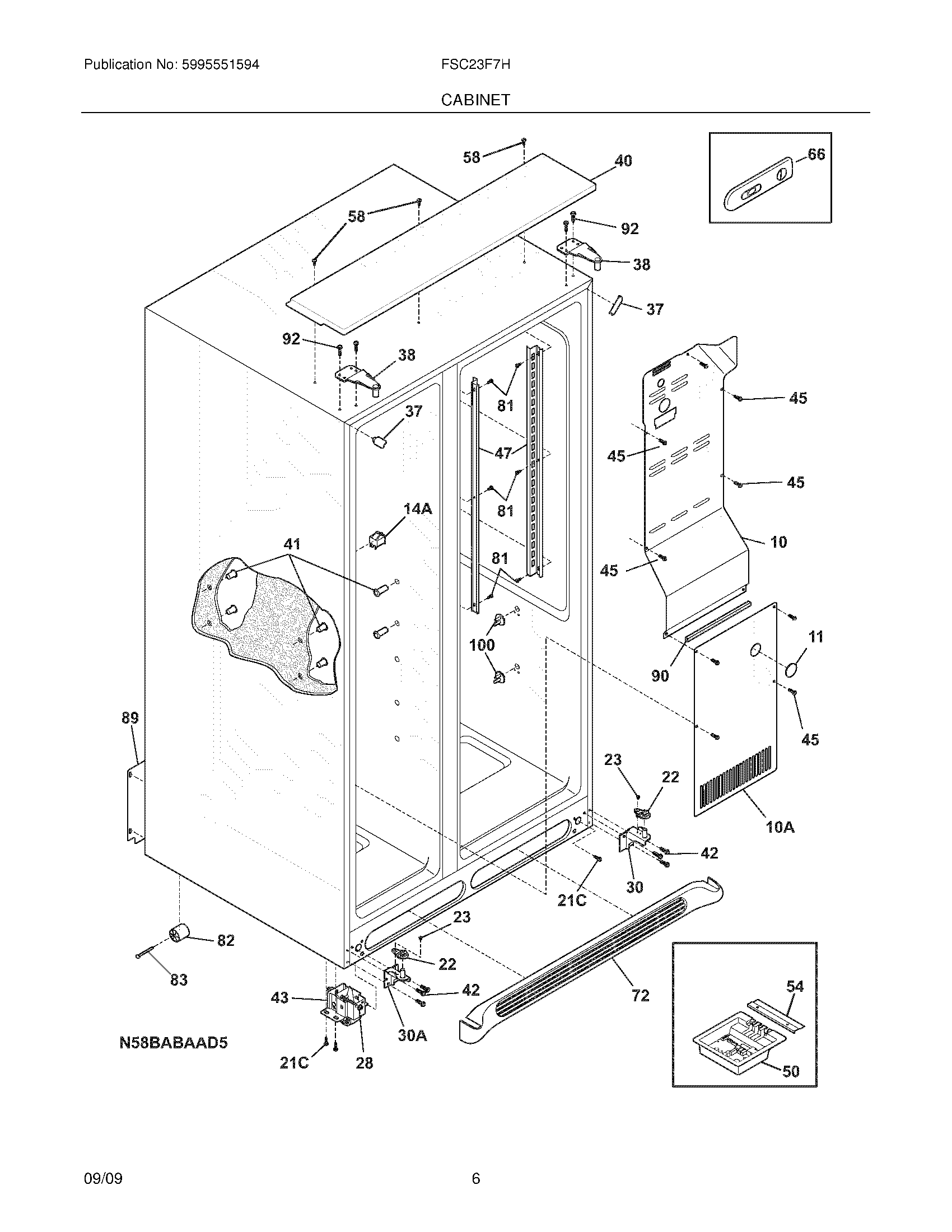

FSC23F7HBA 07 – CABINET

Products

Position	Product
NI	WCI 241532501
NI	WCI 241524801
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	WCI 241591701
NI	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
10A	241719711 Frigidaire Refrigerator Evaporator Coil Cover
10	WCI 241509804
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
21C	218252201 Frigidaire Refrigerator Screw
22	241856502 Frigidaire Door Closer Plate
23	WCI 240402702
30A	242034604 Frigidaire Refrigerator Lower Hinge Bracket
30	242034601 Frigidaire Refrigerator Bracket-Lower Hinge
37	242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38	240327207 Frigidaire Refrigerator Bracket Upper Hinge
40	WCI 241555103
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	241513001 Frigidaire Refrigerator Shelf Mounting Channel
50	WCI 241511111
54	241532401 Frigidaire Refrigerator Channel
58	218781101 Frigidaire Handle Screw
66	WCI 241513601
72	240324411 Frigidaire Grille Kickplate
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
92	241710601 Frigidaire Refrigerator Screw
100	CRISPER COVER SUPPORT
100	241993001 Frigidaire Refrigerator Left Crisper Cover Support
