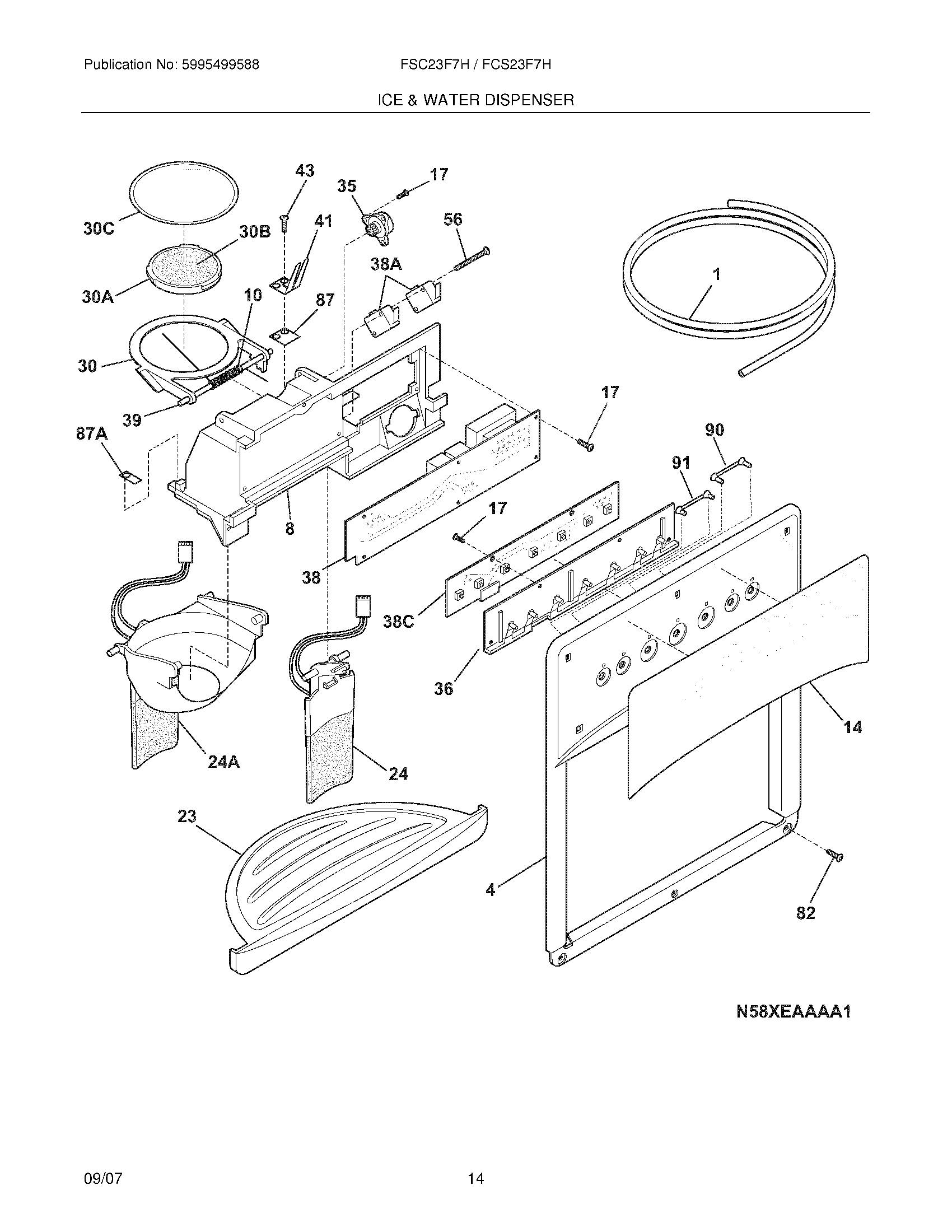

FSC23F7HW5 15 – ICE & WATER DISPENSER

Products

Position	Product
NI	218515403 Frigidaire Refrigerator Clip-Grille
NI	218976418 Frigidaire Refrigerator Water Inlet Tube
NI	218976421 Frigidaire Refrigerator Water Inlet Tube
NI	240561701 Frigidaire Refrigerator Seal
NI	241850615 Frigidaire Ice Maker Fill Tube Assembly
NI	5303918256 Frigidaire Refrigerator Heater Kit Dispenser
NI	WCI 241686201
1	218976409 Frigidaire Refrigerator Water Tube
4	WCI 241678701
8	WCI 241680501
10	241688901 Frigidaire Refrigerator Torsion Spring
14	WCI 240323955
17	241679801 Frigidaire Screw
23	241649007 Frigidaire Drip Tray Assembly (Grey)
24	241685701 Frigidaire Refrigerator White Water Dispenser Actuator
24A	WCI 241682301
30C	241688701 Frigidaire Refrigerator Door Seal
30B	241688601 Frigidaire Refrigerator Door Insulation
30A	241688501 Frigidaire Refrigerator Door Center
30	241688401 Frigidaire Ice Door Bracket
35	241689301 Frigidaire Refrigerator Rotary Damper
36	WCI 241680301
38C	WCI 241680001
38A	241689106 Frigidaire Refrigerator Micro Switch
38	WCI 241708102
38C	241708306 Frigidaire Refrigerator Control Board
39	241688801 Frigidaire Refrigerator Pin-Hinge
41	241689001 Frigidaire Refrigerator Actuator Spring
43	WCI 215296301
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
82	5304453707 Frigidaire Oven Screw
87A	241688301 Frigidaire Refrigerator Bearing Plate
87	241688302 Frigidaire Refrigerator Bearing Plate
90	WCI 241680201
91	WCI 241680101
