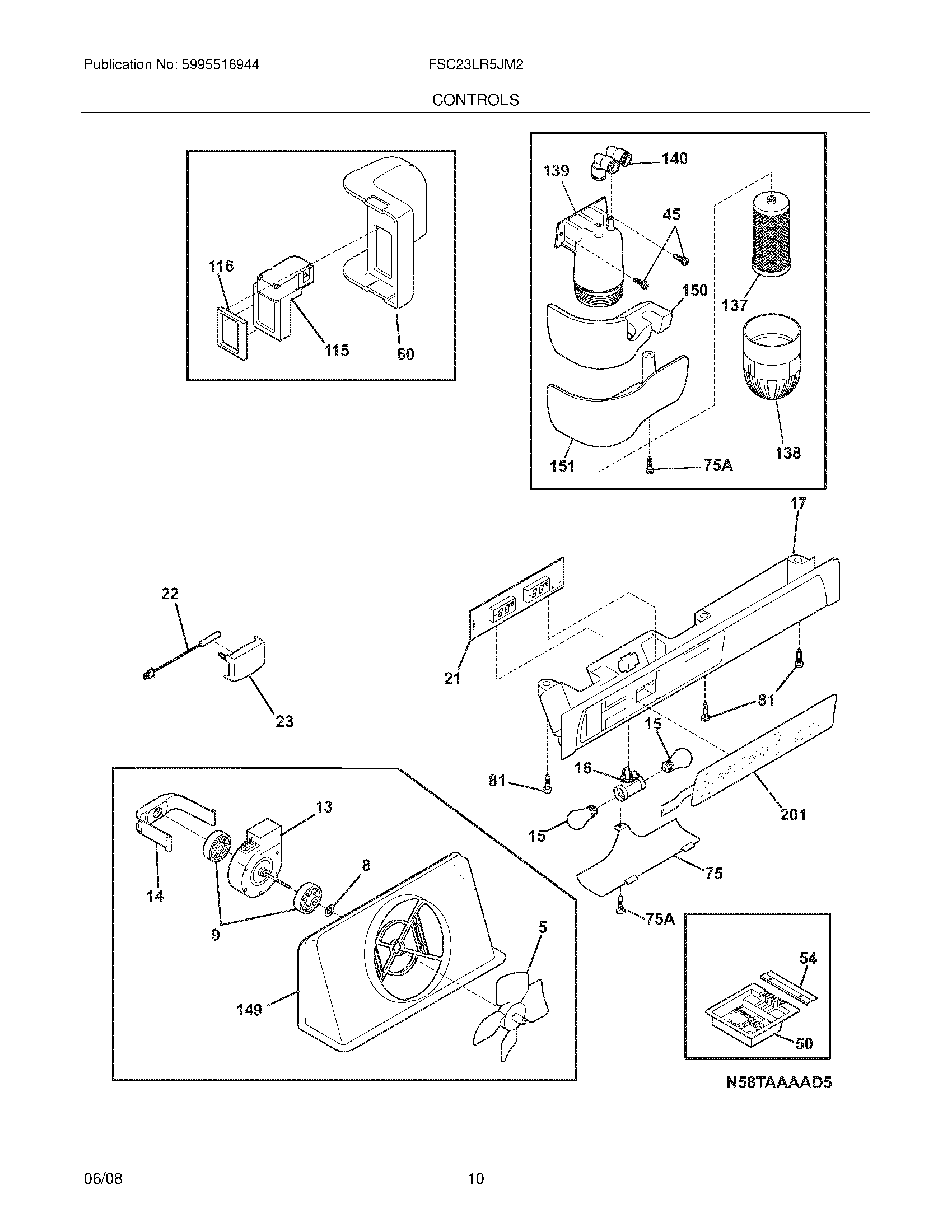

FSC23LR5JM2 11 – CONTROLS

Products

Position	Product
NI	WCI 241537401
NI	241510802 Frigidaire Refrigerator Wiring Harness
NI	WCI 241532501
NI	3205266 Frigidaire Refrigerator Edge Protector
NI	WCI 241510501
NI	WCI 241524802
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241518301 Frigidaire Refrigerator Bushing
13	MOTOR,EVAPORATOR FAN
14	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15	5304517886 Frigidaire Refrigerator Light
16	241622802 Frigidaire Refrigerator Socket-Light
17	WCI 241522801
21	240596804 Frigidaire Refrigerator Control
22	240597220 Frigidaire Sensor
23	241512901 Frigidaire Refrigerator Cover-Sensor
45	241500303 Frigidaire Refrigerator Screw
50	WCI 241511111
54	241532401 Frigidaire Refrigerator Channel
60	WCI 241510301
75A	5304455650 Frigidaire Refrigerator Screw
75	WCI 241517802
81	218843801 Frigidaire Refrigerator Screw
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
137	218710300 Frigidaire Refrigerator Water Filter Wrench
137	WFCB WATER FILTER PURESOURCE 4"
138	218904301 Frigidaire Refrigerator O-Ring Cup P1
138	240434401 Frigidaire Refrigerator Water Filter Cup Primary
139	240434301 Frigidaire Water Filter Housing
140	240545201 Frigidaire Refrigerator Elbow P-1
149	241528303 Frigidaire Refrigerator Seal
149	242204504 Frigidaire SHROUD AssemblyY
150	WCI 240394102
151	WCI 240376002
201	WCI 240598701
