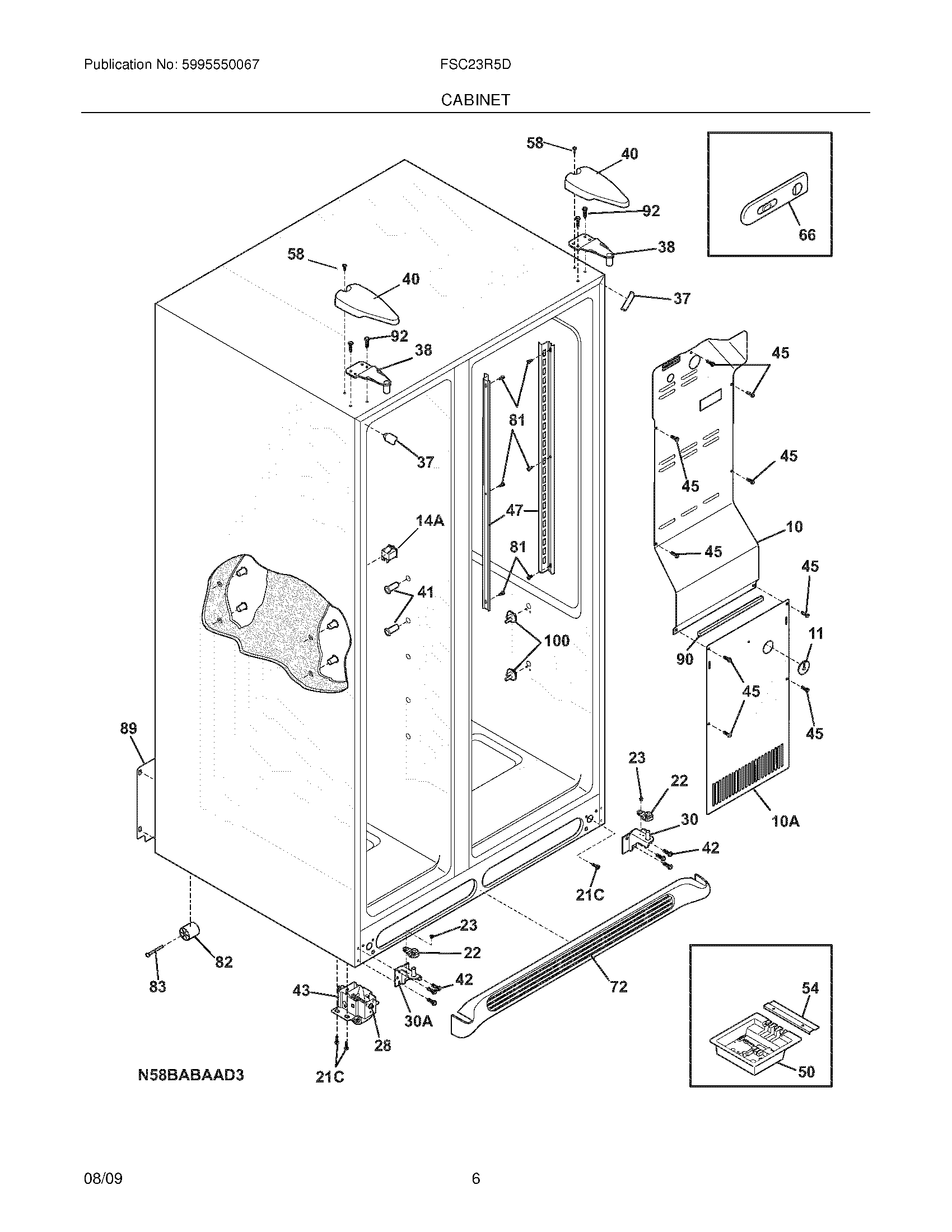

FSC23R5DBM 07 – CABINET

FSC23R5DBM 07 – CABINET

Written by

in

FSC23R5DBM 07 – CABINET

Products

PositionProduct
NIWCI 241524802
NIWCI 241591701
NI5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NIWCI 241532501
NI241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
10A241719711 Frigidaire Refrigerator Evaporator Coil Cover
10WCI 241509804
115303208309 Frigidaire Refrigerator Plug Hole
14A241547902 Frigidaire Refrigerator Light Switch
21C218252201 Frigidaire Refrigerator Screw
22241856502 Frigidaire Door Closer Plate
23WCI 240402702
30A242034604 Frigidaire Refrigerator Lower Hinge Bracket
30242034601 Frigidaire Refrigerator Bracket-Lower Hinge
37242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38240327207 Frigidaire Refrigerator Bracket Upper Hinge
40240327007 Frigidaire Refrigerator P-1 Upper Hinge Cover
41241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42240578902 Frigidaire Screw Mounting Hinge
435304499445 Frigidaire Refrigerator Roller Assembly
45241500303 Frigidaire Refrigerator Screw
47241513001 Frigidaire Refrigerator Shelf Mounting Channel
50WCI 241511111
54241532401 Frigidaire Refrigerator Channel
58218781101 Frigidaire Handle Screw
66WCI 241513601
72240324411 Frigidaire Grille Kickplate
815304455650 Frigidaire Refrigerator Screw
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
895304520905 Frigidaire Assembly Cover Refrigerator
90218249808 Frigidaire Refrigerator Seal-Coil Cover
92241710601 Frigidaire Refrigerator Screw
100CRISPER COVER SUPPORT
100241993001 Frigidaire Refrigerator Left Crisper Cover Support
