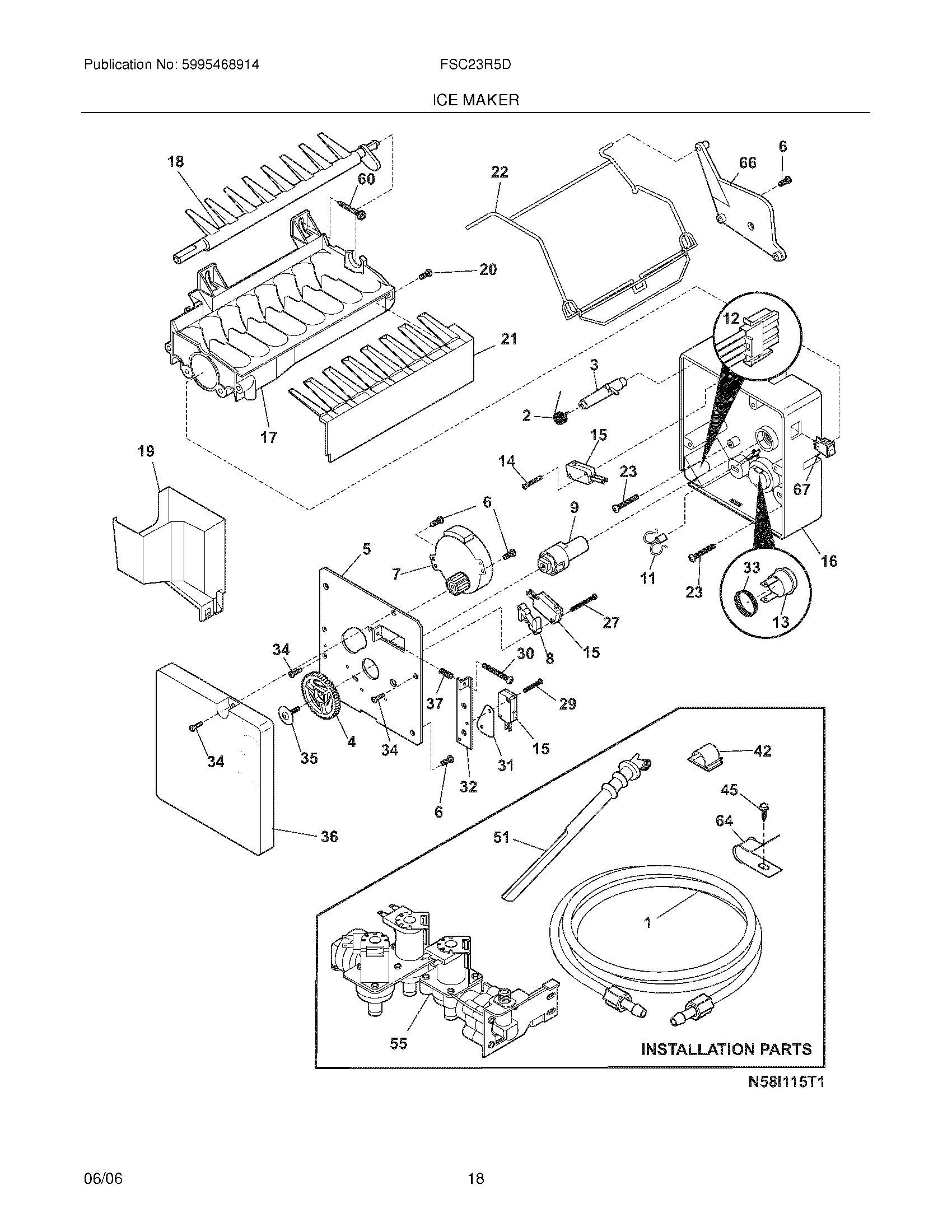

FSC23R5DW9 19 – ICE MAKER

Products

Position	Product
NI	218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NI	241583301 Frigidaire Refrigerator P-1 Deflector-Air
NI	240561701 Frigidaire Refrigerator Seal
NI	5303918344 Frigidaire Refrigerator Kit Ice Maker
NI	WCI 218515402
NI	WCI 5304455843
NI	WCI 241604801
NI	240363602 Frigidaire Refrigerator Shoulder Screw
NI	240542901 Frigidaire Water Valve Cap
NI	Adapter-water supply,nut & sleeve ,
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
NI	WCI 218976917
1	218976409 Frigidaire Refrigerator Water Tube
2	WCI 5304436616
3	WCI 5304436610
4	5304469403 Frigidaire Gear
5	WCI 5304436604
6	218359202 Frigidaire Refrigerator Screw
7	5304469407 Frigidaire Refrigerator Ice Maker Motor
8	SPACER-HOLD SWITCH
9	WCI 3206313
11	WCI 5304436618
12	WCI 5304436614
13	WCI 5304436613
14	WCI 5304455676
15	5304456667 Frigidaire Refrigerator Micro Switch
16	WCI 5304436609
18	WCI 5304436607
19	WCI 5304436606
20	5304455677 Frigidaire Screw
21	5304473031 Frigidaire Refrigerator Ice Stripper
22	WCI 5304436602
23	WCI 5304455678
27	WCI 5304455681
29	SCREW,4-24 X 0.750 ,(6)
30	WCI 5304455682
31	WCI 3206342
32	WCI 5304455683
33	WCI 5304436615
34	WCI 5304455684
35	WCI 5304455685
36	WCI 5304436605
42	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
51	241796406 Frigidaire Refrigerator Water Fill Tube
55	242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
60	218362501 Frigidaire Refrigerator Screw
64	5304455846 Frigidaire Refrigerator Clamp
66	WCI 5304436611
67	5304465210 Frigidaire Refrigerator Switch Kit
