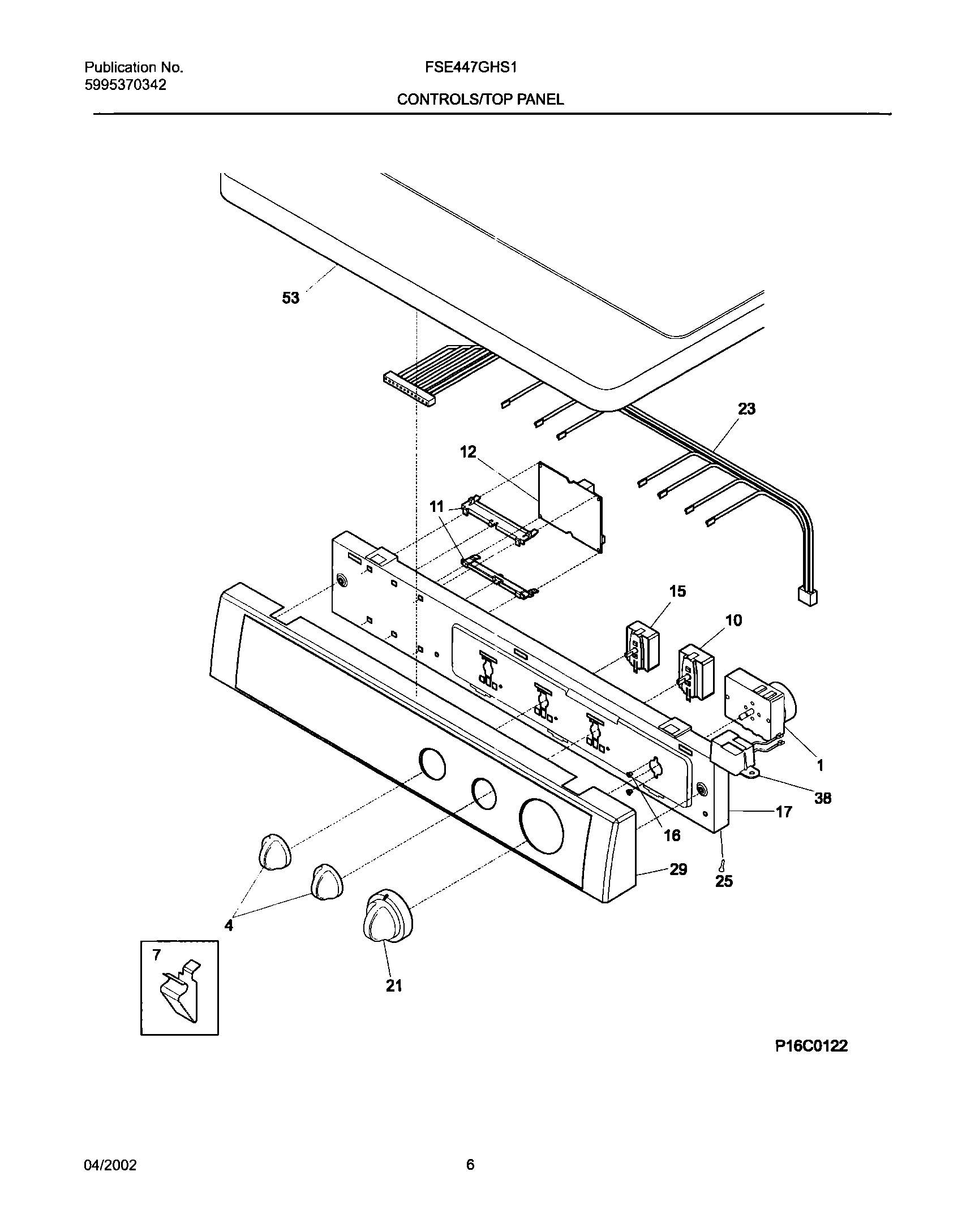

FSE447GHS1 07 – CONTROL PANEL

Products

Position	Product
NI	WIRING HARNESS, MAIN
1	131905500 Frigidaire Primary Timer
4	131965300 Frigidaire Rotary Dryer White Control Knob
7	3205821 Frigidaire Clip
10	134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11	BRACKET-CONTROL BOARD
12	CONTROL BOARD,MOISTURE SENSOR
15	WCI 131641900
16	218359202 Frigidaire Refrigerator Screw
17	BRKT-CONT MTG-STACK DRYER
21	DRYER TIMER KNOB WHITE
23	WCI 134008500
25	5303015671 Frigidaire Bracket Termination Screw
29	WCI 131666922
38	WCI 5303286537
53	PANEL-TOP WHITE
