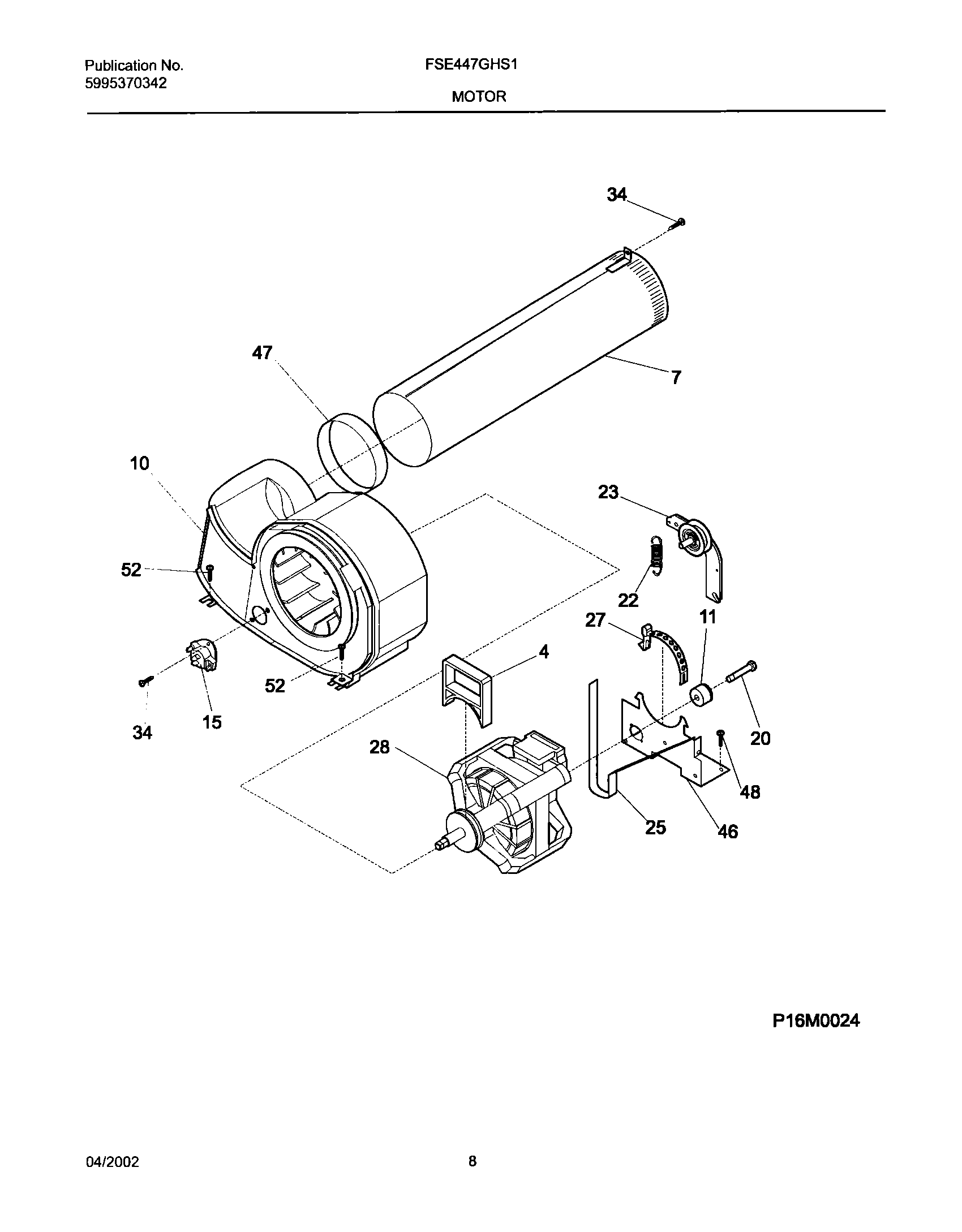

FSE447GHS1 09 – MOTOR,BLOWER

Products

Position	Product
NI	Tube,exhaust ,side/bottom ,Optional Kit
4	131435200 Frigidaire Fan Housing Lock
7	Tube,exhaust ,rear ,w/mtg bracket
10	ASMY-BLWR HSG/COV/W
11	131749800 Frigidaire Spacer
15	134048800 Frigidaire Thermostat Control P1
20	131017900 Frigidaire Screw
22	131601000 Frigidaire Idler Spring Assembly
23	131863007 Frigidaire Washer Idler Pulley Assembly
25	134503600 Frigidaire Dryer Belt
27	WCI 131419800
28	131560100 Frigidaire Dryer Drive Motor with Pulley
34	131243700 Frigidaire Screw
46	WCI 131601100
47	WCI 131633300
48	131168200 Frigidaire Dryer Screw
52	131202300 Frigidaire Screw
