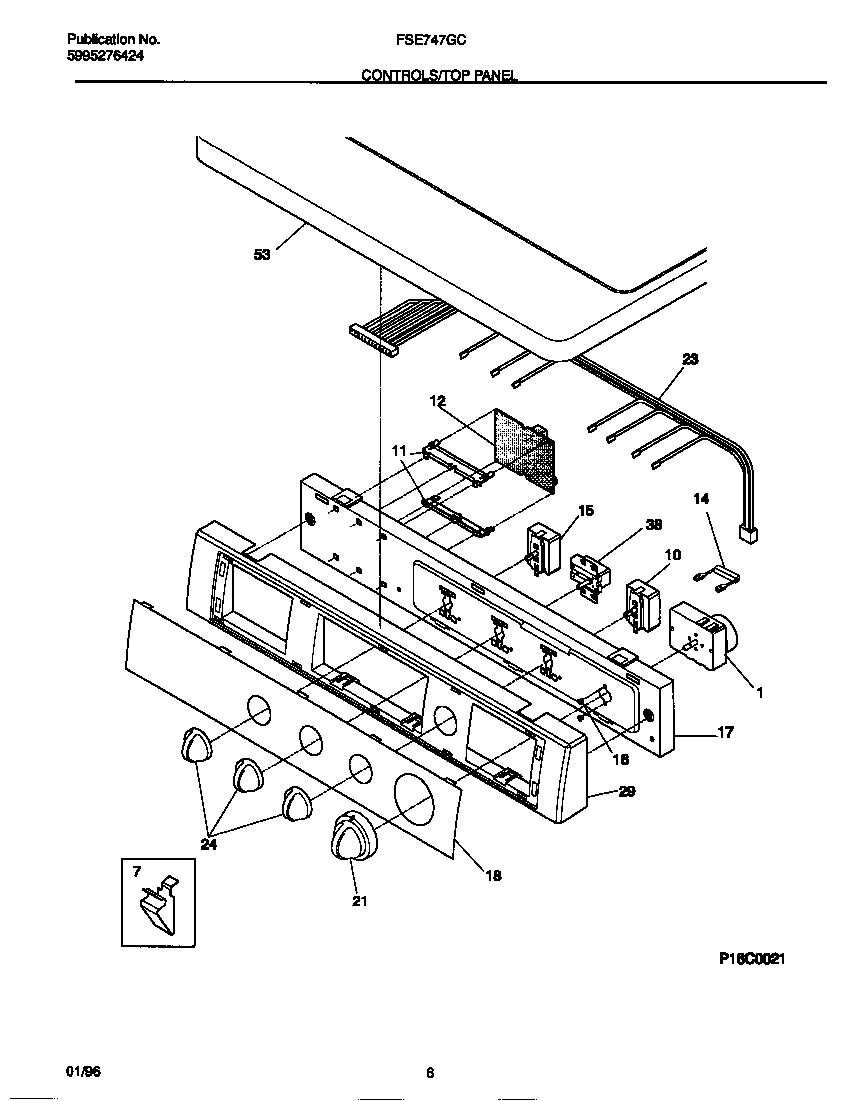

FSE747GCS0 04 – CONTROLS/TOP PANEL

FSE747GCS0 04 – CONTROLS/TOP PANEL

Written by

in

FSE747GCS0 04 – CONTROLS/TOP PANEL

Products

PositionProduct
*866805303303590 Frigidaire Dryer 4.0" Cable Tie
1131719100 Frigidaire Timer Assembly
73205821 Frigidaire Clip
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11WCI 131089800
12WCI 131489900
14RESISTOR-POWER, 4.4K
15WCI 131048100
16218359202 Frigidaire Refrigerator Screw
17WCI 131445901
18WCI 131448200
21WCI 131264900
23WCI 131428500
24WCI 131265000
29WCI 131366700
38WCI 131048300
53WCI 131391608
