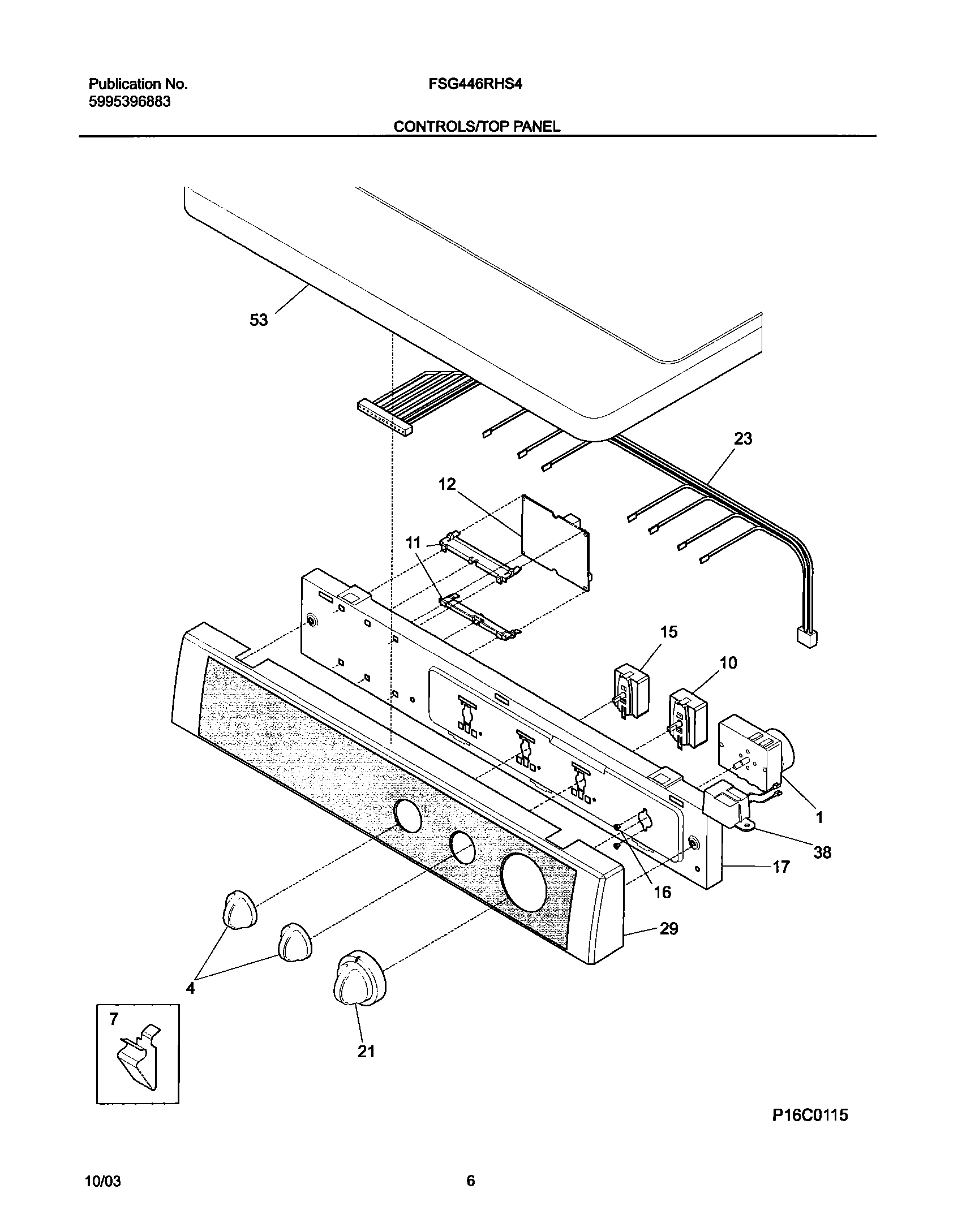

FSG446RHS4 07 – CONTROLS/TOP PANEL

FSG446RHS4 07 – CONTROLS/TOP PANEL

Written by

in

FSG446RHS4 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NIHARNESS-MAIN
1131905500 Frigidaire Primary Timer
4131965300 Frigidaire Rotary Dryer White Control Knob
73205821 Frigidaire Clip
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11BRACKET-CONTROL BOARD
12WCI 134216300
15WCI 131641900
16218359202 Frigidaire Refrigerator Screw
17BRKT-CONT MTG-STACK DRYER
21DRYER TIMER KNOB WHITE
23HARNESS HRJ GAS CONT
29WCI 131666917
38WCI 5303286537
53PANEL-TOP WHITE
