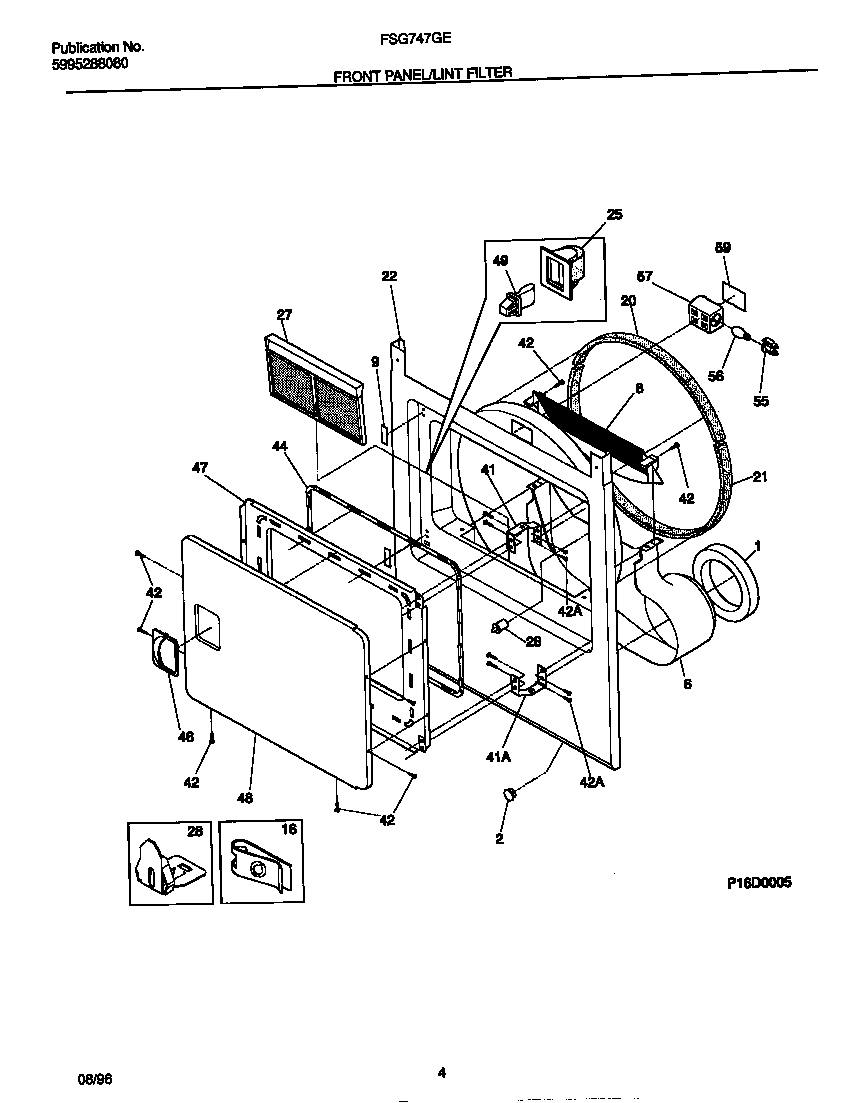

FSG747GES0 03 – FRONT PANEL/LINT FILTER

FSG747GES0 03 – FRONT PANEL/LINT FILTER

Written by

in

FSG747GES0 03 – FRONT PANEL/LINT FILTER

Products

PositionProduct
1134417000 Frigidaire Seal
2131397000 Frigidaire Plug
6WCI 5303320504
8WCI 131450400
9WCI 131418300
16WCI 131063700
205303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
215303283286 Frigidaire Drum Felt Seal Lower Front
22WCI 131363102
25131658800 Frigidaire Dryer Door Catch Repair Kit
26DOOR-SWITCH
27131450300 Frigidaire Dryer Lint Screen Filter
28CLIP GUIDE (4)
41HINGE-LOWER
41HINGE-UPPER
42134156200 Frigidaire Screw
42131302800 Frigidaire Drum Vane Screw
42134154100 Frigidaire Screw 10-32 x 0.375 Co
44137551901 Frigidaire Gasket
46131644700 Frigidaire Dryer Door Handle (White)
47WCI 131376704
48WCI 131376804
495303207102 Frigidaire Door Strike
55131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
