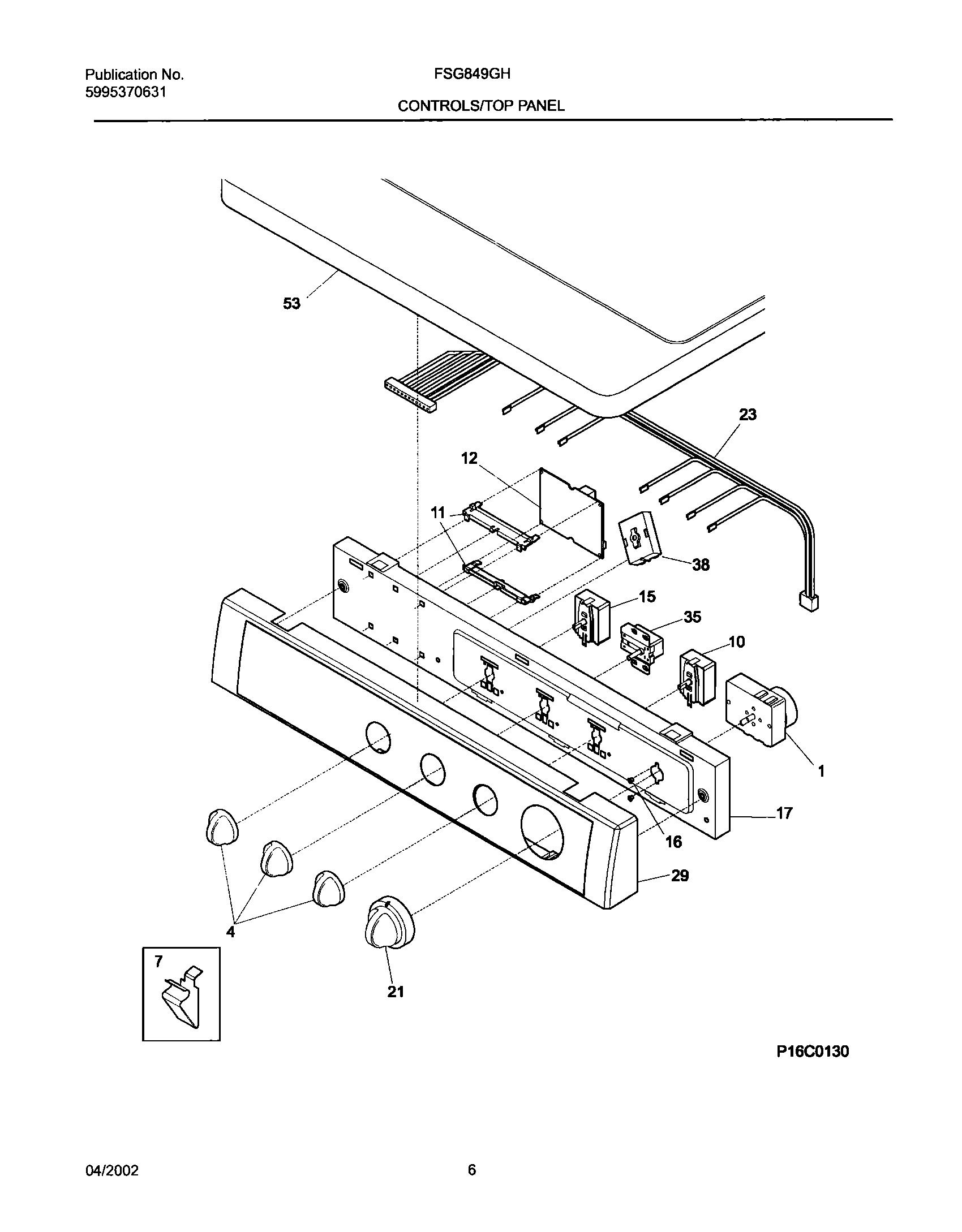

FSG849GHS1 07 – CONTROL PANEL

FSG849GHS1 07 – CONTROL PANEL

Written by

in

FSG849GHS1 07 – CONTROL PANEL

Products

PositionProduct
NIHARNESS-MAIN
1131930600 Frigidaire Dryer Timer P1 "T"
4131965300 Frigidaire Rotary Dryer White Control Knob
73205821 Frigidaire Clip
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11BRACKET-CONTROL BOARD
12CONTROL BOARD,MOISTURE SENSOR
15WCI 131641900
16218359202 Frigidaire Refrigerator Screw
17BRKT-CONT MTG-STACK DRYER
21DRYER TIMER KNOB WHITE
23WCI 134009900
29WCI 131666920
35Switch,2 position
38WCI 131959200
53PANEL-TOP WHITE
