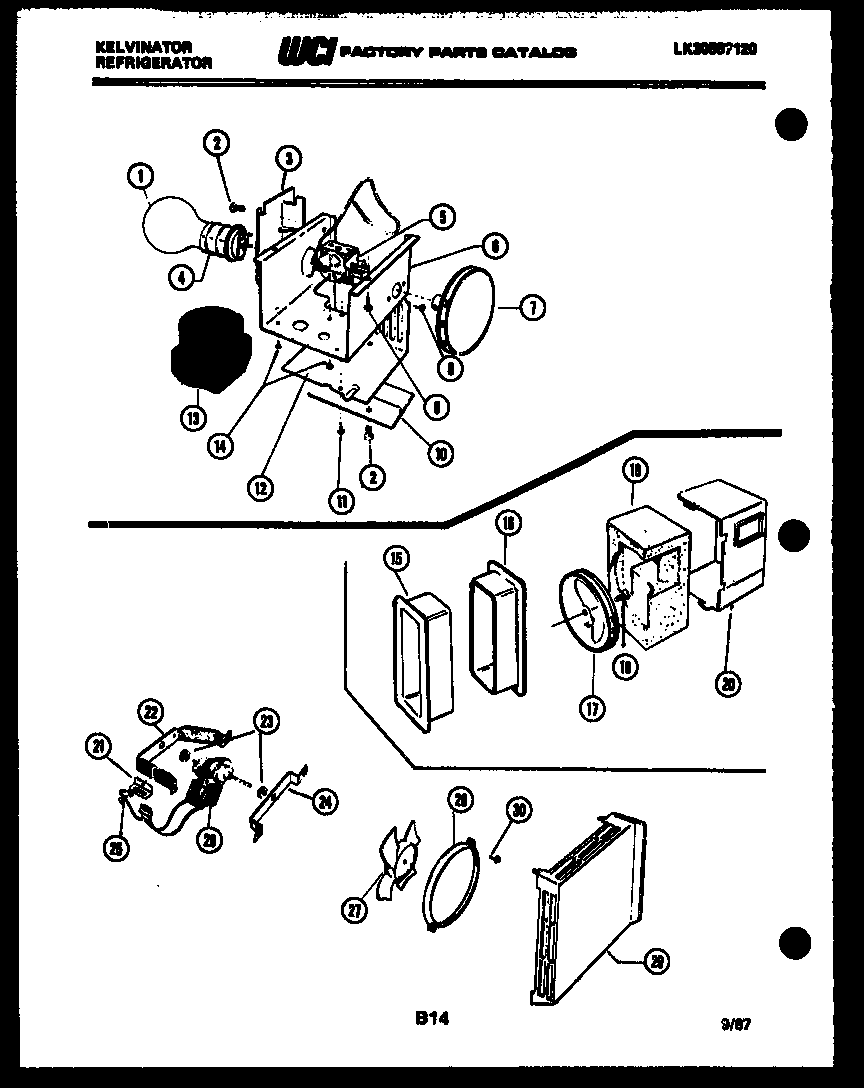

FSK190AN5T 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
1316538904 Frigidaire Oven Lamp Light
2WCI G165545
3WCI G165543
4SOCKET LIGHT
5WCI G162667-07
6WCI G164788
7WCI G164906-01
8WCI G107080
95304455852 Frigidaire Refrigerator Screw
10WCI G166068
115308000039 Frigidaire Refrigerator Screw
12COVER CONT. BRACKET
13215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
145304455649 Frigidaire Refrigerator Screw
15WCI G166802
16WCI G166803
16AWCI G167582
17KNOB, DAMPER CONT.
18WCI G185373
19WCI G164575
20WCI G164523
21WCI G164571
22WCI G185303
23G187559 Frigidaire Refrigerator Bushing
24WCI G185302
24AWCI G162703
255304455651 Frigidaire Refrigerator Screw
265300158289 Frigidaire Evaporator Fan Motor
275308000010 Frigidaire Refrigerator Evaporator Fan Blade
28RING, FAN ORIFICE
29WCI G164654-01
305304455650 Frigidaire Refrigerator Screw
