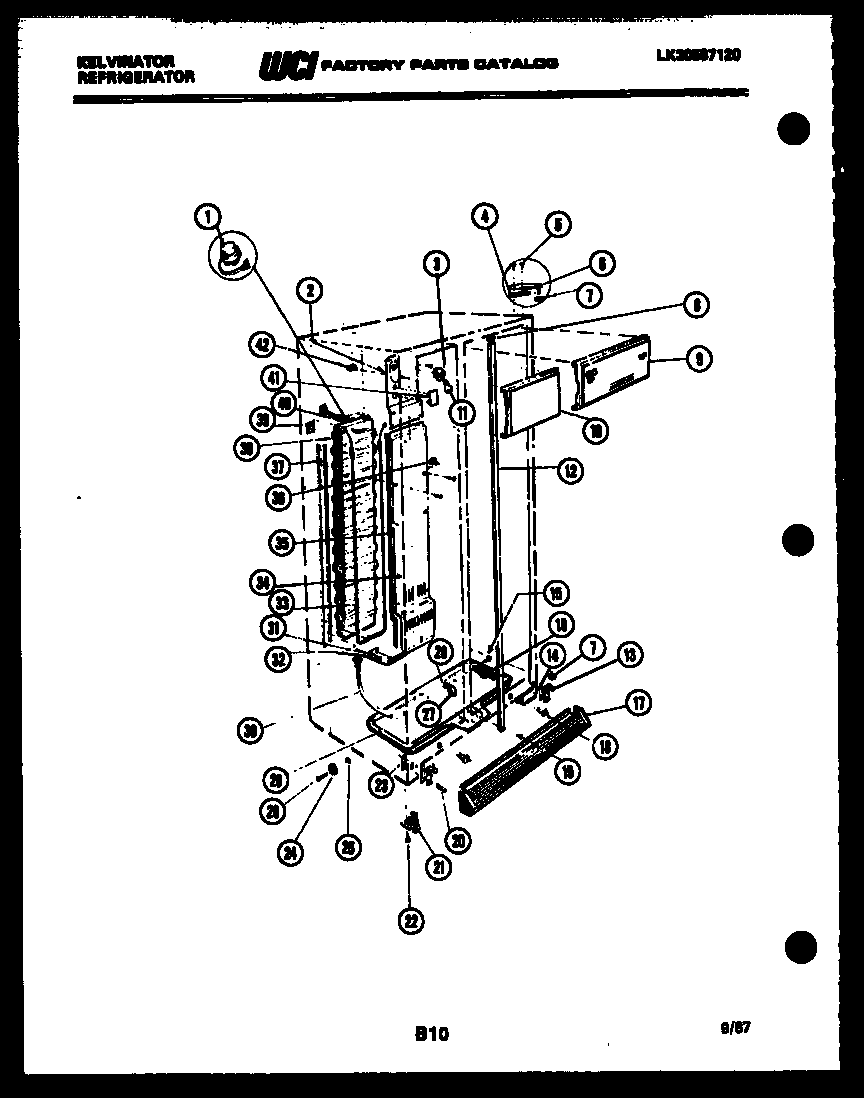

FSK190AN5W 04 – CABINET PARTS

Products

Position	Product
*90485	BUTTON, PLUG, LINER (2)
1	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
2	WCI G169481-01
3	218906802 Frigidaire Light Lamp Socket
4	WCI G183861
5	WCI G185566
6A	WCI G183716
6	HINGE-TOP RS
7	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
8	MULLION TRIM-WHITE
9	WCI G164419-28
10	WCI G164452-24
11	316538904 Frigidaire Oven Lamp Light
12	WCI G164643
13A	SCREW - 1/4 X 1 (2)
13	BRACKET-LOWER HINGE
14A	WCI G142361
14B	WCI G141673
14	SHIM, HINGE
16	WCI G164912-03
17	WCI G161905-01
18	5303289051 Frigidaire Refrigerator Light Switch
19	WCI G167125
20	WCI G162994
21	ROLLER ASSEMBLY - FRONT (2)
22	SCREW, MTG (2) (NON-ILLUSTRATED)
23	TAPPING, PLATE (2)
24	ROLLER (2)
25	NUT, DAMPER MOUNTING
26	WCI G162809
27	WCI G174733
27A	WCI G174734
28	WCI G163952
29	PAN, DEFROST
30	241957901 Frigidaire Refrigerator Tube-Drain
31	WCI G158022
32	5304455650 Frigidaire Refrigerator Screw
33	WCI G157191
34	COIL COVER-LOWER
35	WCI G174234-01
36	WCI G162703
37	WCI G165233
38	WCI G189612
39	WCI G169493
40	EXCHANGER-HEAT
41	WCI G165416-02
42	WCI G163669
