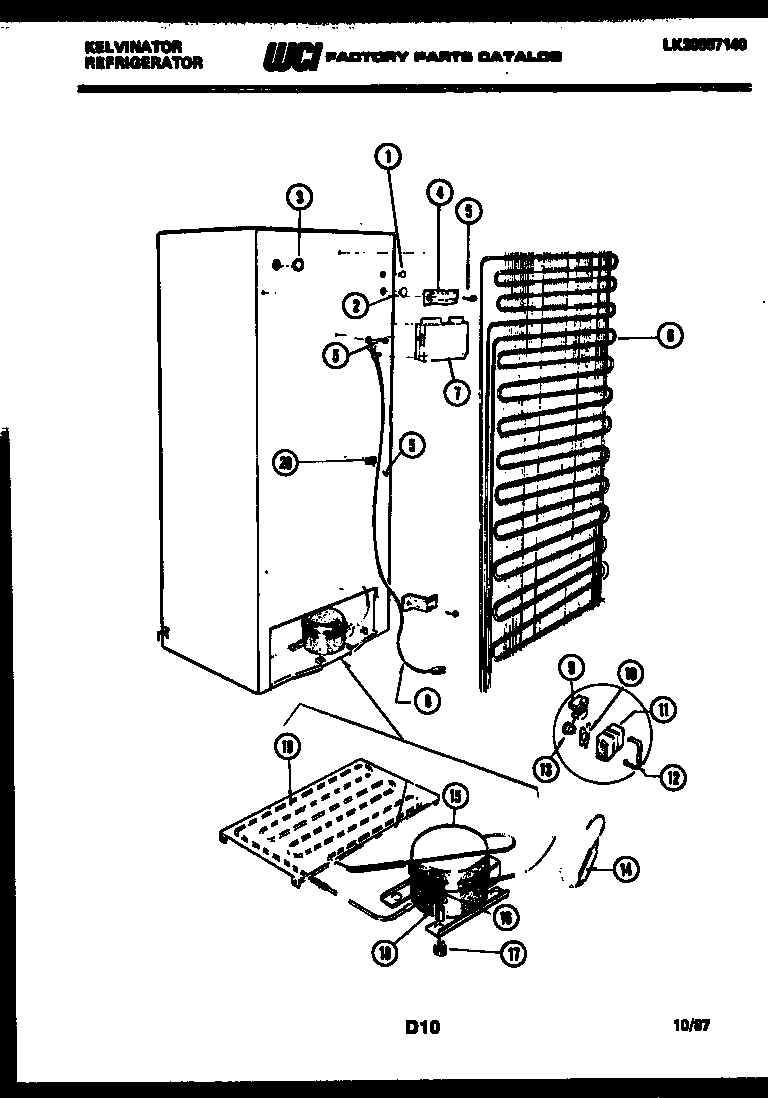

FSK190EN0T 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

FSK190EN0T 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FSK190EN0T 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*106415308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
1WCI G174734
2WCI G174733
3TUBE, INSULATION (2)
4BRACKET-CONDENSER MOUNTING (4)
55308000039 Frigidaire Refrigerator Screw
6WCI G188725
7WCI G183584
8CORD, SERVICE
9WCI G182225-04
10RETAINER, OVERLOAD
125303006412 Frigidaire Refrigerator Cover Mounting Strap
13WCI G188727
145303305677 Frigidaire Replacement Filter Dryer Filters
15COMPRESSOR
16SCREW – 1/4-20 (3) COMP. MTG.
17218513300 Frigidaire Refrigerator Compressor Mount Grommet
18SLEEVE COMP MTG (3)
19WCI G188724
205303001199 Frigidaire Refrigerator Wiring Harness Clamp
